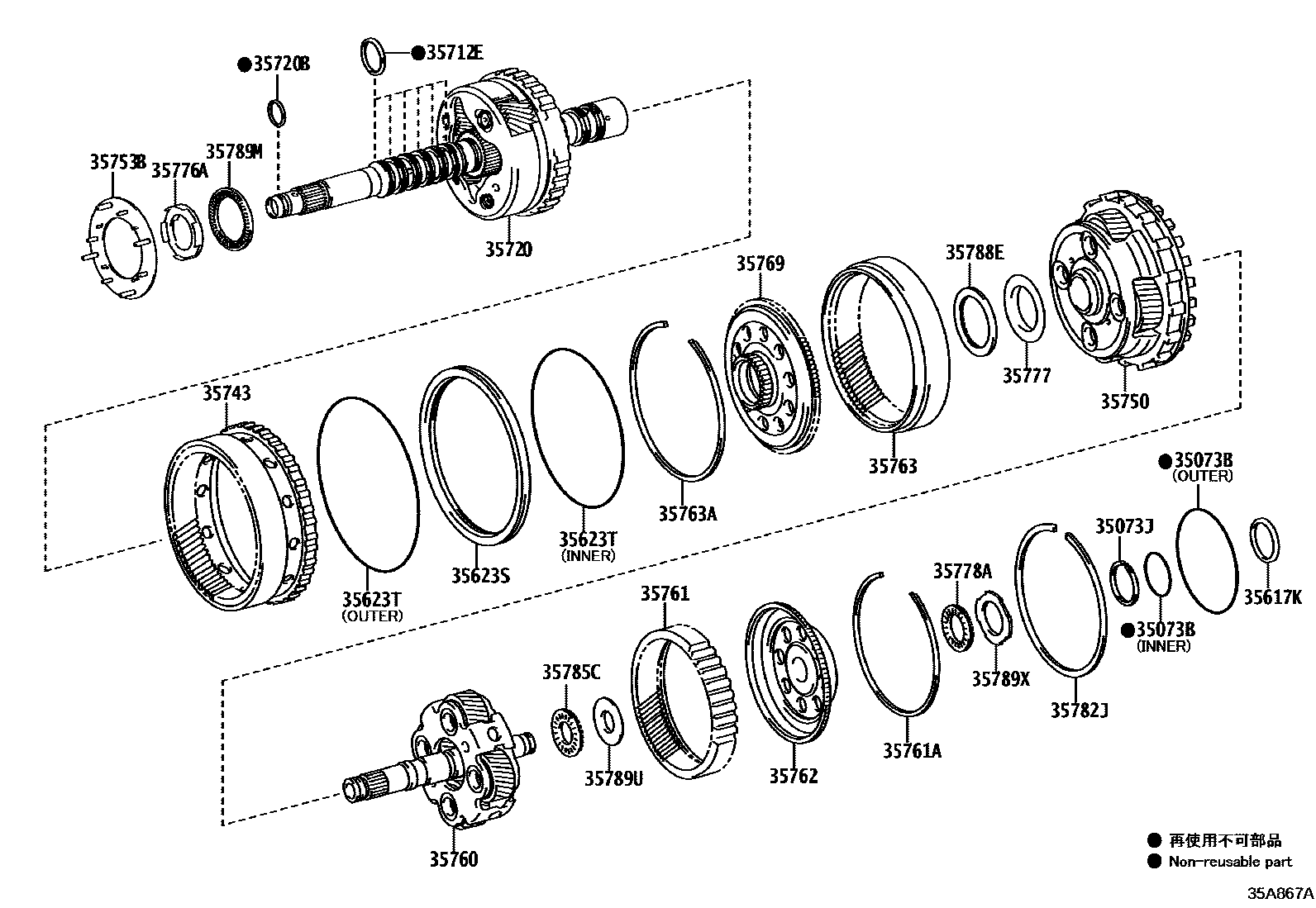

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1AJA0F 0002 1AC60F

35073BRING, O (FOR OUTPUT SHAFT)

main90301-41009iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

INNER

main90301-99263iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

OUTER

35073JRING, HOLE SNAP (FOR OUTPUT SHAFT)

main90520-43010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35617KRING, CLUTCH DRUM OIL SEAL

main35617-60030iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

35623SPISTON,1ST & REVERSE BRAKE

main35623-60070iFJA300,VJA300202104-202305

sub35623-60090

main35623-60090iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202305-202411

35623TRING, O(FOR 1ST & REVERSE BRAKE PISTON)

main90301-99261iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

INNER

main90301-99262iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

OUTER

35712ERING, INPUT SHAFT OIL SEAL

main35617-11090iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35720GEAR ASSY, FRONT PLANETARY

main35720-60110iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35720-71010iGRJ300202104-202411

35720BRING, SHAFT SNAP (FOR FRONT PLANETARY GEAR)

main35617-11030iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

35743GEAR, FRONT PLANETARY RING

main35743-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35743-71010iGRJ300202104-202411

35750GEAR ASSY, CENTER PLANETARY

main35750-60040iVJA300..5S..S;VJA300..A,G,V,Z;VJA300..S..(GCC,GEN)202104-202411

main35750-60050iFJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC202107-202411

main35750-71010iGRJ300202104-202411

35753BRECEIVER, FRONT PLANETARY OIL

main35753-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35760GEAR ASSY, REAR PLANETARY

main35760-60160iGRJ300202104-202411

main35760-60170iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35761GEAR, REAR PLANETARY RING

main35761-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35761-71010iGRJ300202104-202411

35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)

main90520-99206iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35762FLANGE, REAR PLANETARY RING GEAR

main35762-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35763GEAR, CENTER PLANETARY RING

main35763-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35763-71010iGRJ300202104-202411

35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)

main90520-99161iGRJ300202104-202411

main90520-99199iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35769FLANGE, PLANETARY RING GEAR, CTR

main35769-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35769-71010iGRJ300202104-202411

35776ARACE, THRUST BEARING, NO.6

main35776-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35777RACE, THRUST BEARING, NO.7

main35777-60010iGRJ300202104-202411

main35777-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35778RACE, THRUST BEARING, NO.8

main35778-60010iGRJ300202104-202411

35778ABEARING, THRUST NEEDLE ROLLER

main90374-30020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main90374-32010iGRJ300202104-202411

35782JRING, SNAP

main90520-99205iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35785CBEARING, THRUST NEEDLE ROLLER

main90374-22013iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main90374-55004iGRJ300202104-202411

35788EBEARING, THRUST NEEDLE ROLLER

main90374-39012iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

35789MBEARING, THRUST NEEDLE ROLLER

main90374-45004iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

main90374-63002iGRJ300202104-202411

35789URACE, THRUST BEARING

main35789-60170iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35789-71040iGRJ300202104-202411

35789XRACE, THRUST BEARING

main35789-60180iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

28 parts on this diagram · 2 diagrams in section
