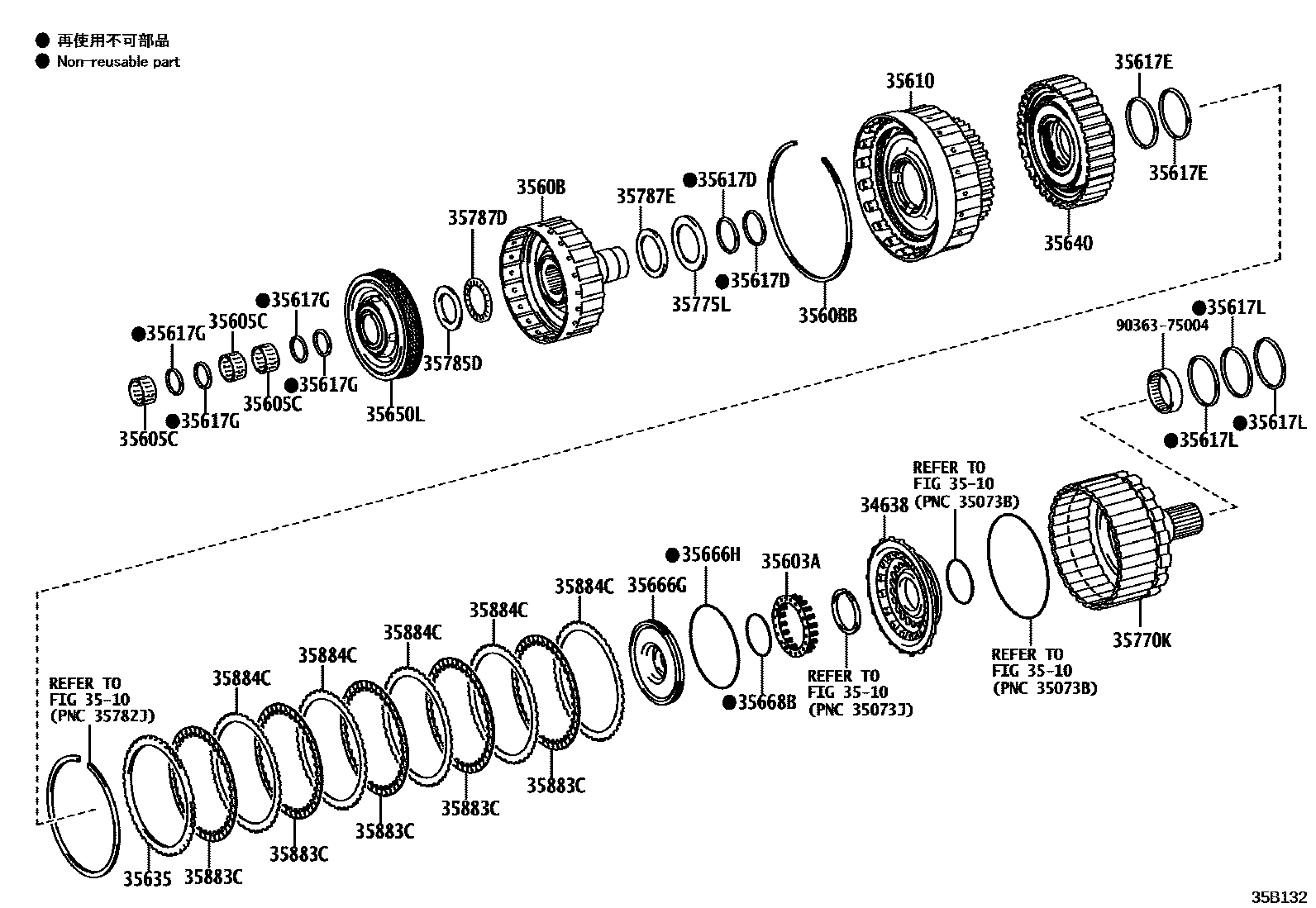

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1AJA0F 0002 1AC60F

34638PISTON, C-4 CLUTCH

main34638-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

3510

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-60020iGRJ300202104-202411

main35603-60050iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

35605CBEARING, NEEDLE ROLLER

main90364-32027iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

3560BDRUM SUB-ASSY, C-2

main3560B-60010iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

3560BBRING, HOLE SNAP(FOR C-2 DRUM)

main90520-99200iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35610CLUTCH ASSY, FRONT MULTIPLE DISC

main35610-60190iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35617DRING, CLUTCH DRUM OIL SEAL

main35617-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35617ERING, CLUTCH DRUM OIL SEAL, NO.2

main35617-60080iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35617GRING, CLUTCH DRUM OIL SEAL

main35617-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

main35617-71010iGRJ300202104-202411

35617LRING, CLUTCH DRUM OIL SEAL, NO.3

main35617-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35635FLANGE, FORWARD CLUTCH

main35635-60510iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

T=4.3

main35635-60520iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

T=4.4

main35635-60530iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

T=4.5

main35635-60540iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

T=4.6

main35635-60550iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

T=4.7

main35635-60560iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

T=4.8

main35635-60570iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

T=4.9

main35635-60580iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

T=5.0

main35635-60590iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

T=5.1

main35635-71010iGRJ300202104-202411

T=3.0

main35635-71020iGRJ300202104-202411

T=3.1

main35635-71030iGRJ300202104-202411

T=3.2

main35635-71040iGRJ300202104-202411

T=3.3

main35635-71050iGRJ300202104-202411

T=3.4

main35635-71060iGRJ300202104-202411

T=3.5

main35635-71070iGRJ300202104-202411

T=3.6

main35635-71080iGRJ300202104-202411

T=3.7

main35635-71090iGRJ300202104-202411

T=3.8

main35635-71100iGRJ300202104-202411

T=3.9

main35635-71110iGRJ300202104-202411

T=4.0

main35635-71120iGRJ300202104-202411

T=4.1

main35635-71130iGRJ300202104-202411

T=4.2

35640CLUTCH ASSY, C-3

main35640-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35650LCLUTCH ASSY, C-2

main35650-60190iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35666GBALANCER, C-4 CLUTCH

main35666-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35666HRING, O(FOR C-4 CLUTCH BALANCER)

main90301-99264iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35668BALANCER, CLUTCH, NO.1

main35668-71010iGRJ300202104-202411

35668BRING, O(FOR CLUTCH BALANCER)

main90301-61007iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

main90301-99204iGRJ300202104-202411

35770KSHAFT ASSY, OUTPUT

main35770-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35775LRACE, THRUST BEARING, NO.5

main35775-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35785DRACE, THRUST BEARING, NO.4

main35785-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35787DBEARING, THRUST NEEDLE ROLLER

main90374-38005iGRJ300202104-202411

main90374-47008iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35787EBEARING, THRUST NEEDLE ROLLER

main90374-50004iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35883CDISC, CLUTCH, NO.4

main35883-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35884CPLATE, CLUTCH, NO.4

main35884-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

9036375004

main90363-75004

26 parts on this diagram · 2 diagrams in section
