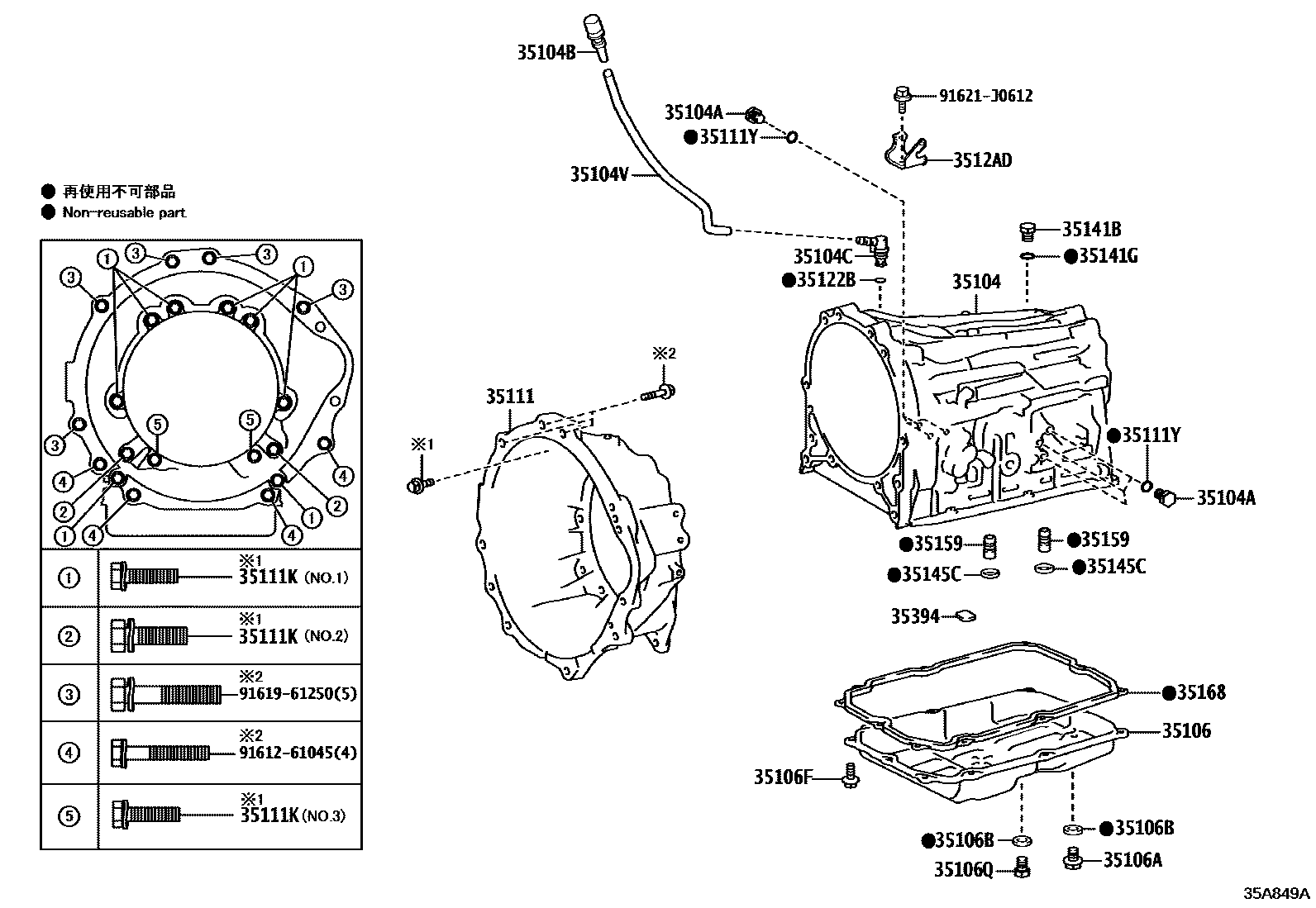

TRANSMISSION CASE & OIL PAN (ATM)
35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION
SAUDI ARABIA SPEC&FRONT BUMPER-AERO(BLACK)
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680&FRONT BUMPER-AERO(BLACK)
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT(OBD & EGR) SAUDI ARABIA SPEC
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT(OBD & EGR) SAUDI ARABIA SPEC&FRONT BUMPER-AERO(BLACK)
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITHOUT(OBD) SAUDI ARABIA SPEC
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS),*680
35104APLUG, AUTOMATIC TRANSMISSION CASE
main90341-08001iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411
35104BPLUG, BREATHER, NO.1 (ATM)
main90930-03211iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
35104CPLUG, BREATHER, NO.2 (ATM)
main90930-03220iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
35104VHOSE (FOR BREATHER PLUG)
35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111HOUSING, AUTOMATIC TRANSMISSION
35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
*10-1.5PX35-30,NO.1:REFER ILLUST.
*10-1.50PX35-29.3,NO.3:REFER ILLUST.
*12-1.75PX38-30,NO.2:REFER ILLUST.
35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
main90301-06196iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411
35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)
3512ADBRACKET, TRANSMISSION BREATHER
35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)
35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)
main90301-11030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411
35145CGASKET, TRANSAXLE CASE
main35145-11020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411
35159GASKET, BRAKE DRUM
main35159-60040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411
35168GASKET, AUTOMATIC TRANSMISSION OIL PAN
main35168-60040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
main35394-30011iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
9161261045
main91612-61045
9161961250
main91619-61250
91621J0612
main91621-J0612
24 parts on this diagram · 3 diagrams in section
