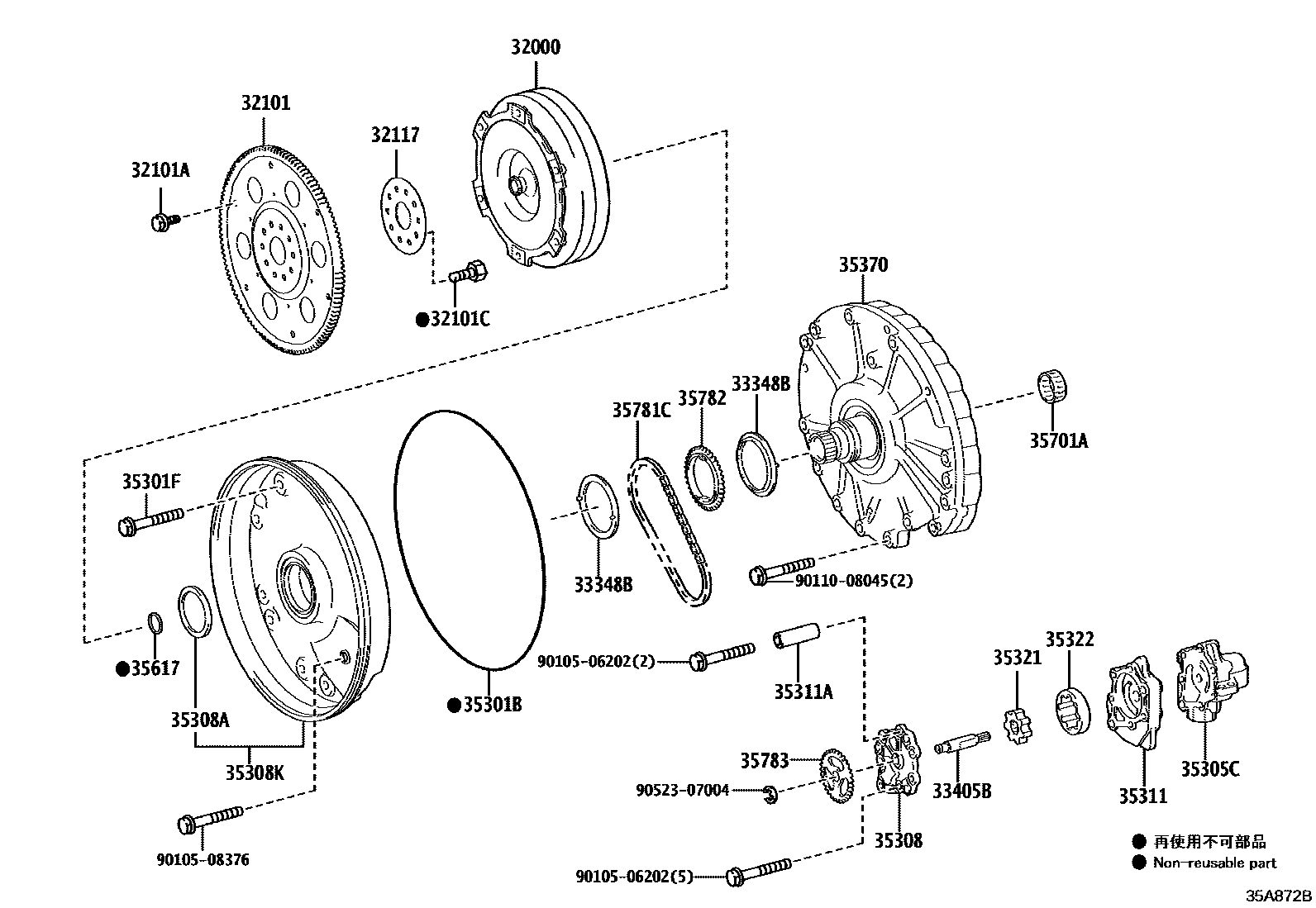

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AJA0F 0002 1AC60F

32000CONVERTER ASSY, TORQUE

main32000-60380iVJA300..5S..S;VJA300..A,G,V,Z;VJA300..S..(GCC,GEN)202104-202411

main32000-60390iFJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC202107-202411

main32000-71060iGRJ300202104-202411

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-60060iGRJ300202104-202411

main32101-60080iFJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC202107-202411

main32101-60110iVJA300..5S..S;VJA300..A,G,V,Z;VJA300..S..(GCC,GEN)202104-202411

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10551iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

*10-1.25PX16-12.9,BLACK

main90105-10552iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

*10-1.25PX16-13,SILVER WHITE

main90119-09026iGRJ300202104-202411

*9-1.25PX12.8-9,BLACK

main90119-09027iGRJ300202104-202411

*9-1.25PX12.8-8.8,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10543iGRJ300202104-202411

*10-1.25PX22-15

main90105-14184iFJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC202107-202411

*14-1.5PX42-30

main90910-02129iVJA300..7S..S..EUR202104-202411

*10-1.25PX23-16,(J)

main90910-A2002iVJA300..5S..S;VJA300..A,G,V,Z;VJA300..S..(GCC,GEN)202104-202411

*10-1.25PX23-16,(L)

32117SPACER, DRIVE PLATE, REAR

main32117-50020iVJA300..5S..S;VJA300..A,G,V,Z;VJA300..S..(GCC,GEN)202104-202411

main32117-60060iGRJ300202104-202411

main32117-60070iFJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC202107-202411

33348BWASHER, GEAR THRUST

main33348-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

33405BSHAFT SUB-ASSY, OIL PUMP DRIVE

main35371-60110iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-71010iGRJ300202104-202411

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iGRJ300202104-202411

main90301-99228iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iGRJ300202104-202411

*8-1.25PX35-35

main90105-08233iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

*8-1.25PX42-30

35305CCOVER SUB-ASSY, REAR OIL PUMP

main35305-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35308COVER SUB-ASSY, FRONT OIL PUMP

main35308-60110iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35308ASEAL, OIL (FOR FRONT OIL PUMP COVER)

main90311-60002iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35308KCOVER SUB-ASSY, FRONT OIL PUMP, NO.2

main35308-60120iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35311BODY, FRONT OIL PUMP

main35311-60060iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35311APIN, RING

main90253-09004iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35321GEAR, FRONT OIL PUMP DRIVE

main35321-60210iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104

T=13.635-13.640

main35321-60220iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104

T=13.638-13.643

main35321-60230iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104

T=13.641-13.646

main35321-71010iGRJ300202104-202411

T=9.977-9.983

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-60210iVJA300;FJA300..ARL,GCC,GEN;FJA300..(A,S,V,Z)..EUR202104

T=13.635-13.640

main35322-60220iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104

T=13.638-13.643

main35322-60230iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104

T=13.641-13.646

main35322-71010iGRJ300202104-202411

T=9.977-9.983

35370SHAFT ASSY, STATOR

main35370-60050iVJA300202104-202302

sub35370-60080

main35370-60060iFJA300202107-202302

sub35370-60090

main35370-60080iVJA300..5S..S;VJA300..A,G,V,Z;VJA300..S..(GCC,GEN)202303-202411

main35370-60090iFJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC202303-202411

main35370-71010iGRJ300202104-202411

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030iGRJ300202104-202411

main35617-60040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90364-28030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35781CCHAIN, TRANSMISSION DRIVE

main35781-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35782SPROCKET, DRIVE

main35782-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

35783SPROCKET, DRIVEN

main35783-60010iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;FJA300..ARL,EUR,GCC;VJA300..S..(GCC,GEN)202104-202411

9010506202

main90105-06202

9010508376

main90105-08376

9011008045

main90110-08045

9052307004

main90523-07004

28 parts on this diagram · 2 diagrams in section
