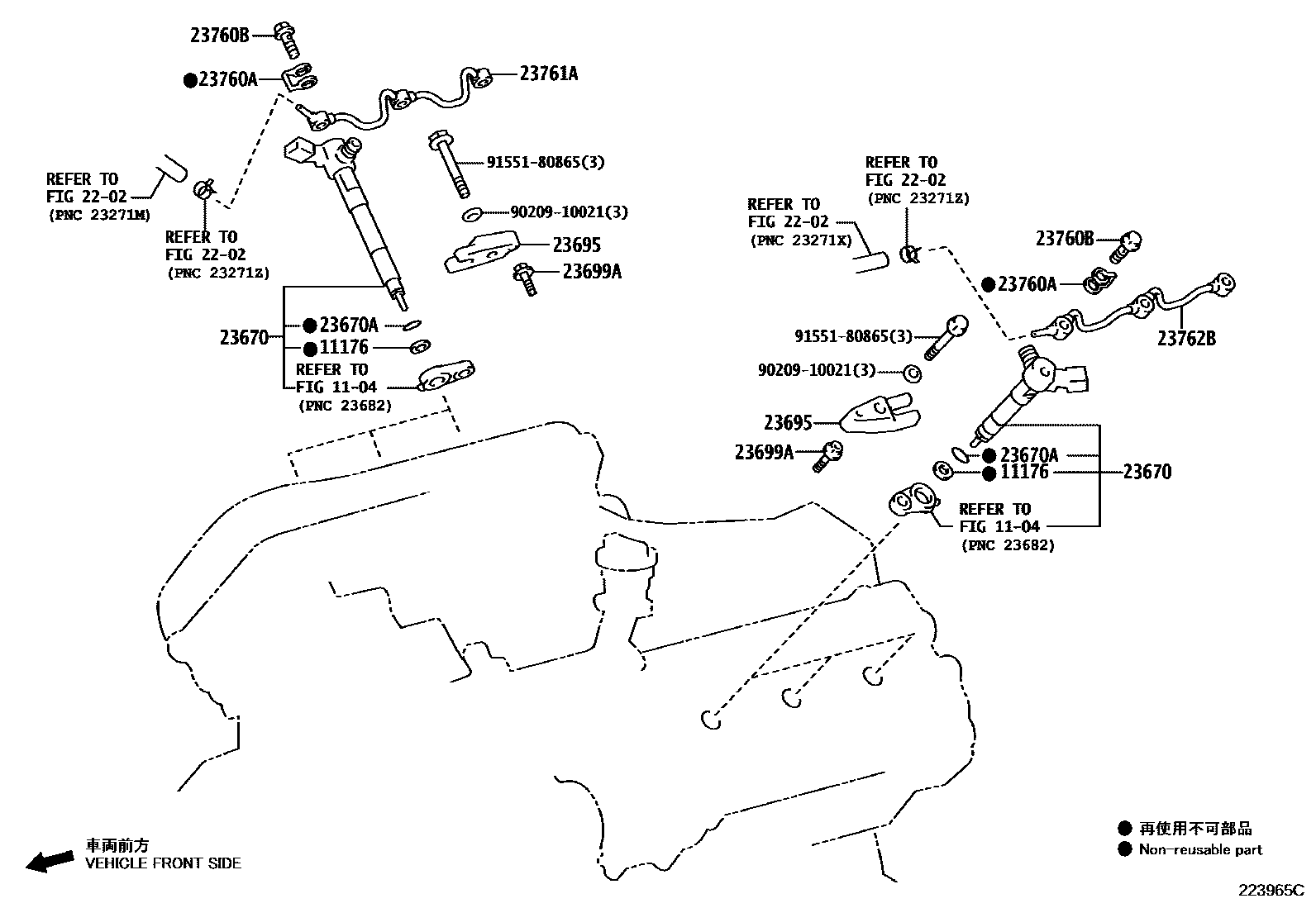

INJECTION NOZZLE
1104
11176SEAT, INJECTION NOZZLE
2202
23670INJECTOR ASSY
sub23670-59066
main23670-59066iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202307-202411
23670ARING, O(FOR INJECTOR ASSY)
main96721-19017iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23695CLAMP, NOZZLE HOLDER, NO.1
main23695-11010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23699ASEAT, NOZZLE HOLDER CLAMP
main23699-11010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23760AGASKET
main90430-06013iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)
main90401-06002iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23761APIPE, NOZZLE LEAKAGE, NO.1
main23761-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
23762BPIPE, NOZZLE LEAKAGE, NO.2
main23762-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
9020910021
main90209-10021
9155180865
main91551-80865
13 parts on this diagram · 2 diagrams in section
