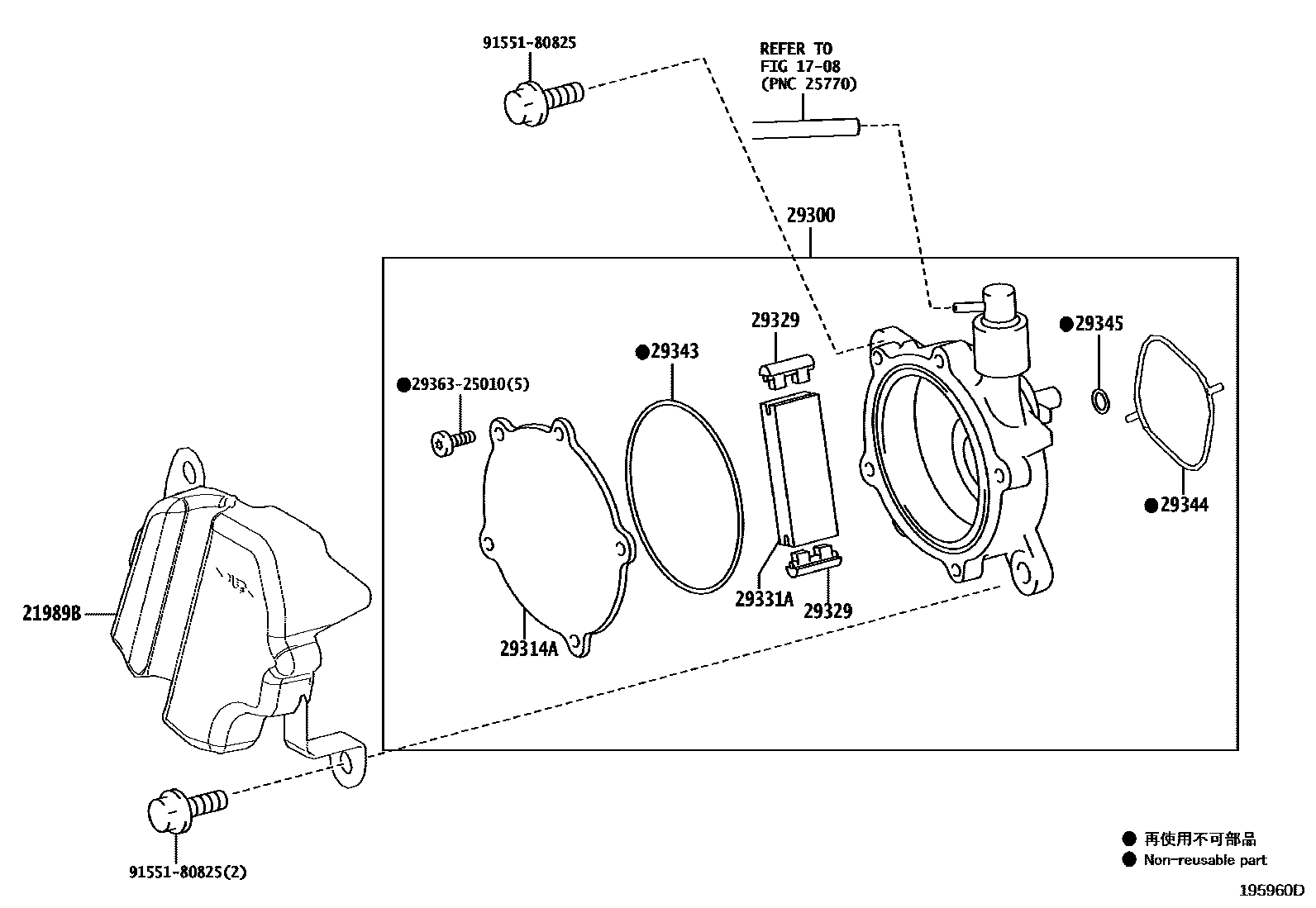

VACUUM PUMP
1708
21989BINSULATOR, PLATE
main21989-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥490202107-202411
29300PUMP ASSY, VACUUM
main29300-52040iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥12,800202107-202411
29314ACOVER, END
main29314-52040iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥1,690202107-202411
29329CAP, VACUUM PUMP VANE
main29329-37010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥200202107-202411
29331AVANE, VACUUM PUMP
main29331-36011iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥890202107-202411
29343RING, O VACUUM PUMP, NO.1
main29343-36010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥160202107-202411
29344RING, O VACUUM PUMP, NO.2
main29344-22011iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥130202107-202411
29345RING, O VACUUM PUMP, NO.3
main29345-22011iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC¥130202107-202411
2936325010SCREW, HOLLOW VACUUM PUMP
9155180825
11 parts on this diagram · 1 diagram in section
