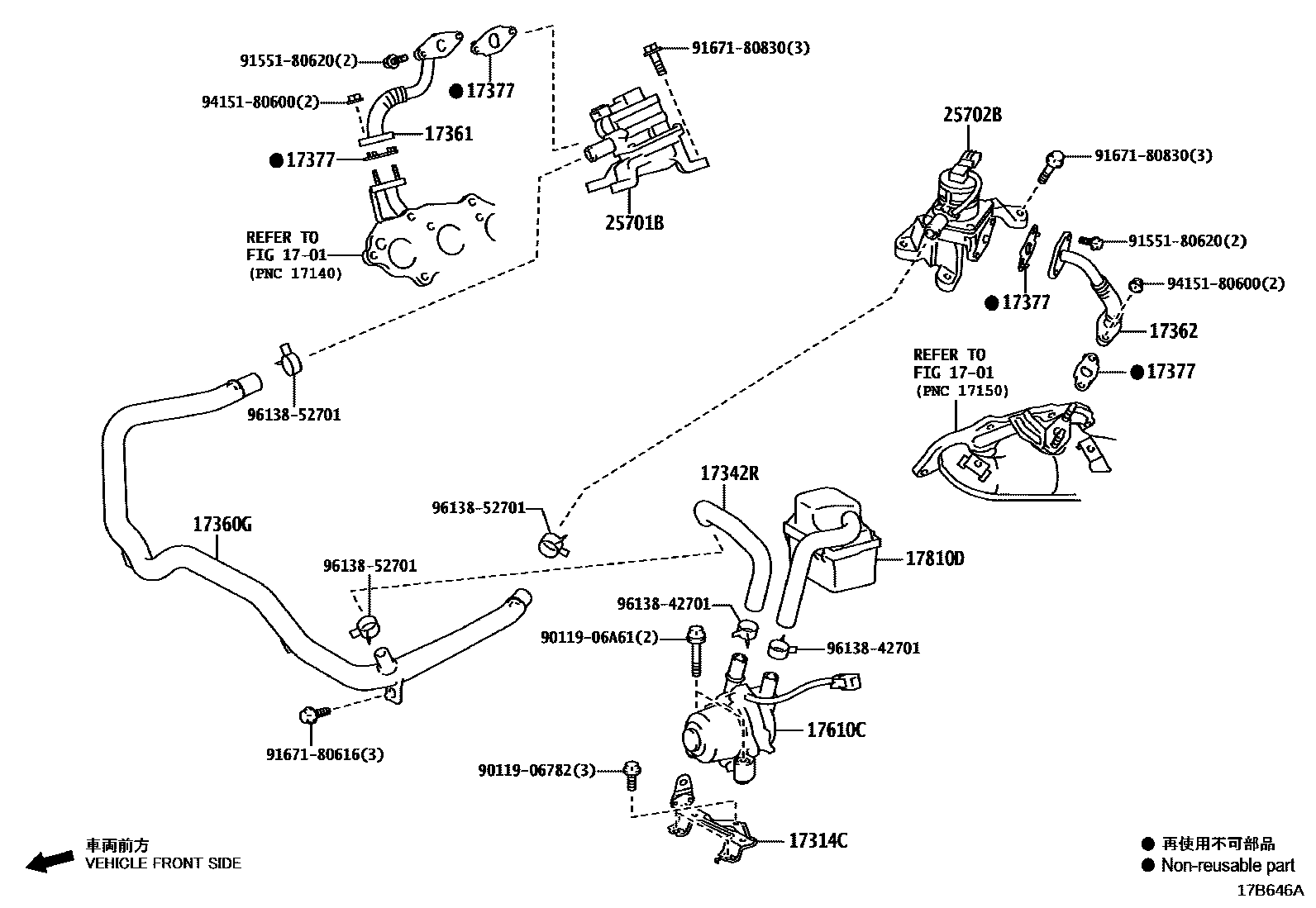

MANIFOLD AIR INJECTION SYSTEM

1701

17314CBRACKET, AIR PUMP

17342RHOSE, AIR, NO.2

17360GTUBE ASSY, AIR

17361TUBE, AIR

main17361-31030

17362TUBE, AIR, NO.2

main17362-31020

17377GASKET, AIR TUBE, NO.2

main17377-38010

17610CPUMP ASSY, AIR

17810DFILTER ASSY, AIR

25701BVALVE SET, EMISSION CONTROL, NO.1

25702BVALVE SET, EMISSION CONTROL, NO.2

9011906782

main90119-06782

9011906A61

main90119-06A61

9155180620

main91551-80620

9167180616

main91671-80616

9167180830

main91671-80830

9415180600

main94151-80600

9613842701

main96138-42701

9613852701

main96138-52701

19 parts on this diagram · 1 diagram in section
