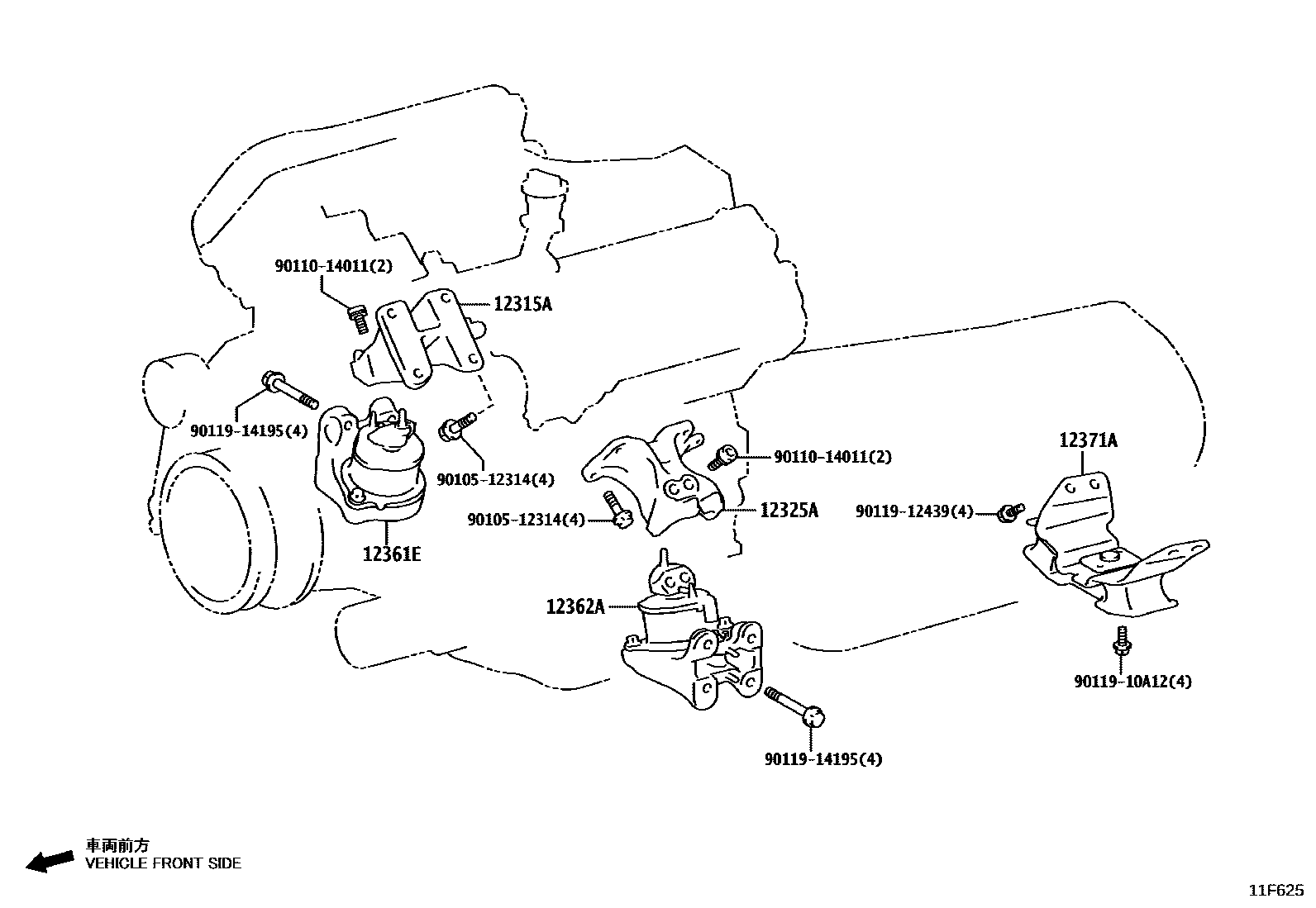

MOUNTING
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
main12315-70160iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
main12315-52041iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
main12325-62040iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202410-202411
12361EINSULATOR, ENGINE MOUNTING, FRONT RH
sub12361-31553
sub12361-52043
main12361-52043iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202110-202411
sub12361-70293
main12361-70340iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202410-202411
12362AINSULATOR, ENGINE MOUNTING, FRONT LH
sub12362-31113
sub12362-52013
main12362-52013iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202110-202411
sub12362-70023
main12362-70040iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202410-202411
12371AINSULATOR, ENGINE MOUNTING, REAR
main12371-70140iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202410-202411
9010512314
main90105-12314
9011014011
main90110-14011
9011910A12
main90119-10A12
9011912439
main90119-12439
9011914195
main90119-14195
11 parts on this diagram · 4 diagrams in section
