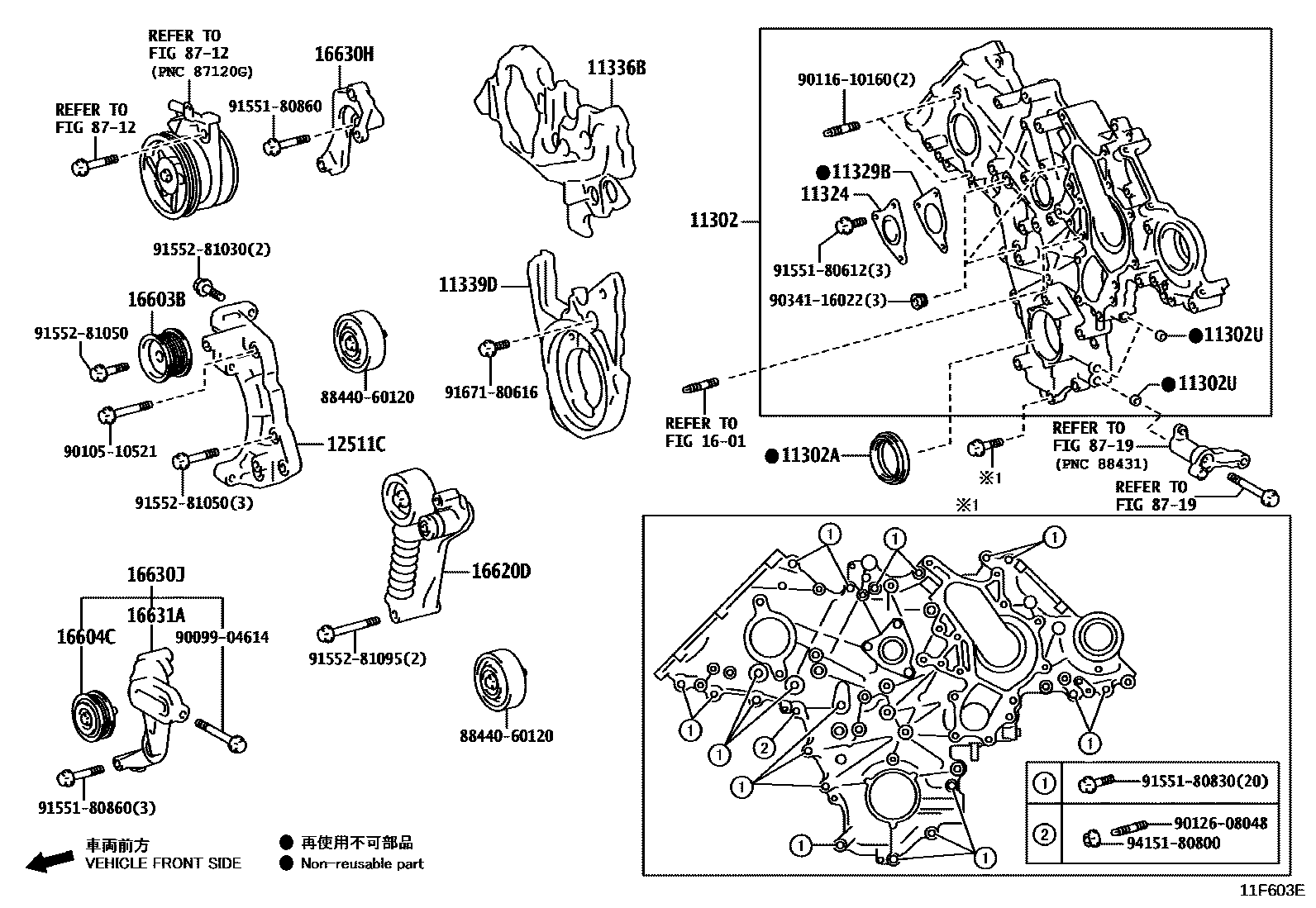

TIMING GEAR COVER & REAR END PLATE

0001 1W(VISCOUS HEATER) 0002 1W/O(VISCOUS HEATER) 0003 1 0004 1 0005 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-52020iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

main11310-31030i1GRFE..GRJ300202104-202411

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-51014iF33AFTV..FJA300..5S..Z..GEN202107

11302UPIN, RING

main90253-11006×3iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

11324PLATE, TIMING CHAIN COVER

main11324-11010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

main11324-31020i1GRFE..GRJ300202104-202411

main11324-70030iV35AFTS..VJA300..7S..S..EUR202104

11329BGASKET, TIMING CHAIN COVER, NO.2

main11329-11020iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

11336BINSULATOR, TIMING CHAIN COVER

main11336-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

11339DINSULATOR, TIMING CHAIN COVER, NO.2

main11339-52010iF33AFTV..FJA300..5S..Z..GEN202107

12511CBRACKET, ALTERNATOR

main12501-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

1601

16603BPULLEY SUB-ASSY, IDLER

main16603-51010iF33AFTV..FJA300..5S..Z..GEN202107

main16603-70030iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202411

16604CPULLEY SUB-ASSY, IDLER, NO.2

main88440-60090iF33AFTV..FJA300..(S,Z)..GCC202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-52010iF33AFTV..FJA300..5S..Z..GEN202107

main16620-70030iV35AFTS..VJA300..7S..S..EUR202104

16630HPULLEY ASSY, IDLER

main88420-60370iF33AFTV..FJA300..EUR202107-202411

16630JPULLEY ASSY, IDLER, NO.2

main88420-60380iF33AFTV..FJA300..(S,Z)..GCC202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

16631ABRACKET, IDLER PULLEY

main88444-60170iF33AFTV..FJA300..(S,Z)..GCC202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

8712

8719

8844060120RELAY ASSY, COOLER (FOR IGNITION SWITCH)

main88440-60120

9009904614

main90099-04614

9010510521

main90105-10521

9011610160

main90116-10160

9012608048

main90126-08048

9034116022

main90341-16022

9155180612

main91551-80612

9155180830

main91551-80830

9155180860

main91551-80860

9155281030

main91552-81030

9155281050

main91552-81050

9155281095

main91552-81095

9167180616

main91671-80616

9415180800

main94151-80800

31 parts on this diagram · 5 diagrams in section
