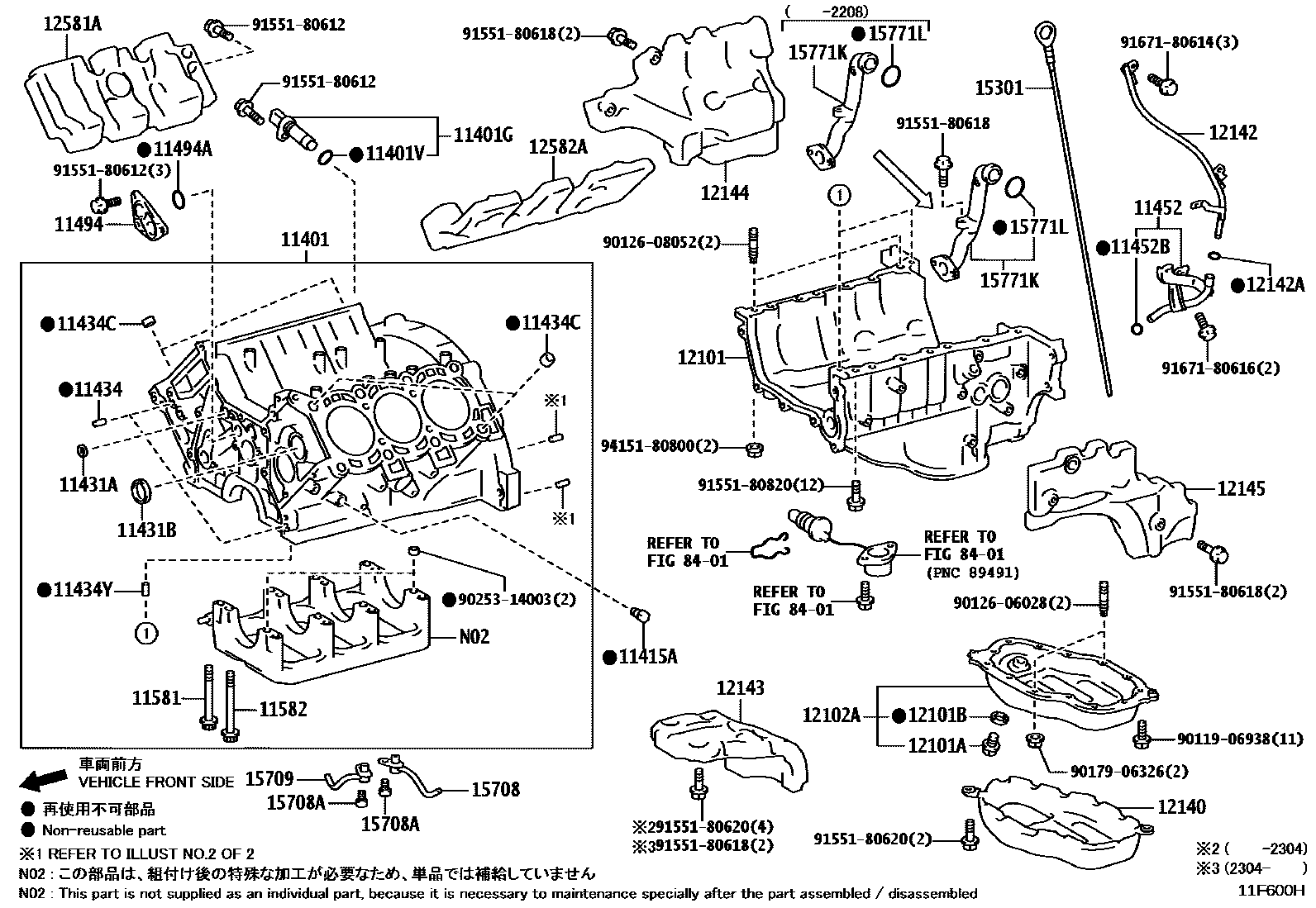

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
main90919-05101iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
11401VO-RING, CRANK POSITION SENSOR
main90301-11039iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
main96411-61800×3iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
main96411-63500×3iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
11434PIN, STRAIGHT(FOR TIMING CHAIN COVER)
main90250-08048×2iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
main90253-11021×2iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8
main90253-14003×4iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411
L=12,OD=14
main90253-15016×4iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
L=10.5,OD=15
11434YPIN, STRAIGHT(FOR OIL PAN)
main90250-06003×2iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
11452GUIDE, OIL LEVEL GAGE
main11452-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
main90301-12018iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
11494PLATE, OIL HOLE COVER
main11494-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
11494ARING, O(FOR OIL HOLE COVER)
main96741-24022iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
11581BOLT, CRANKSHAFT BEARING CAP, NO.1
main90910-02167×8iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
11582BOLT, CRANKSHAFT BEARING CAP, NO.2
12101PAN SUB-ASSY, OIL
main12111-62120iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
12101APLUG(FOR OIL PAN DRAIN)
main90341-12012iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
12101BGASKET(FOR OIL PAN DRAIN PLUG)
main90430-12031iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
12102APAN SUB-ASSY, OIL, NO.2
main12102-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
12140COVER, OIL PAN
12142GUIDE, OIL LEVEL GAGE, NO.2
main12142-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
main12142-52011iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
12142ARING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
main15368-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
12143COVER, OIL PAN
main12143-62010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
12144SILENCER, OIL PAN COVER
main12144-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
12145SILENCER, OIL PAN COVER, NO.2
main12145-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
12581AINSULATOR, CYLINDER BLOCK, NO.1
main12581-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
12582AINSULATOR, CYLINDER BLOCK, NO.2
main12582-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
15301GAGE SUB-ASSY, OIL LEVEL
main15301-52020iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
main15301-52021iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
main15301-70150iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411
15708NOZZLE SUB-ASSY, OIL, NO.1
main15708-52010×3iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411
main15708-70011×6iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202411
15708ABOLT, OIL NOZZLE
main90110-06018×6iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
15709NOZZLE SUB-ASSY, OIL, NO.2
main15709-52010×3iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
15771KPIPE, OIL, NO.1
main15770-62010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
15771LRING, O(FOR OIL PIPE NO.1)
main96741-24025iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411
8401
9011906938
main90119-06938
9012606028
main90126-06028
9012608052
main90126-08052
9017906326
main90179-06326
9025314003
main90253-14003
9155180612
main91551-80612
9155180618
main91551-80618
9155180620
main91551-80620
9155180820
main91551-80820
9167180614
main91671-80614
9167180616
main91671-80616
9415180800
main94151-80800
47 parts on this diagram · 7 diagrams in section
