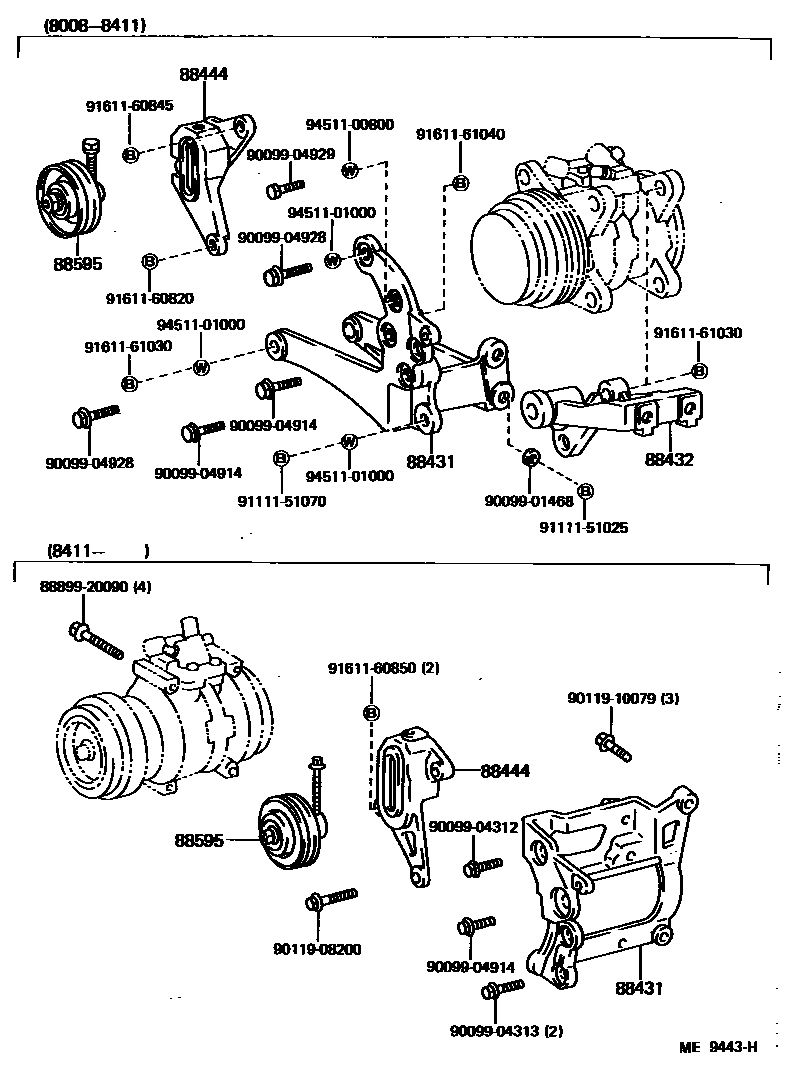

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-36190iBJ60198411-198708

main88431-60011iBJ60198008-198411

main88431-60030iHJ60..HRF..EUR198008-198411

main88431-60040iFJ62198411-198708

main88431-60050iFJ62..WGG..SOB;FJ62..HRF..LUB..ME198411-198708

W/*ODAC

main88431-60060iHJ60..HRF..ARL198411-198708

W/*ODAC

main88431-60060iHJ60..LHD..SRF..LUB..EUR198411-198708

main88437-60110iFJ60..ARL,GEN198008-198011

main88437-60120iFJ60..ARL,GEN198008-198011

W/POWER STEERING

main88437-60150iFJ60..ARL,GEN198011-198411

W/POWER STEERING

main88437-60160iFJ60..ARL,GEN198011-198411

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88431-60021iBJ60198008-198411

main88437-60130iHJ60..LHD..SRF..LUB..EUR198008-198411

main88437-60180iFJ60..ARL,GEN198208-198411

main88437-60190iFJ62198411-198708

W/O PS

main88437-60200iHJ61..LUB..EUR;HJ60..HRF..LUB..EUR198510-198708

ALTERNATOR=24V 25A,30A

main88437-60200iHJ60..GEN198510-198708

ALTERNATOR=12V 40A,55A

main88437-60200iHJ60..LHD..SRF..LUB..EUR198411-198510

main88437-60230iHJ6#..ARL,GEN198510-198708

ALTERNATOR=12V 75A

main88437-60230iHJ6#..LHD..LUB..EUR198510-198608

ALTERNATOR=24V 40A

88444BRACKET, IDLE PULLEY

main88444-36110iBJ60198411-198708

main88444-60011iBJ60198008-198411

main88444-60020iFJ60..ARL,GEN198008-198411

main88444-60030iHJ60..HRF..EUR198008-198411

main88444-60040iHJ60..LHD..SRF..LUB..EUR198411-198510

main88444-60041iHJ6#..LHD..LUB..EUR198510-198708

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12160iBJ60198411-198708

main88440-16010iBJ60198008-198411

sub88440-22050

main88440-20060iFJ60..ARL,GEN198008-198411

main88440-30250iHJ60..ARL,GEN198008-198411

sub88440-28050

main88440-35010iHJ61..LUB..EUR;HJ60..HRF..LUB..EUR198411-198708

main88440-60020iBJ60198403-198411

W/PS

8889920090COVER, EVAPORATOR

main88899-20090

9009901468

main90099-01468

9009904312

main90099-04312

9009904313

main90099-04313

9009904914

main90099-04914

9009904928

main90099-04928

9009904929

main90099-04929

9011908200

main90119-08200

9011910079

main90119-10079

9111151025

main91111-51025

9111151070

main91111-51070

9161160820

main91611-60820

9161160845

main91611-60845

9161160850

main91611-60850

9161161030

main91611-61030

9161161040

main91611-61040

9451100800

main94511-00800

9451101000

main94511-01000

22 parts on this diagram · 7 diagrams in section
