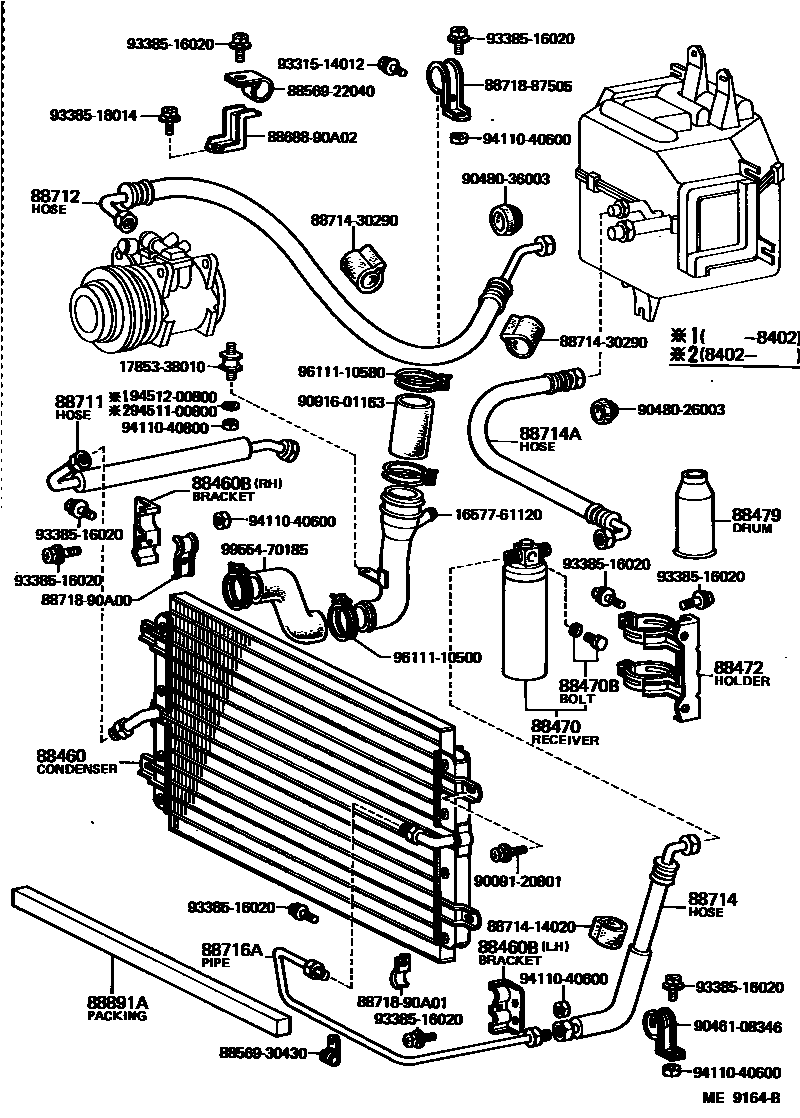

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1

88460CONDENSER ASSY, COOLER

main88460-90A00iBJ60,FJ60..ARL,GEN198008-198411

main88460-90A01iHJ60..ARL,GEN198008-198411

main88460-90A02iFJ62..HRF..ARL198411-198708

W/*ODAC

main88460-90A02iBJ60,FJ62..RHD..GEN198411-198708

main88460-90A03iHJ60..RHD..GEN198411-198708

main88460-90A03iHJ60..HRF..ARL198411-198708

W/*ODAC

main88460-90A04iBJ60,FJ62..LHD198411-198708

main88460-90A05iHJ61..LUB..EUR;HJ60..HRF..LUB..EUR198411-198708

main88460-90A06iFJ62..ARL198411-198510

main88460-90A07iHJ60..ARL198411-198510

main88460-90A10iFJ62..ARL198510-198708

main88460-90A11iHJ6#..ARL198510-198708

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-90A00iBJ60,FJ60..ARL,GEN198008-198411

RH

main88688-90A01iBJ60,FJ60..RHD198008-198411

LH

88470RECEIVER & DRYER ASSY, COOLER

main88470-14010iHJ60..HRF..EUR198008-198708

sub04884-33110

main88471-30280iFJ62..WGG..SOB;FJ62..HRF..LUB..ME198411-198708

W/*ODAC

sub88471-90K01

88470BBOLT, FUSE

main90099-04579iBJ60,FJ6#,HJ60..ARL,GEN,ME198008-198708

sub88475-12020

88472BRACKET, RECEIVER TANK, NO.1

main88472-90A00iBJ60,FJ6#,HJ60..RHD..(ARL,GEN)198008-198708

main88472-90A01iBJ60,FJ6#,HJ60..LHD..(GEN,ME)198008-198708

main88472-90A04iFJ62,HJ6#..RHD..(ARL,GEN)198411-198708

W/*ODAC

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iHJ60..MTM..(ARL,GEN);FJ62,HJ61..ARL,GEN,ME198008-198708

400G

sub90986-02004

sub90986-02005

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-90A00iFJ60..ARL,GEN198008-198411

main88711-90A01iBJ60198008-198110

sub88711-90A03

main88711-90A02iHJ60..HRF..EUR198008-198411

main88711-90A03iBJ60198110-198411

main88711-90A04iFJ62198411-198708

main88711-90A05iBJ60198411-198708

main88711-90A06iHJ60..HRF..ARL198411-198510

W/*ODAC

main88711-90A08iHJ6#..ARL198510-198708

W/*ODAC

main88711-90A08iHJ60..LHD..SRF..LUB..EUR198510-198608

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-90A00iFJ60..RHD198008-198208

main88712-90A02iHJ60..RHD..(ARL,GEN)198008-198411

main88712-90A03iBJ60..RHD198008-198110

main88712-90A04iHJ60..HRF..EUR198008-198411

main88712-90A05iBJ60..LHD198008-198411

main88712-90A06iFJ60..LHD..GEN198008-198208

main88712-90A07iBJ60..RHD198110-198411

main88712-90A08iFJ62..RHD198208-198708

main88712-90A09iFJ60..RHD198208-198708

main88712-90A10iBJ60..RHD198411-198708

main88712-90A11iBJ60..LHD198411-198708

main88712-90A12iHJ60..RHD..GEN198411-198708

main88712-90A13iHJ60..LHD..SRF..LUB..EUR198411-198708

main88712-90A15iFJ62..LHD..GEN198411-198708

W/*ODAC

main88712-90A16iHJ60..HRF..ARL198411-198708

W/*ODAC

main88712-90A21iHJ61..ARL198510-198708

W/*ODAC

main88712-90A22iHJ60..LHD..GEN198510-198708

W/*ODAC

main88712-90A23iHJ6#..ARL198510-198708

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88721-90A00iBJ60,FJ60,HJ60..RHD..(ARL,GEN)198008-198411

main88721-90A02iFJ60..LHD..GEN198008-198411

main88721-90A04iHJ60..LHD..SRF..LUB..EUR198008-198411

main88721-90A05iFJ62..ARL198411-198708

main88721-90A07iHJ61..LUB..EUR;HJ60..HRF..LUB..EUR198411-198708

main88721-90A09iFJ62,HJ6#..RHD..(ARL,GEN)198411-198708

W/*ODAC

main88721-90A12iBJ60,HJ60..RHD..GEN198411-198708

88714AHOSE, COOLER REFRIGERANT LIQUID, NO.2

main88721-90A01iBJ60,FJ6#,HJ6#..RHD..(ARL,GEN)198008-198708

main88721-90A03iBJ60,FJ60,HJ60..LHD..GEN198008-198411

main88721-90A08iHJ60..LHD..SRF..LUB..EUR198411-198708

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-90A00iBJ60,FJ60..RHD198008-198411

main88716-90A01iBJ60,FJ60..LHD..GEN198008-198411

main88716-90A02iHJ60..RHD..(ARL,GEN)198008-198411

main88716-90A03iHJ60..LHD..GEN198008-198411

main88716-90A06iBJ60,FJ62..RHD198411-198708

main88716-90A07iBJ60,FJ62..LHD198411-198708

main88716-90A08iHJ6#..RHD..(ARL,GEN)198411-198708

main88716-90A09iHJ60..LHD..SRF..LUB..EUR198411-198708

88891APACKING A (FOR COOLER)

main88578-90A01iFJ60..ARL,GEN198008-198708

sub88578-90A02

main88578-90A02iFJ62198411-198708

1657761120PIPE, RADIATOR, NO.7

main16577-61120

1785338010INSULATOR, AIR CLEANER BRACKET

main17853-38010

8856922040CLAMP (FOR COOLER RELAY)

main88569-22040

8856930430CLAMP (FOR COOLER RELAY)

main88569-30430

8868890A02BRACKET, COOLER DIAPHRAGM

main88688-90A02

8871414020HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-14020

8871430290HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-30290

8871887505PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-87505

8871890A00PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90A00

8871890A01PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90A01

9009120801

main90091-20801

9046108346

main90461-08346

9048026003

main90480-26003

9048036003

main90480-36003

9091601163

main90916-01163

9331514012

main93315-14012

9338516020

main93385-16020

9338518014

main93385-18014

9411040600

main94110-40600

9411040800

main94110-40800

9451100800

main94511-00800

9451200800

main94512-00800

9611110500

main96111-10500

9611110580

main96111-10580

9955470185

main99554-70185

37 parts on this diagram · 19 diagrams in section
