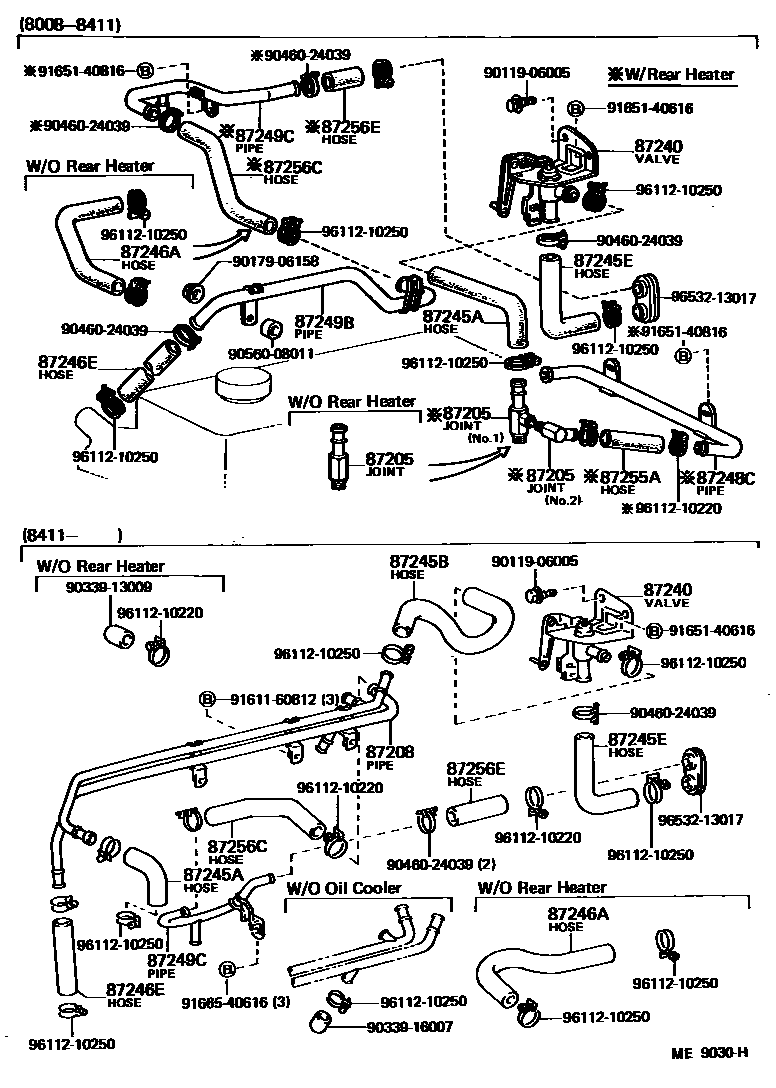

HEATING & AIR CONDITIONING - WATER PIPING
87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE
W/RR HEATER NO.1
W/RR HEATER NO.2
W/RR HEATER
W/RR HEATER
87208PIPE SUB-ASSY, HEATER WATER
87240VALVE ASSY, HEATER WATER
FR HEATER
87245AHOSE, HEATER WATER, INLET A
*H,L=390
*H,L=390
*H,L=390
87245EHOSE, HEATER WATER, INLET E
sub87245-14500
87246AHOSE, HEATER WATER, OUTLET A
*H,L=430
*H,L=460
*H,L=460
87246EHOSE, HEATER WATER, OUTLET E
sub87245-3B531
sub87245-14500
sub87245-30331
*H,L=320
*H,L=55
*H,L=55
*H,L=320
87248CPIPE, HEATER WATER INLET, C
87249BPIPE, HEATER WATER OUTLET, B
87249CPIPE, HEATER WATER OUTLET, C
87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
*H,L=55
87256CHOSE, REAR HEATER WATER OUTLET, C
87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
*H,L=60
*H,L=60
*H,L=60
9011906005
main90119-06005
9017906158
main90179-06158
9033913009
main90339-13009
9033916007
main90339-16007
9046024039
main90460-24039
9056008011
main90560-08011
9161160812
main91611-60812
9165140616
main91651-40616
9165140816
main91651-40816
9166540616
main91665-40616
9611210220
main96112-10220
9611210250
main96112-10250
9653213017
main96532-13017
27 parts on this diagram · 7 diagrams in section
