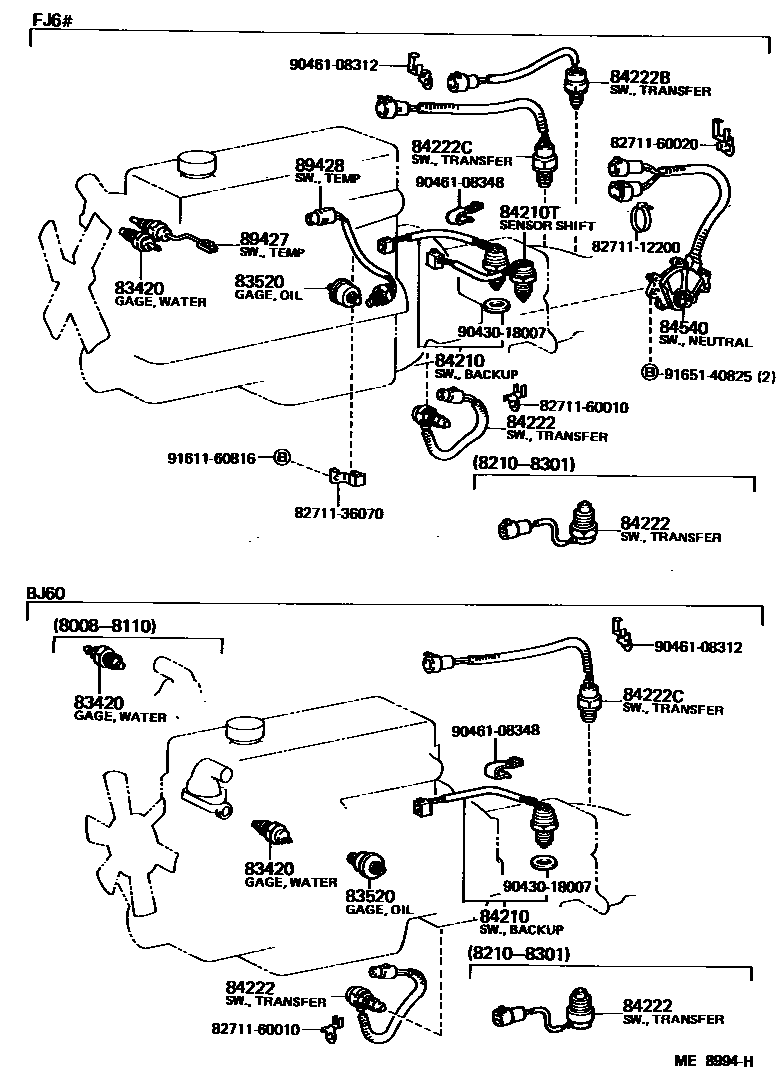

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iBJ60,FJ6#,HJ6#198008-198708

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iBJ60,FJ60;HJ60..ARL,GEN198008-198301

12V,DENSO

sub83520-14022

main83520-55011iBJ60,FJ60;HJ60..ARL,GEN198008-198301

12V,YAZAKI

main83520-55020iBJ60,HJ60..EUR,GEN198008-198301

24V

main83520-60010iBJ60,FJ6#;HJ6#..ARL,GEN198301-198708

12V

sub83520-60011

main83520-60020iBJ60..4F198301-198708

24V

84210SWITCH ASSY, BACK-UP LAMP

main84210-60010iBJ60,FJ60,HJ60198008-198210

main84210-60021iBJ60,FJ6#,HJ6#..MTM198210-198708

84210TSENSOR ASSY, SHIFT POINT

main84220-12020iFJ60..EUR198008-198210

main84220-60010iFJ62..5F..ME198210-198708

main84220-60020iFJ60..HRF..SOB;FJ60..LHD..4F..SRF198401-198411

SAUDI ARABIA SPEC

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-60020iBJ60,FJ60,HJ60198210-198301

main84222-60021iBJ60,FJ6#,HJ6#198301-198708

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-60030iFJ62,HJ61..4FC;HJ60..RHD..4FC;HJ60..LHD..4FC..LUB198411-198708

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-60040iBJ60..GEN198411-198708

sub84222-60041

84540SWITCH ASSY, NEUTRAL START

main84540-60020iFJ62,HJ6#..4FC198411-198708

89427SWITCH, TEMPERATURE DETECT

main89428-14040iFJ62..5F..ME198411-198608

main89428-60050iFJ62..5F..ME198608-198708

main89428-90A00iHJ60..4FC..HRF..ARL198411-198510

W/*ODAC

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-36010iFJ62,HJ6#..4FC198411-198708

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271136070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36070

8271160010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60010

8271160020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60020

9043018007

main90430-18007

9046108312

main90461-08312

9046108348

main90461-08348

9161160816

main91611-60816

9165140825

main91651-40825

19 parts on this diagram · 9 diagrams in section
