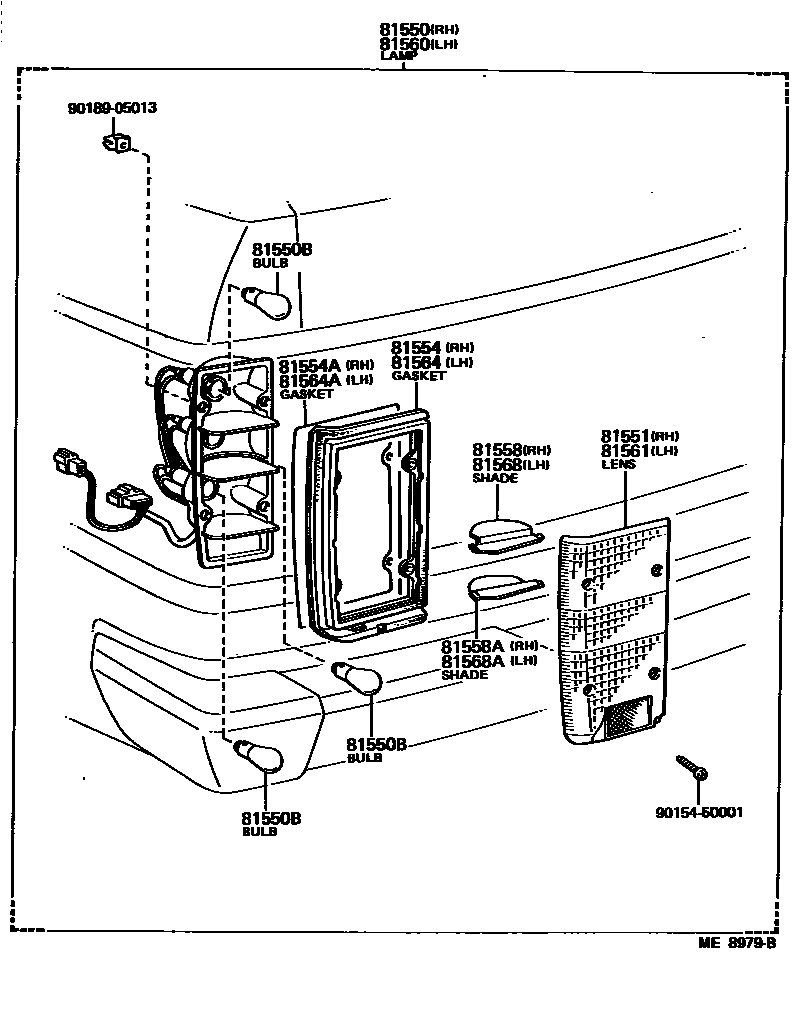

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-69065iBJ60,FJ60,HJ60..GEN198008-198411

12V

sub81550-69085

main81550-69075iBJ60,HJ60..GEN198008-198411

24V

sub81550-69095

main81550-69085iHJ60..ARL198008-198411

12V

main81550-69095iHJ60..EUR198008-198411

24V

main81550-69205iBJ60,FJ62,HJ60..GEN,ME198411-198612

12V

sub81550-90A12

main81550-69215iBJ60..GEN198411-198510

24V

sub81550-90A13

main81550-69225iFJ62,HJ6#..ARL198411-198612

12V

sub81550-90A14

main81550-69225iFJ62,HJ60..RHD..GEN198608-198612

12V,*SA

sub81550-90A14

main81550-69235iHJ6#..EUR198411-198612

24V

sub81550-90A15

main81550-90A12iBJ60,FJ62,HJ60..GEN,ME198612-198708

12V

main81550-90A14iFJ62,HJ60..RHD..GEN198612-198708

12V,*SA

main81550-90A14iFJ62,HJ61..ARL;HJ60..SRF..ARL198612-198708

12V

main81550-90A15iHJ6#..EUR198612-198708

24V

sub81550-90A17

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014iHJ6#..EUR198008-198708

24V 21W,24V 21W(TURN OR BACK)

main90981-16015iBJ60,HJ60..EUR,GEN198008-198708

24V 21/5W,24V 21/5W(STOP/TAIL)

main99132-11210iHJ60..ARL198008-198708

12V 21W,12V 21W(TURN OR BACK)

main99132-11210iFJ62,HJ60..RHD..GEN198608-198708

12V 21W,12V 21W(TURN OR BACK),*SA

main99132-11230iBJ60,FJ6#,HJ60..GEN,ME198008-198708

12V 23W,12V 23W(TURN OR BACK)

main99132-21210iBJ60,FJ6#;HJ60..ARL,GEN198008-198708

12V 21/5W,12V 21/5W(STOP/TAIL)

main99134-11250iBJ60..GEN198008-198510

24V 25W,24V 25W(TURN OR BACK)

81551LENS, REAR COMBINATION LAMP, RH

main81551-90A00iBJ60,FJ6#,HJ6#198008-198708

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-90A00iBJ60,FJ6#,HJ6#198008-198708

81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH

main81554-90A12iHJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR198612-198708

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-90A00iBJ60,FJ6#,HJ6#198008-198708

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81558-90A00iBJ60,FJ6#,HJ6#198008-198708

81560LAMP ASSY, REAR COMBINATION, LH

main81560-69065iBJ60,FJ60,HJ60..GEN198008-198411

12V

sub81560-69085

main81560-69075iBJ60198008-198411

24V

sub81560-69095

main81560-69085iFJ60..ARL,EUR198008-198411

12V

main81560-69095iHJ60..EUR198008-198411

24V

main81560-69205iBJ60,FJ62,HJ60..GEN,ME198411-198612

12V

sub81560-90A12

main81560-69215iBJ60..GEN198411-198510

24V

sub81560-90A13

main81560-69225iFJ62,HJ6#..ARL198411-198612

12V

sub81560-90A14

main81560-69225iFJ62,HJ60..RHD..GEN198608-198612

12V,*SA

sub81560-90A14

main81560-69235iHJ6#..EUR198411-198612

24V

sub81560-90A15

main81560-90A12iBJ60,FJ62,HJ60..GEN,ME198612-198708

12V

main81560-90A14iFJ62,HJ61..ARL;HJ60..SRF..ARL198612-198708

12V,*SA

main81560-90A14iFJ62,HJ60..RHD..GEN198612-198708

12V

main81560-90A15iHJ6#..EUR198612-198708

24V

sub81560-90A17

81561LENS, REAR COMBINATION LAMP, LH

main81561-90A00iBJ60,FJ6#,HJ6#198008-198708

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-90A00iBJ60,FJ6#,HJ6#198008-198708

81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH

main81564-90A12iHJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR198612-198708

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-90A00iBJ60,FJ6#,HJ6#198008-198708

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81558-90A00iBJ60,FJ6#,HJ6#198008-198708

9015450001

main90154-50001

9018905013

main90189-05013

15 parts on this diagram · 1 diagram in section
