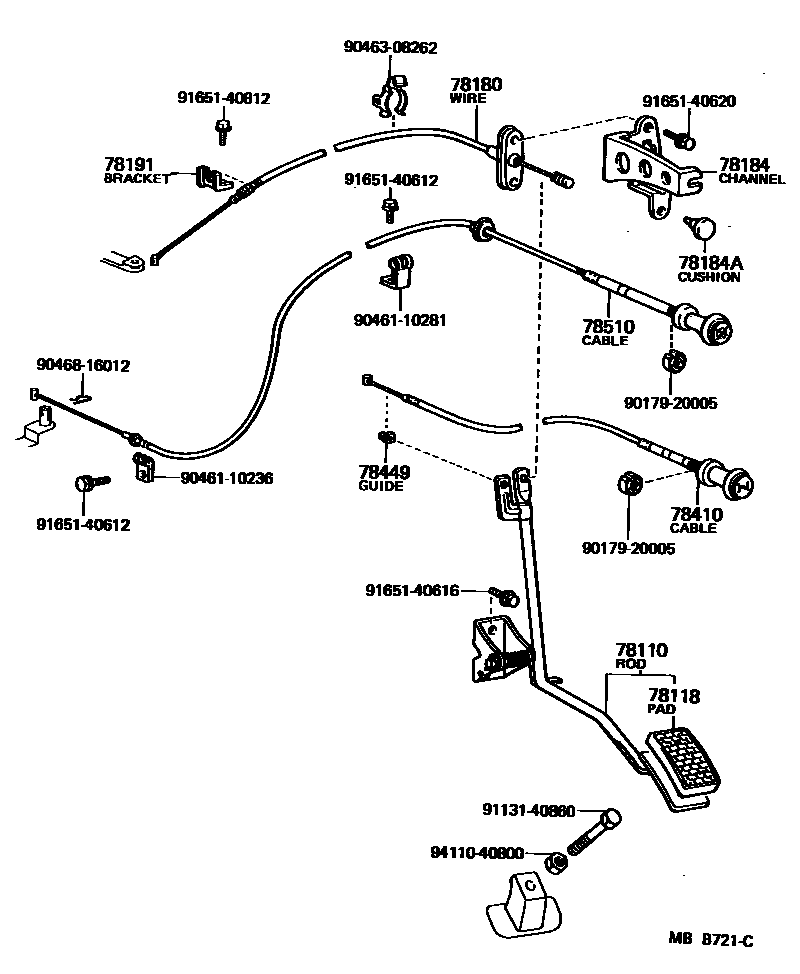

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-90A00iFJ60..RHD198008-198411

main78120-90A01iBJ60,FJ60,HJ60..RHD198008-198411

W/THROTTLE BUTTON

main78120-90A02iFJ60..LHD198008-198411

main78120-90A03iBJ60,HJ60..LHD198008-198411

main78120-90A04iFJ62..RHD198411-198708

main78120-90A05iBJ60,FJ62,HJ6#..RHD198411-198708

W/THROTTLE BUTTON

main78120-90A06iBJ60,FJ62,HJ60..LHD198411-198708

main78120-90A08iHJ61..EUR198510-198708

78118PAD, ACCELERATOR PEDAL

main78111-95110iBJ60,FJ6#,HJ6#198008-198708

78180WIRE ASSY, ACCELERATOR

main78180-90A00iFJ60..RHD198008-198411

main78180-90A01iHJ60..RHD198008-198205

main78180-90A02iBJ60..RHD198008-198205

main78180-90A03iHJ60..LHD198008-198205

main78180-90A04iBJ60..LHD198008-198205

main78180-90A05iHJ60..RHD198205-198408

sub78180-90A20

main78180-90A06iBJ60..RHD198205-198708

sub78180-90A30

main78180-90A07iHJ60..LHD198205-198411

main78180-90A08iBJ60..LHD198205-198411

main78180-90A10iFJ62..RHD198411-198704

sub78180-90A26

main78180-90A11iFJ62..LHD198411-198708

main78180-90A12iHJ60..RHD..4FC198411-198510

main78180-90A13iHJ60..LHD..MTM198411-198708

main78180-90A14iHJ60..LHD..4FC198411-198708

main78180-90A15iBJ60..LHD198411-198708

main78180-90A19iHJ60..RHD..MTM198411-198704

sub78180-90A27

main78180-90A20iHJ60..RHD198408-198411

main78180-90A21iHJ61..4FC198510-198708

main78180-90A22iHJ61..EUR198510-198708

main78180-90A23iHJ61..5F..ARL198510-198708

sub78180-90A32

main78180-90A26iFJ62..RHD198704-198708

main78180-90A27iHJ60..RHD..SRF198704-198708

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78184-90A00iBJ60,FJ60,HJ60..RHD198008-198411

main78184-90A01iBJ60,FJ62,HJ60..RHD198411-198708

main78184-90A02iHJ61198510-198708

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iBJ60,FJ6#,HJ6#..RHD198008-198708

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78183-90A00iBJ60..LHD198008-198708

78410CABLE ASSY, THROTTLE CONTROL

main78410-90A00iBJ60,FJ60,HJ60..RHD..(EUR,GEN)198008-198708

sub78410-90A09

main78410-90A01iFJ60,HJ60..ARL198008-198411

main78410-90A02iBJ60,FJ6#,HJ6#..LHD198008-198708

sub78410-90A10

main78410-90A04iHJ60..RHD..EUR198103-198410

ENGLAND SPEC

sub78410-90A05

main78410-90A05iHJ60..RHD..EUR198410-198708

ENGLAND SPEC

main78410-90A06iHJ60..LHD..EUR198411-198708

*FRG

sub78410-90A10

78449GUIDE, THROTTLE CABLE

main78449-90300iBJ60,FJ6#,HJ60198008-198507

78510CABLE ASSY, STOP

main78510-90A00iHJ60..RHD..GEN198008-198110

main78510-90A01iBJ60..RHD198008-198411

main78510-90A02iHJ60..LHD..GEN198008-198110

main78510-90A03iBJ60..LHD198008-198411

9017920005

main90179-20005

9046110236

main90461-10236

9046110281

main90461-10281

9046308262

main90463-08262

9046816012

main90468-16012

9113140860

main91131-40860

9165140612

main91651-40612

9165140616

main91651-40616

9165140620

main91651-40620

9165140812

main91651-40812

9411040800

main94110-40800

20 parts on this diagram · 14 diagrams in section
