FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

77014STRAINER SUB-ASSY, FUEL

main77014-60011iBJ60,FJ60,HJ60..ARL,GEN¥280198008-198411

sub77672-60040¥310

main77672-60040iBJ60,FJ62,HJ6#..ARL,GEN,ME¥310198411-198708

77022SEPARATOR SUB-ASSY, FUEL EVAPORATIVE

main77193-60030iBJ60,FJ6#,HJ6#¥3,520198008-198608

main77193-60031iHJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR¥3,520198608

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main90445-17064iBJ60,FJ62,HJ6#¥890198608-198708

L=215

main95331-10022iBJ60,FJ60,HJ60198008-198105

L=220

main95332-06010iHJ60;BJ60,FJ60..EUR,GEN¥300198008-198702

L=100(*H,L=70)

sub95333-06010¥300

main95332-06030iBJ60,FJ6#,HJ6#¥590198008-198608

L=300(*H,L=220)

sub95333-06030¥580

main95332-06060iFJ60..ARL¥1,020198008-198702

L=600(*H,L=460)

sub95333-06060¥1,020

main95333-06010iFJ62..GEN,ME¥300198702-198708

L=100(*H,L=70)

main95333-06060iFJ62..ARL,ME¥1,020198702-198708

L=600(*H,L=460)

77031CAP ASSY, FUEL TANK

main77310-12090iBJ60,FJ60,HJ60¥2,320198008-198210

sub77310-12100¥2,320

main77310-12100iFJ6#¥2,320198210-198708

main77310-35061iBJ60,HJ6#¥2,320198210-198708

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iBJ60,FJ6#,HJ6#¥310198008-198708

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-90K00iBJ60,FJ62,HJ6#¥1,610198411-198708

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77030-90A00iBJ60,FJ62,HJ6#..RHD¥3,410198411-198708

main77030-90A01iBJ60,FJ62,HJ6#..LHD¥4,120198411-198708

77100TANK ASSY, FUEL

main77001-60110iBJ60,FJ6#,HJ60¥70,000198008-198708

sub77001-60230¥70,300

main77001-60200iHJ6#..EUR198510-198708

sub77001-60240¥70,300

77100APLUG(FOR FUEL TANK)

main90105-12018iBJ60,FJ6#,HJ6#¥380198008-198708

77100BGASKET(FOR FUEL TANK)

main90430-12245iBJ60,FJ6#,HJ6#¥160198008-198708

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77249-60040iBJ60,FJ6#,HJ6#¥1,440198008-198708

250X312X92

77100EHOSE, FUEL, NO.2(FOR FUEL TANK)

main77249-60050iBJ60,FJ6#,HJ6#¥1,060198008-198708

265X285X70

77100FHOSE, FUEL, NO.3(FOR FUEL TANK)

main90445-22904iBJ60,FJ6#,HJ6#¥1,480198008-198708

L=300

77100GHOSE, FUEL, NO.4(FOR FUEL TANK)

main95332-06040iBJ60,FJ6#,HJ6#¥760198008-198702

L=400(*H,L=340)

sub95333-06040¥730

main95333-06040iHJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR¥730198702-198708

L=400(*H,L=340)

77100QHOSE, FUEL, NO.5(FOR FUEL TANK)

main95331-10036iBJ60,FJ60,HJ60198008-198105

*H,L=360

sub95332-10036¥1,160

main95332-10036iBJ60,FJ6#,HJ6#¥1,160198105-198708

L=400(*H,L=360)

sub95332-10040¥1,160

77108PROTECTOR SUB-ASSY, FUEL TANK

main58279-90A00iBJ60,FJ6#,HJ6#¥3,880198008-198708

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60130iFJ62..GEN,ME¥5,300198008-198708

main77201-60140iBJ60,FJ6#,HJ6#..ARL,GEN,ME¥6,300198008-198708

W/STRAINER

main77201-60150iFJ62..ARL¥8,000198510-198708

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22015iBJ60,FJ6#,HJ6#¥480198008-198708

L=150

sub90445-22002¥600

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-60040iBJ60,HJ60¥2,870198008-198210

sub77240-60010¥2,860

main77203-60050iFJ60¥3,310198008-198210

main77240-60010iBJ60,HJ60¥2,860198210-198510

sub77240-60011¥3,510

main77240-60011iBJ60,HJ60¥3,510198510-198708

main77240-60020iFJ6#¥5,100198210-198510

sub77240-60030¥5,100

main77240-60030iHJ61¥5,100198510-198708

main77240-60180iFJ62¥3,580198510-198708

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iBJ60,FJ6#,HJ6#¥330198210-198708

main83361-20030iBJ60,FJ60,HJ60¥320198008-198210

77209CONNECTOR SUB-ASSY, FUEL TUBE

main77209-60040iBJ60,FJ6#,HJ6#¥7,600198008-198608

main77209-60041iHJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR¥7,800198608-198708

77213HOSE, FUEL TANK SUB INLET

main77213-60030iBJ60,FJ6#,HJ6#¥2,860198008-198708

77295SHIELD, FUEL FILLER PIPE

main77293-60030iBJ60,FJ6#,HJ6#¥370198008-198708

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-90A00iBJ60,FJ60,HJ60¥7,400198008-198411

main77305-90A01iBJ60,FJ62,HJ6#¥7,400198411-198708

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003iBJ60,FJ6#,HJ6#¥90198008-198708

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12010iBJ60,FJ62,HJ6#¥220198411-198708

W/FUEL LID OPENER

77367STOPPER, FUEL FILLER OPENING LID

main77358-12020iBJ60,FJ62,HJ6#¥200198411-198708

77611BAND, FUEL TANK

main77601-60060iBJ60,FJ6#,HJ6#¥4,920198008-198708

RH

main77602-60040iBJ60,FJ6#,HJ6#¥4,920198008-198708

LH

77652CUSHION, FUEL TANK, NO.1

main77653-60010iBJ60,FJ6#,HJ6#¥740198008-198708

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iHJ60;BJ60,FJ60..EUR,GEN¥1,580198008-198708

77701UHOSE, FUEL (FOR CHECK VALVE)

main95332-06040iHJ60;BJ60,FJ60..EUR,GEN¥760198008-198702

L=400(*H,L=360)

sub95333-06040¥730

main95332-06040iFJ62..GEN,ME¥760198411-198702

L=400

sub95333-06040¥730

main95333-06040iFJ62..GEN,ME¥730198702-198708

L=400

main95333-06040iFJ62..GEN,ME¥730198702-198708

L=400(*H,L=360)

9017910033

main90179-10033¥130

9020110038

main90201-10038¥170

9046062033

main90460-62033¥180

9046112894

main90461-12894¥930

9046707075

main90467-07075¥170

9046713012

main90467-13012¥130

9046720134

main90467-20134¥90

9095901196

main90959-01196¥330

9165140612

main91651-40612¥70

9165140614

main91651-40614¥160

9165140620

main91651-40620¥70

9165161025

main91651-61025¥100

9165161040

main91651-61040¥120

9166140614

main91661-40614¥120

9166540616

main91665-40616¥70

9331616016

main93316-16016¥130

9331914010

main93319-14010¥70

9338515014

main93385-15014¥110

9411040800

main94110-40800¥120

9451200800

main94512-00800¥80

9613230600

main96132-30600¥200

9613231000

main96132-31000¥190

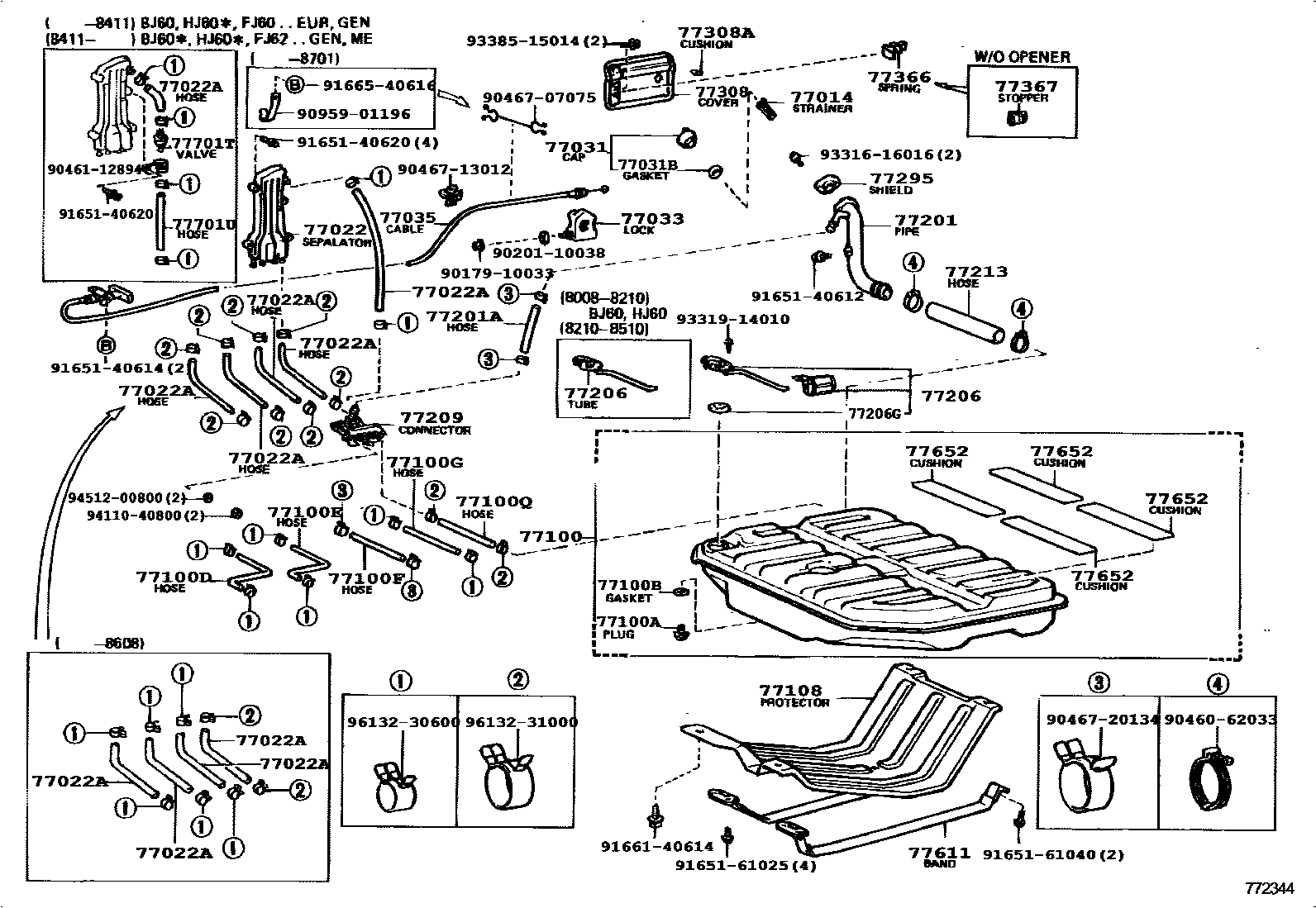

53 parts on this diagram · 10 diagrams in section
