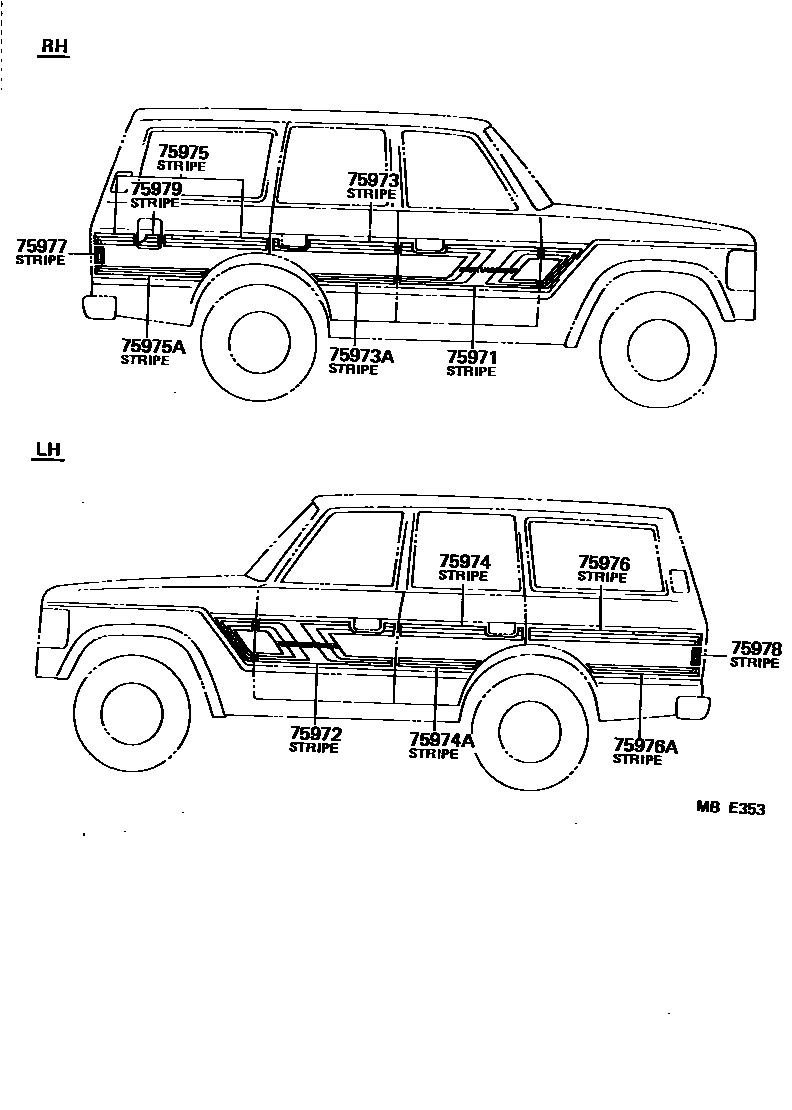

BODY STRIPE

0001 1 0003 1 0004 1

75971STRIPE, SIDE, RH NO.1

main75981-90A01iFJ62,HJ6#..WGG198411-198608

BLUE

main75981-90A02iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198411-198608

RED

main75981-90A03iBJ60,FJ62,HJ60..WGV..(GEN,ME)198608-198708

RED

main75981-90A04iBJ60,FJ62,HJ60..WGV..(GEN,ME)198608-198708

BLUE

main75981-90A05iHJ60..MTM..LUB..(ARL,GEN);FJ62,HJ61..WGG..(ARL,GEN,ME)198608-198708

W/*OF,RED

main75981-90A06iHJ60..MTM..LUB..(ARL,GEN);FJ62,HJ61..WGG..(ARL,GEN,ME)198608-198708

W/*OF,BLUE

main75981-90A07iFJ62,HJ60..RHD..SOB..GEN198608-198708

RED

main75981-90A07iFJ62,HJ60..RHD..SOB..GEN198608-198708

*SA,RED

main75981-90A08iFJ62,HJ60..RHD..SOB..GEN198608-198708

*SA,BLUE

main75981-90A08iFJ62,HJ60..RHD..SOB..GEN198608-198708

BLUE

main75981-90A09iFJ62,HJ60..RHD..SOB..GEN198608-198708

*SA,W/*OF,RED

main75981-90A09iFJ62,HJ60..RHD..SOB..GEN198608-198708

W/*OF,RED

main75981-90A10iHJ6#..WGG..EUR198608-198708

W/*OF,BLUE

main75981-90A10iFJ62,HJ60..RHD..SOB..GEN198608-198708

*SA,W/*OF,BLUE

main75985-90A01iBJ60,FJ60,HJ60..WGV..GEN198210-198411

main75985-90A02iFJ60,HJ60..LUB198210-198411

W/G

75972STRIPE, SIDE, LH NO.1

main75982-90A01iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198411-198608

BLUE

main75982-90A02iFJ62,HJ6#..WGG198411-198608

RED

main75982-90A03iBJ60,FJ62,HJ60..WGV..(GEN,ME)198608-198708

RED

main75982-90A04iHJ60..MTM..LUB..(ARL,GEN);FJ62,HJ61..WGG..(ARL,GEN,ME)198608-198708

BLUE

main75982-90A05iHJ60..MTM..LUB..(ARL,GEN);FJ62,HJ61..WGG..(ARL,GEN,ME)198608-198708

W/*OF,RED

main75982-90A06iHJ60..MTM..LUB..(ARL,GEN);FJ62,HJ61..WGG..(ARL,GEN,ME)198608-198708

W/*OF,BLUE

main75982-90A07iFJ62,HJ60..RHD..SOB..GEN198608-198708

*SA,RED

main75982-90A07iHJ6#..EUR198608-198708

RED

main75982-90A08iHJ6#..EUR198608-198708

BLUE

main75982-90A08iHJ6#..EUR198608-198708

*SA,BLUE

main75982-90A09iFJ62,HJ60..RHD..SOB..GEN198608-198708

*SA,W/OF,RED

main75982-90A09iFJ62,HJ60..RHD..SOB..GEN198608-198708

W/OF,RED

main75982-90A10iHJ6#..WGG..EUR198608-198708

*SA,W/OF,BLUE

main75982-90A10iHJ6#..WGG..EUR198608-198708

W/OF,BLUE

main75986-90A01iBJ60,FJ60,HJ60..SOB..(EUR,GEN)198210-198411

main75986-90A02iFJ60,HJ60..WGG..GEN198210-198411

W/G

75973STRIPE, SIDE, RH NO.2

main75939-90A00iBJ60,FJ60,HJ60..GEN198210-198411

main75973-90A00iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

RED

main75973-90A01iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198608-198708

BLUE

main75973-90A02iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

W/*OF,RED

main75973-90A03iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

W/*OF,BLUE

main75985-90A04iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198411-198608

BLUE

main75985-90A06iFJ62,HJ6#..WGG198411-198608

BLUE

main75985-90A07iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198411-198608

RED

main75985-90A08iFJ62,HJ6#..WGG198411-198608

RED

75973ASTRIPE, SIDE, RH NO.2 (FOR UPPER)

main75987-90A01iBJ60,FJ60,HJ60..GEN198210-198411

75974STRIPE, CENTER PILLAR, LH NO.2

main75974-90A00iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198608-198708

RED

main75974-90A01iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

BLUE

main75974-90A02iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

W/*OF,RED

main75974-90A03iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

W/*OF,BLUE

main75986-90A04iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198411-198608

BLUE

main75986-90A06iFJ62,HJ6#..WGG198411-198608

BLUE

main75986-90A07iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198411-198608

RED

main75986-90A08iFJ62,HJ6#..WGG198411-198608

RED

main75989-90A00iFJ60,HJ60..HRF..ARL198210-198411

75974ASTRIPE, SIDE, LH NO.2(FOR UPPER)

main75988-90A01iBJ60,FJ60,HJ60..EUR,GEN198210-198411

75975STRIPE, SIDE, RH UPR NO.3

main75996-90A00iFJ60,HJ60..HRF..ARL198210-198411

75975ASTRIPE, SIDE, RH NO.3 (FOR UPPER)

main75939-90A02iFJ62,HJ6#..WGG198411-198608

BLUE

main75939-90A03iFJ62,HJ6#..WGG198411-198608

RED

main75985-90A09iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

RED

main75985-90A10iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

BLUE

main75985-90A11iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198608-198708

RED

main75985-90A12iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198608-198708

BLUE

main75998-90A00iFJ60,HJ60..HRF..ARL198210-198411

75976STRIPE, SIDE, LH UPR

main75997-90A00iBJ60,FJ60,HJ60..GEN198210-198411

75976ASTRIPE, SIDE, LH NO.3 (FOR UPPER)

main75986-90A09iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

RED

main75986-90A10iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

BLUE

main75986-90A11iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198608-198708

RED

main75986-90A12iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198608-198708

BLUE

main75989-90A02iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198411-198608

BLUE

main75989-90A03iFJ62,HJ6#..WGG198411-198608

RED

main75999-90A00iBJ60,FJ60,HJ60..EUR,GEN198210-198411

75977STRIPE, SIDE, RH NO.4

main75993-90A00iBJ60,FJ60,HJ60..EUR,GEN198210-198411

75978STRIPE, SIDE, LH NO.4

main75994-90A00iBJ60,FJ60,HJ60..GEN198210-198411

75979STRIPE, FUEL FILLER OPENING LID

main75979-90A01iBJ60,FJ60,HJ60..GEN198210-198411

main75979-90A03iFJ62,HJ60..WGG198411-198608

BLUE

main75979-90A04iBJ60,FJ62,HJ6#..WGV..(EUR,GEN,ME)198411-198608

RED

13 parts on this diagram · 3 diagrams in section
