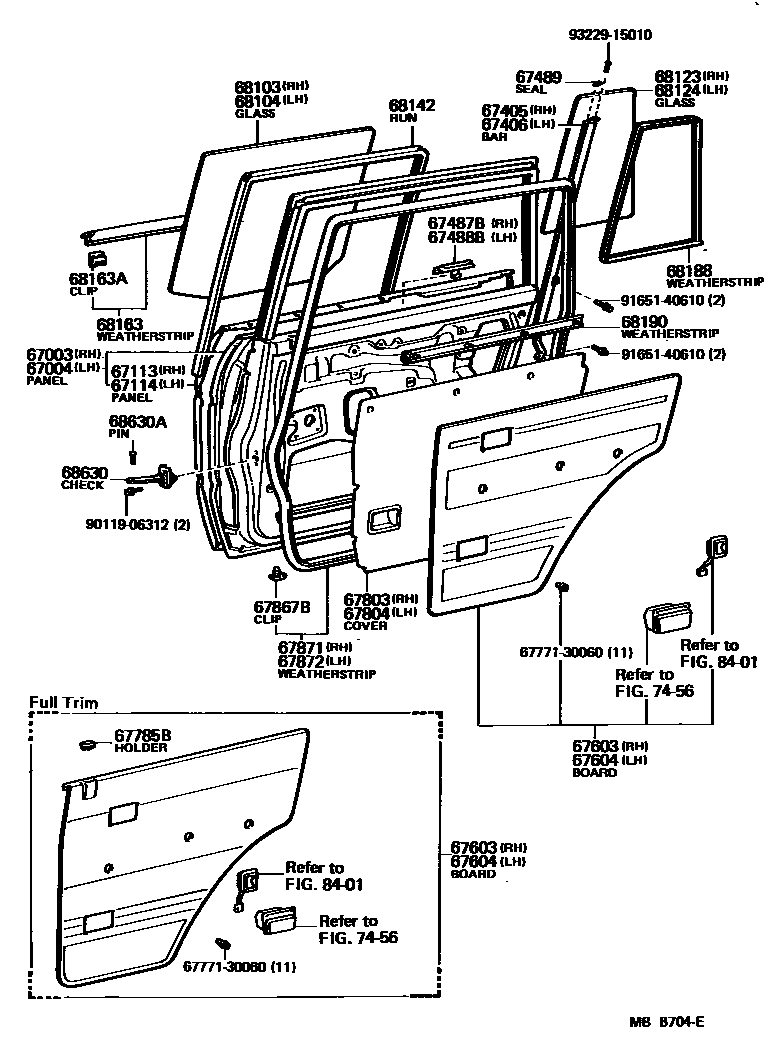

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-90A01iBJ60,FJ60,HJ60198008-198309

sub67003-90A03

main67003-90A03iBJ60,FJ60,HJ60198309-198409

sub67003-90A22

sub68180-90A01

sub75730-90A01

main67003-90A05iFJ60,HJ60..LHD..LUB..GEN198309-198409

W/MAGNET LOCK

sub67003-90A23

sub68180-90A01

sub75730-90A01

main67003-90A07iBJ60,FJ6#,HJ6#198409-198512

sub67003-90A15

sub68180-90A01

sub75730-90A01

main67003-90A09iFJ62,HJ60..LUB198409-198512

W/MAGNET LOCK

sub67003-90A17

sub68180-90A01

sub75730-90A01

main67003-90A11iFJ62,HJ6#..WGG198411-198512

W/OVER FENDER

sub67003-90A19

sub68180-90A01

sub75730-90A01

main67003-90A13iFJ62,HJ6#..WGG198411-198512

W/MAGNET LOCK & OVER FENDER

sub67003-90A21

sub68180-90A01

sub75730-90A01

main67003-90A15iHJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61198512-198708

sub67003-90A22

main67003-90A17iHJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61198512-198708

W/MAGNET LOCK

sub67003-90A23

main67003-90A19iHJ60..5F..HRF;HJ60..SRF..LUB;FJ62,HJ61..WGG198512-198708

W/OVER FENDER

sub67003-90A21

sub90950-01437

main67003-90A21iHJ60..5F..HRF;HJ60..SRF..LUB;FJ62,HJ61..WGG198512-198708

W/MAGNET LOCK & OVER FENDER

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-90A01iBJ60,FJ60,HJ60198008-198309

sub67004-90A03

main67004-90A03iBJ60,FJ60,HJ60198309-198409

sub67004-90A07

main67004-90A05iFJ60,HJ60..LHD..LUB..GEN198309-198409

W/MAGNET LOCK

sub67004-90A09

main67004-90A07iBJ60,FJ6#,HJ6#198409-198512

sub67004-90A15

sub68230-90A01

sub75740-90A01

main67004-90A09iFJ62..SOB..ME198409-198512

W/MAGNET LOCK

sub67004-90A17

sub68230-90A01

sub75740-90A01

main67004-90A11iFJ62,HJ6#..WGG198411-198512

W/OVER FENDER

sub67004-90A19

sub68230-90A01

sub75740-90A01

main67004-90A13iFJ62,HJ6#..WGG198411-198512

W/MAGNET LOCK & OVER FENDER

sub67004-90A21

sub68230-90A01

sub75740-90A01

main67004-90A15iHJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61198512-198708

sub67004-90A17

sub90950-01437

main67004-90A17iHJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61198512-198708

W/MAGNET LOCK

main67004-90A19iHJ60..5F..HRF;HJ60..SRF..LUB;FJ62,HJ61..WGG198512-198708

W/OVER FENDER

sub67004-90A21

sub90950-01437

main67004-90A21iHJ60..5F..HRF;HJ60..SRF..LUB;FJ62,HJ61..WGG198512-198708

W/MAGNET LOCK & OVER FENDER

67113PANEL, REAR DOOR, OUTER RH

main67113-90A01iBJ60,FJ6#,HJ6#198008-198512

sub67113-90A05

sub68180-90A01

sub75730-90A01

main67113-90A03iFJ62,HJ6#..WGG198411-198512

W/OVER FENDER

sub67113-90A07

sub68180-90A01

sub75730-90A01

main67113-90A05iHJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61198512-198708

main67113-90A07iHJ60..5F..HRF;HJ60..SRF..LUB;FJ62,HJ61..WGG198512-198708

W/OVER FENDER

67114PANEL, REAR DOOR, OUTER LH

main67114-90A01iBJ60,FJ6#,HJ6#198008-198512

sub67114-90A05

sub68230-90A01

sub75740-90A01

main67114-90A03iFJ62,HJ6#..WGG198411-198512

W/OVER FENDER

sub67114-90A07

sub68230-90A01

sub75740-90A01

main67114-90A05iHJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61198512-198708

main67114-90A07iHJ60..5F..HRF;HJ60..SRF..LUB;FJ62,HJ61..WGG198512-198708

W/OVER FENDER

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-90A00iBJ60,FJ6#,HJ6#198008-198708

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-90A00iBJ60,FJ6#,HJ6#198008-198708

67487BSEAL, REAR DOOR DIVISION BAR, RH

main67487-90A00iBJ60..ME198702-198708

67488BSEAL, REAR DOOR DIVISION BAR, LH

main67488-90A00iBJ60,FJ62,HJ6#..WGV..(ARL,EUR,GEN)198702-198708

67489SEAL, REAR DOOR DIVISION BAR

main67481-20010iBJ60,FJ6#,HJ6#198008-198708

RH

main67482-20010iBJ60,FJ60,HJ6#198008-198708

LH

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-90A02-03iBJ60,FJ60..LHD..SOB198210-198708

SHADOW GRAY,GRAY,TRIM1#

sub67630-90A02

main67630-90A02-03iFJ62..LHD..SOB198411-198510

SEMI TRIM,SHADOW GRAY,GRAY,TRIM1#

sub67630-90A02

main67630-90A02-06iBJ60,FJ60,HJ60..SOB198008-198411

DARK BROWN,BROWN,TRIM4#

sub67630-90A02

main67630-90A03-03iFJ60,HJ60..WGG198210-198411

SHADOW GRAY,GRAY,TRIM1#

sub67630-90A03

main67630-90A03-06iFJ60,HJ60..LUB198008-198411

DARK BROWN,BROWN,TRIM4#

sub67630-90A03

main67630-90A06iFJ60..LHD..SRF..LUB..GEN198309-198411

MIDDLE EAST SPEC

main67630-90A11-06iBJ60,FJ62,HJ60..SOB198411-198510

SEMI TRIM,SEPIA BROWN,SEPIA BROWN,TRIM4#

sub67630-90A02

main67630-90A11-06iBJ60,FJ62,HJ6#..WGV..(ARL,EUR,GEN)198510-198708

SEPIA BROWN,SEPIA BROWN,TRIM4#

sub67630-90A02

main67630-90A12-03iFJ62..WGV..ME198411-198608

SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A12-03iFJ62,HJ6#..WGG198411-198608

FULL TRIM,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A12-06iFJ62,HJ6#..WGG198411-198608

SEPIA BROWN,SEPIA BROWN,TRIM4#

main67630-90A12-06iFJ62..WGV..ME198411-198608

FULL TRIM,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67630-90A13-03iFJ62..LUB..ME198411-198510

DLX PACKAGE,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A13-06iFJ62,HJ60..HRF..ARL198411-198510

DLX PACKAGE,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67630-90A15-03iFJ62,HJ6#..WGG198411-198608

W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A15-03iFJ62,HJ6#..WGG198411-198608

FULL TRIM,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A15-06iFJ62..WGV..ME198411-198608

FULL TRIM,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67630-90A15-06iFJ62..WGV..ME198411-198608

W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67630-90A17-03iFJ62,HJ60..HRF..ARL198411-198510

DLX PACKAGE,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A17-06iFJ62..LUB..ME198411-198510

DLX PACKAGE,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67630-90A18-03iFJ62..SOB..ME198411-198510

SEMI TRIM,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A18-06iFJ62..SOB..ME198411-198510

SEMI TRIM,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67630-90A20-03iFJ62,HJ61..HRF..ARL198510-198608

DLX PACKAGE,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A20-06iFJ62,HJ61..HRF..ARL198510-198608

DLX PACKAGE,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67630-90A23-03iFJ62,HJ61..HRF..ARL198608-198708

*DLP W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A23-03iFJ62..WGG..ME198608-198708

*DLP,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A23-06iFJ62,HJ61..HRF..ARL198608-198708

*DLP W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67630-90A24-03iFJ62..WGV..ME198608-198708

SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A24-03iFJ62..WGV..ME198608-198708

FULL TRIM,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A24-06iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

SEPIA BROWN,SEPIA BROWN,TRIM4#

main67630-90A24-06iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

FULL TRIM,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67630-90A25-03iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A25-03iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

FULL TRIM,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67630-90A25-06iFJ62..WGV..ME198608-198708

W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67630-90A25-06iFJ62..WGV..ME198608-198708

FULL TRIM,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-90A02-03iBJ60,FJ60..LHD..SOB198210-198708

SHADOW GRAY,GRAY,TRIM1#

sub67640-90A02

main67640-90A02-03iFJ62..LHD..SOB198411-198510

SEMI TRIM,SHADOW GRAY,GRAY,TRIM1#

sub67640-90A02

main67640-90A02-06iBJ60,FJ60,HJ60..SOB198008-198411

DARK BROWN,BROWN,TRIM4#

sub67640-90A02

main67640-90A03-03iFJ62..WGV..ME198411-198608

FULL TRIM,SHADOW GRAY,GRAY,TRIM1#

sub67640-90A03

main67640-90A03-03iFJ60..WGV..LUB198210-198608

SHADOW GRAY,GRAY,TRIM1#

sub67640-90A03

main67640-90A03-06iFJ60,HJ60..LUB198008-198411

DARK BROWN,BROWN,TRIM4#

sub67640-90A03

main67640-90A06iFJ60..LHD..SRF..LUB..GEN198309-198411

MIDDLE EAST SPEC

main67640-90A11-06iBJ60,FJ62,HJ60..SOB198411-198708

SEMI TRIM,SEPIA BROWN,SEPIA BROWN,TRIM4#

sub67640-90A02

main67640-90A12-06iFJ62..WGV..ME198411-198608

FULL TRIM,SEPIA BROWN,SEPIA BROWN,TRIM4#

sub67640-90A03

main67640-90A12-06iFJ62,HJ60..WGG198411-198608

SEPIA BROWN,SEPIA BROWN,TRIM4#

sub67640-90A03

main67640-90A13-03iFJ62,HJ60..HRF..ARL198411-198510

DLX PACKAGE,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67640-90A13-06iFJ62..LUB..ME198411-198510

DLX PACKAGE,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67640-90A15-03iFJ62..WGV..ME198411-198608

W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67640-90A15-03iFJ62..WGV..ME198411-198608

FULL TRIM,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67640-90A15-06iFJ62,HJ60..WGG198411-198608

FULL TRIM,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67640-90A15-06iFJ62..WGV..ME198411-198608

W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67640-90A17-03iFJ62..LUB..ME198411-198510

DLX PACKAGE,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67640-90A17-06iFJ62,HJ60..HRF..ARL198411-198510

DLX PACKAGE,W/*PW,SEPIA BROWN,SHADOW GRAY,TRIM4#

main67640-90A18-03iFJ62..SOB..ME198411-198510

SEMI TRIM,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67640-90A18-06iFJ62..SOB..ME198411-198510

SEMI TRIM,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67640-90A20-03iFJ62,HJ61..HRF..ARL198510-198608

DLX PACKAGE,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67640-90A20-06iFJ62,HJ61..HRF..ARL198510-198608

DLX PACKAGE,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67640-90A23-03iFJ62,HJ61..HRF..ARL198608-198708

*DLP,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67640-90A23-06iFJ62,HJ61..HRF..ARL198608-198708

*DLP,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67640-90A24-03iFJ62..WGV..ME198608-198708

SHADOW GRAY,SHADOW GRAY,TRIM1#

main67640-90A24-03iFJ62..WGV..ME198608-198708

FULL TRIM,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67640-90A24-06iFJ62..WGV..ME198608-198708

SEPIA BROWN,SEPIA BROWN,TRIM4#

main67640-90A24-06iFJ62..WGV..ME198608-198708

FULL TRIM,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67640-90A25-03iFJ62..WGV..ME198608-198708

W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67640-90A25-03iFJ62..WGV..ME198608-198708

FULL TRIM,W/*PW,SHADOW GRAY,SHADOW GRAY,TRIM1#

main67640-90A25-06iFJ62..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

main67640-90A25-06iFJ62..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

FULL TRIM,W/*PW,SEPIA BROWN,SEPIA BROWN,TRIM4#

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main69751-20040iFJ62..WGV..ME198411-198708

FULL TRIM

main69751-20040iFJ60,HJ60..LUB198008-198708

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67805-90A00iBJ60,FJ6#,HJ6#198008-198708

sub67805-90A01

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67805-90A00iBJ60,FJ6#,HJ6#198008-198708

sub67805-90A01

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30040iBJ60,FJ6#,HJ6#198008-198708

67871WEATHERSTRIP, REAR DOOR, RH

main67871-90A00iBJ60,FJ6#,HJ6#198008-198708

67872WEATHERSTRIP, REAR DOOR, LH

main67872-90A00iBJ60,FJ6#,HJ6#198008-198708

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-90A00iFJ62,HJ60..WGV..(ARL,GEN,ME)198008-198708

*TEM,T=4.0,*TEM,T=4.0

sub68113-90A01

main68113-90A01iFJ6#,HJ6#..HRF..ARL198008-198708

*TT,T=4.0,*TT,T=4.0

main68113-90A02iFJ62,HJ60..WGG..(GEN,ME)198510-198708

*TEM,T=4.0,BRONZE,BRONZE,*TEM,T=4.0

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-90A00iBJ60..GEN198008-198708

*TEM,T=4.0,*TEM,T=4.0

sub68114-90A01

main68114-90A01iFJ6#,HJ60..HRF..ARL198008-198708

*TT,T=4.0,*TT,T=4.0

main68114-90A02iFJ62,HJ60..WGG..(GEN,ME)198510-198708

*TEM,T=4.0,BRONZE,BRONZE,*TEM,T=4.0

68123GLASS, REAR DOOR WINDOW, RH

main68123-90A00iFJ60,HJ60..LUB..ARL198008-198708

*TEM,T=4.0,*TEM,T=4.0

sub68123-90A01

main68123-90A01iFJ6#,HJ6#..HRF..ARL198008-198708

*TT,T=4.0,*TT,T=4.0

main68123-90A02iFJ62,HJ60..WGG..(GEN,ME)198510-198708

*TEM,T=4.0,BRONZE,BRONZE,*TEM,T=4.0

68124GLASS, REAR DOOR WINDOW, LH

main68124-90A00iFJ60,HJ60..LUB..ARL198008-198708

*TEM,T=4.0,*TEM,T=4.0

sub68124-90A01

main68124-90A01iFJ6#,HJ60..HRF..ARL198008-198708

*TT,T=4.0,*TT,T=4.0

main68124-90A02iFJ62,HJ60..WGG..(GEN,ME)198510-198708

*TEM,T=4.0,BRONZE,BRONZE,*TEM,T=4.0

68142RUN, REAR DOOR GLASS

main68142-90A00iBJ60,FJ6#,HJ60198008-198510

main68142-90A01iBJ60,FJ62,HJ6#198510-198708

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-90A00iBJ60,FJ6#,HJ6#198008-198512

RH

main68180-90A01iHJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61198512-198708

RH

main68230-90A00iBJ60,FJ6#,HJ6#198008-198512

LH

main68230-90A01iHJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61198512-198708

LH

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-10030iBJ60,FJ6#,HJ6#198008-198512

main68211-90K00iHJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61198512-198708

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-90A00iBJ60,FJ6#,HJ6#198008-198708

RH

main68189-90A00iBJ60,FJ6#,HJ6#198008-198708

LH

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-90A00iBJ60,FJ62,HJ6#..WGV..(ARL,EUR,GEN)198008-198708

main68190-90A01iFJ62..WGV..ME198008-198708

68630CHECK ASSY, REAR DOOR

main68630-90A00iBJ60,FJ6#,HJ6#198008-198708

68630APIN(FOR REAR DOOR CHECK)

main68617-12010iBJ60,FJ6#,HJ60198410-198507

sub68617-90A00

main68617-22010iBJ60,FJ60,HJ60198008-198410

sub68617-12010

main68617-90A00iBJ60,FJ62,HJ6#198507-198606

sub68617-90A01

main68617-90A01iHJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61198606-198708

7456

8401

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9011906312

main90119-06312

9165140610

main91651-40610

9322915010

main93229-15010

34 parts on this diagram · 1 diagram in section
