FRONT DOOR WINDOW REGULATOR & HINGE

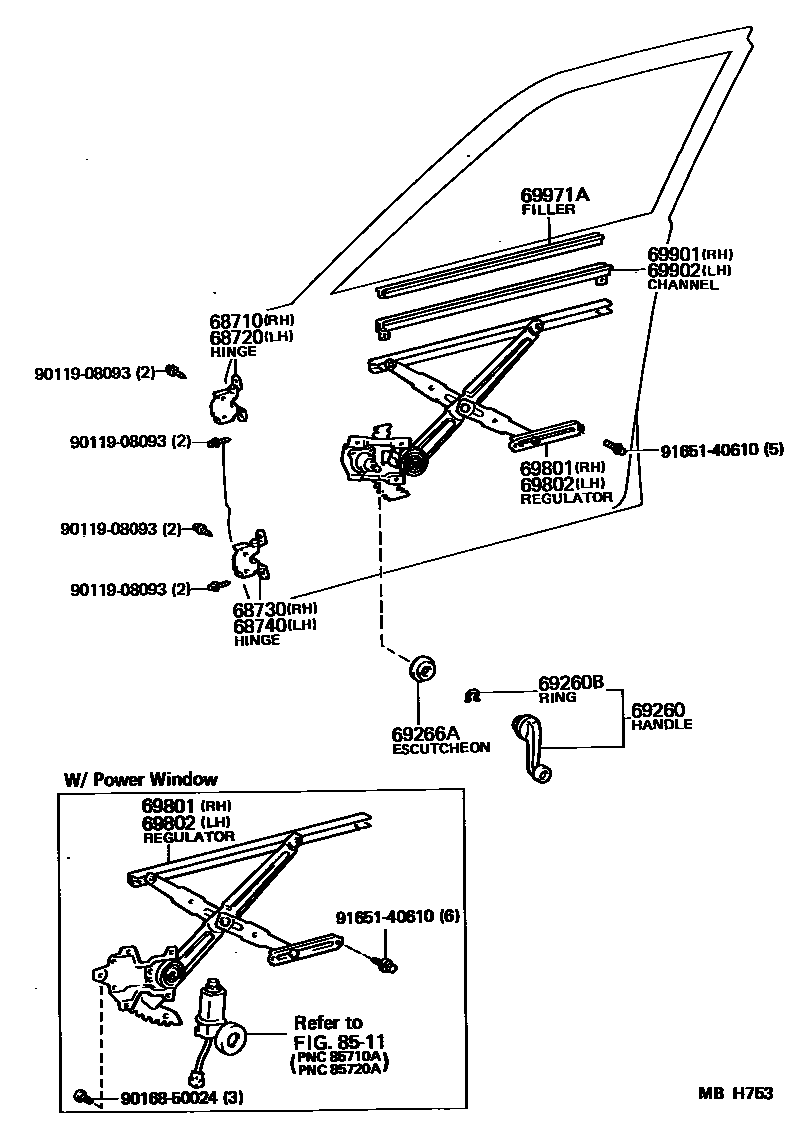

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-14020i198008-198708
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-14020i198008-198708
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-14020i198008-198708
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-14020i198008-198708
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-12010-03i198210-198708
SHADOW GRAY,GRAY,TRIM1#
sub69260-12010
main69260-12010-26i198008-198411
DARK BROWN,BROWN,TRIM4#
sub69260-12010
main69260-12010-46i198411-198708
SEPIA BROWN,BROWN,TRIM4#
sub69260-12010
main69260-12030-01i198103-198210
ENGLAND SPEC,BLACK,BLACK,TRIM1#
main69260-12030-03i198210-198708
ENGLAND SPEC,SHADOW GRAY,GRAY,TRIM1#
main69260-12030-04i198103-198210
ENGLAND SPEC,BLUE,BLUE
main69260-12030-06i198103-198411
ENGLAND SPEC,DARK BROWN,BROWN,TRIM4#
main69260-12030-16i198411-198708
ENGLAND SPEC,SEPIA BROWN,SEPIA BROWN,TRIM4#
main69260-20050-03i198210-198708
SHADOW GRAY,GRAY,TRIM1#
sub69260-20050
main69260-20050-06i198008-198411
DARK BROWN,BROWN,TRIM4#
sub69260-20050
main69260-20050-26i198411-198708
SEPIA BROWN,SEPIA BROWN,TRIM4#
sub69260-20050
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002i198008-198708
sub90520-01274
69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
main69266-22010-08i198008-198610
NATURAL,NATURAL WHITE
sub69266-22010
main69272-30010-08i198103-198708
ENGLAND SPEC,NATURAL,NATURAL WHITE
sub69272-30010
main69285-22010-08i198610-198708
NATURAL,NATURAL WHITE
sub69285-22010
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-90A00i198411-198708
W/POWER WINDOW,W/O *VW
main69801-90A01i198411-198510
W/POWER WINDOW,W/*VW
main69801-90A02i198510-198708
W/POWER WINDOW,W/*VW
main69810-90A00i198008-198409
W/O *VW
sub69810-90A02
main69810-90A01i198008-198409
W/*VW
sub69810-90A03
sub69901-90A04
main69810-90A02i198409-198708
W/O *VW
main69810-90A03i198409-198510
W/*VW
main69810-90A09i198510-198708
W/*VW
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-90A00i198411-198708
W/POWER WINDOW,W/O *VW
main69802-90A01i198411-198510
W/POWER WINDOW,W/*VW
main69802-90A02i198510-198708
W/POWER WINDOW,W/*VW
main69820-90A00i198008-198409
W/O *VW
sub69820-90A02
main69820-90A01i198008-198409
W/*VW
sub69820-90A03
sub69902-90A03
main69820-90A02i198409-198708
W/O *VW
main69820-90A03i198409-198510
W/*VW
main69820-90A09i198510-198708
W/*VW
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
main69901-90A00i198008-198410
main69901-90A01i198008-198410
W/*VW
main69901-90A03i198410-198708
main69901-90A04i198410-198510
W/*VW
main69901-90A05i198510-198708
W/*VW
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
main69901-90A00i198008-198410
main69902-90A00i198008-198410
W/*VW
main69902-90A02i198410-198708
main69902-90A03i198410-198510
W/*VW
main69902-90A04i198510-198708
W/*VW
69971AFILLER, FRONT DOOR GLASS CHANNEL
main69971-90A00i198008-198410
sub69971-90A01
main69971-90A01i198410-198708
sub69971-90K00
main69971-90A02i198410-198505
W/*VW
sub69971-90A01
main69975-90A00i198008-198410
W/*VW
sub69971-60020
8511
9011908093
main90119-08093
9016850024
main90168-50024
9165140610
main91651-40610

16 parts on this diagram · 2 diagrams in section
