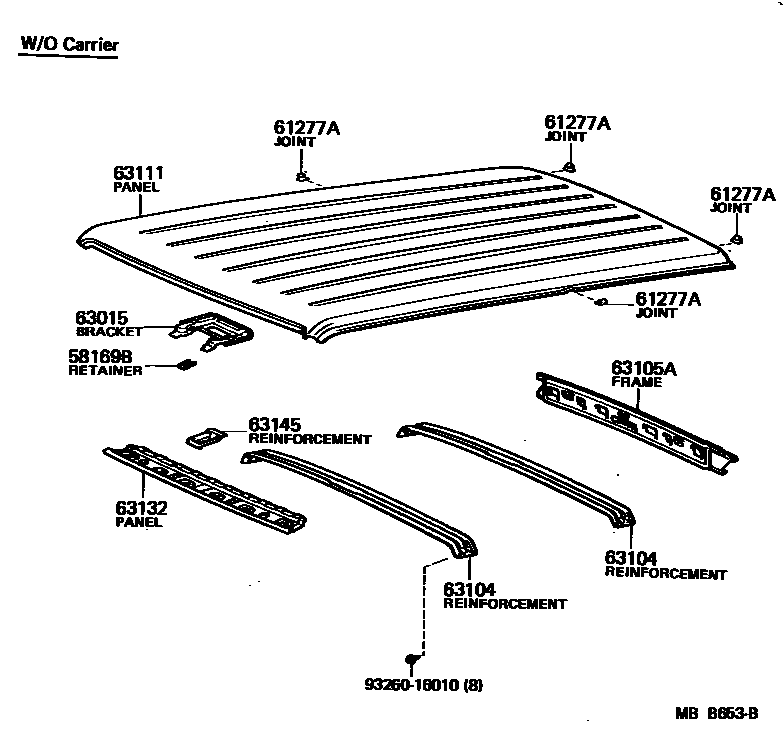

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

58169BRETAINER, REAR HEATER MOUNTING

main58169-90A00iFJ62,HJ6#..WGG198510-198708

61277AJOINT, ROOF DRIP CHANNEL

main61277-90A00iFJ60..WGG..HRF198210-198411

W/ROOF RACK

sub61277-90K00

main61277-90A00iBJ60,FJ6#,HJ6#..WGV198008-198511

sub61277-90K00

main61277-90K00iBJ60,FJ62,HJ6#..WGV198511-198708

63015BRACKET SUB-ASSY, ROOF CONSOLE

main63015-90A00iFJ62,HJ6#..WGG..SRF198510-198708

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63043-90A00iFJ60..HRF198210-198708

FR,W/O SUN ROOF

main63044-90A00iFJ62,HJ6#..HRF198210-198708

CTR,W/O SUN ROOF

main63045-90A00iFJ62,HJ6#..HRF198210-198708

RR,W/O SUN ROOF

main63141-90A00iBJ60,FJ60,HJ60198008-198708

W/O ROOF CARRIER

main63141-90A00iBJ60,FJ60,HJ60198008-198411

W/ROOF CARRIER,SUN ROOF

main63141-90A00iBJ60,FJ62,HJ6#..SRF198411-198708

W/ROOF CARRIER

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-90A00iFJ6#,HJ6#..SRF..LUB198008-198708

main63105-90A01iBJ60,FJ6#,HJ6#..SRF..SOB198008-198608

main63105-90A03iFJ60..HRF198210-198708

sub63105-90A09

main63105-90A11iFJ6#..HRF..SOB198305-198608

main63105-90A14iBJ60,FJ62,HJ6#..SRF..SOB198608-198708

main63105-90A15iFJ62..HRF..SOB198608-198708

63111PANEL, ROOF

main63101-90A01iBJ60..GEN198008-198708

W/ROOF CARRIER

main63111-90A00iBJ60,FJ60,HJ60198008-198708

main63111-90A01iFJ62,HJ6#..SRF198210-198708

W/ROOF CARRIER

main63111-90A02iFJ6#,HJ6#..HRF198210-198708

W/SUN ROOF

main63111-90A03iFJ62,HJ6#..HRF198210-198708

63132PANEL, WINDSHIELD HEADER, INNER

main63132-90A00iBJ60,FJ6#,HJ6#198008-198708

63145REINFORCEMENT, WINDSHIELD HEADER INNER PANEL

main63145-90A00iBJ60,FJ6#,HJ6#198008-198708

9326016010

main93260-16010

9 parts on this diagram · 9 diagrams in section
