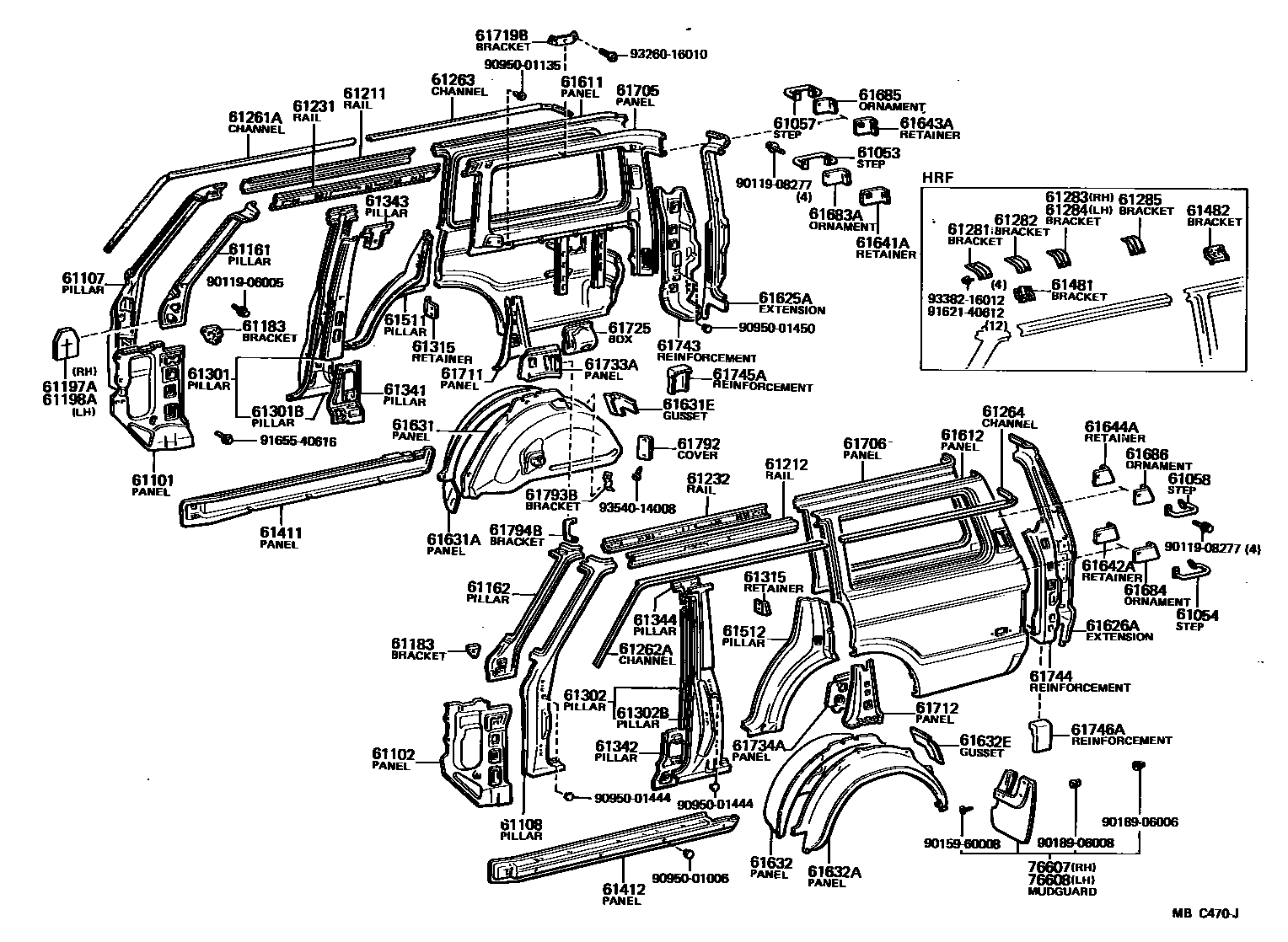

SIDE MEMBER

0001 1 0002 1

61053STEP SUB-ASSY, QUARTER PANEL, NO.1 RH

main61053-90A00iBJ60,FJ6#,HJ60..LHD..(GEN,ME)198010-198708

61054STEP SUB-ASSY, QUARTER PANEL, NO.1 LH

main61054-90A00iBJ60,FJ6#,HJ60..RHD..GEN198010-198708

61057STEP SUB-ASSY, QUARTER PANEL, NO.2 RH

main61057-90A00iBJ60,FJ6#,HJ60..LHD..(GEN,ME)198010-198708

61058STEP SUB-ASSY, QUARTER PANEL, NO.2 LH

main61058-90A00iBJ60,FJ6#,HJ60..RHD..GEN198010-198708

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-90A00iBJ60,FJ60,HJ60198008-198411

sub61101-90A04

main61101-90A08iBJ60,FJ62,HJ6#198411-198708

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-90A04iBJ60,FJ60,HJ60198008-198411

sub61102-90A07

main61102-90A07iBJ60,FJ62,HJ6#198411-198708

61107PILLAR SUB-ASSY, FRONT BODY OUTER, RH

main61027-90A00iBJ60,FJ60,HJ60198008-198309

main61027-90A03iFJ60..HRF198210-198309

W/SUN ROOF

main61027-90A04iBJ60,FJ6#,HJ6#198309-198708

main61027-90A05iFJ6#,HJ6#..HRF198309-198512

W/SUN ROOF

main61027-90A07iBJ60,FJ62,HJ6#..ARL,GEN,ME198510-198708

W/SNORKEL

main61027-90A08iFJ62,HJ6#..HRF..(ARL,GEN,ME)198510-198512

W/SUN ROOF & SNORKEL

main61027-90A10iHJ60..5F..HRF;FJ62,HJ61..HRF198512-198708

W/SUN ROOF

main61027-90A11iFJ62,HJ61..HRF;HJ60..HRF..GEN198512-198708

W/SUN ROOF & SNORKEL

61108PILLAR SUB-ASSY, FRONT BODY OUTER, LH

main61028-90A00iBJ60,FJ60,HJ60198008-198309

main61028-90A03iFJ60..HRF198210-198309

W/SUN ROOF

main61028-90A04iBJ60,FJ6#,HJ6#198309-198708

main61028-90A05iFJ6#,HJ6#..HRF198309-198512

W/SUN ROOF

main61028-90A07iHJ60..5F..HRF;FJ62,HJ61..HRF198512-198708

W/SUN ROOF

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-90A00iBJ60,FJ6#,HJ60198008-198510

sub61161-90A02

main61161-90A02iBJ60,FJ62,HJ6#198510-198708

sub61161-90A03

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-90A00iBJ60,FJ60,HJ60198008-198010

sub61162-90A02

main61162-90A01iBJ60,FJ6#,HJ60198010-198510

main61162-90A02iBJ60,FJ62,HJ6#198510-198708

sub61162-90A03

61183BRACKET, INSTRUMENT PANEL SIDE

main61183-90A01iBJ60,FJ6#,HJ6#198008-198708

RH

main61184-90A00iBJ60,FJ6#,HJ6#198008-198708

LH

61197ACOVER, FRONT PILLAR, RH

main61197-90A00iFJ62,HJ6#..4FC198411-198708

61198ACOVER, FRONT PILLAR, LH

main61197-90A00iFJ62,HJ6#..4FC198411-198708

61211RAIL, ROOF SIDE, OUTER RH

main61211-90A00iBJ60,FJ60,HJ60198008-198210

sub61211-90H00

main61211-90A01iBJ60,FJ60,HJ60198210-198302

main61211-90H00iBJ60,FJ6#,HJ6#198302-198708

61212RAIL, ROOF SIDE, OUTER LH

main61212-90A00iBJ60,FJ60,HJ60198008-198210

sub61212-90H00

main61212-90A01iBJ60,FJ60,HJ60198210-198302

main61212-90H00iBJ60,FJ6#,HJ6#198302-198708

61231RAIL, ROOF SIDE, INNER RH

main61231-90A00iBJ60,FJ60,HJ60198008-198210

sub61231-90A02

sub61211-90A01

main61231-90A02iBJ60,FJ6#,HJ6#198210-198708

sub61231-90A03

61232RAIL, ROOF SIDE, INNER LH

main61232-90A00iBJ60,FJ60,HJ60198008-198210

sub61232-90A01

sub61212-90A01

main61232-90A01iBJ60,FJ6#,HJ6#198210-198708

sub61232-90A02

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-90A00iBJ60,FJ6#,HJ6#198008-198708

61262ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-90A00iBJ60,FJ6#,HJ6#198008-198708

61263CHANNEL, ROOF DRIP, REAR RH

main61267-90A00iBJ60,FJ6#,HJ6#198008-198708

61264CHANNEL, ROOF DRIP, REAR LH

main61268-90A00iBJ60,FJ6#,HJ6#198008-198708

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-90A00iFJ6#,HJ6#..HRF198210-198708

W/SUN ROOF

61282BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.2

main61282-90A00iFJ6#,HJ6#..HRF198210-198708

W/SUN ROOF

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-90A00iFJ6#,HJ6#..HRF198210-198708

W/SUN ROOF

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61283-90A00iFJ6#,HJ6#..HRF198210-198708

W/SUN ROOF

61285BRACKET, SLIDING ROOF HOUSING SIDE

main61285-90A00iFJ6#,HJ6#..HRF198210-198708

W/SUN ROOF

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61330-90A00iBJ60,FJ60,HJ60..EUR,GEN198008-198309

sub61330-90A02

main61330-90A01iFJ60,HJ60..ARL198008-198305

sub61330-90A02

main61330-90A02iFJ60,HJ60..ARL198305-198309

main61330-90A03iBJ60,FJ6#,HJ6#..EUR,GEN,ME198309-198708

sub61330-90A04

main61330-90A04iHJ60..4FC..EUR;FJ62,HJ61..ARL,EUR;HJ60..5F..(ARL,EUR)198309-198708

main61330-90A04iBJ60..GEN198608-198708

W/*DL

61301BPILLAR, CENTER BODY, OUTER RH

main61301-90A02iBJ60,FJ60,HJ60198008-198305

sub61301-90A03

main61301-90A03iBJ60,FJ60,HJ60198305-198309

main61301-90A04iBJ60,FJ62,HJ60..GEN,ME198309-198708

sub61301-90A05

main61301-90A05iHJ60..4FC..EUR;FJ62,HJ61..ARL,EUR;HJ60..5F..(ARL,EUR)198309-198708

main61301-90A05iBJ60..GEN198608-198708

W/*DL

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61340-90A00iBJ60,FJ60,HJ60..EUR,GEN198008-198309

sub61340-90A03

main61340-90A01iFJ60,HJ60..ARL198008-198305

sub61340-90A03

main61340-90A03iFJ60,HJ60..ARL198305-198309

main61340-90A04iFJ62..ME198411-198510

*47

sub61340-90A05

main61340-90A04iFJ62..GEN;BJ60,FJ60,HJ60..EUR,GEN,ME198309-198708

sub61340-90A05

main61340-90A05iFJ62..GEN198608-198708

W/*DL

main61340-90A05iFJ6#,HJ6#..ARL198309-198608

main61340-90A06iFJ62..ME198411-198708

sub61340-90A07

main61340-90A07iFJ62..ME198608-198708

W/*DL

61302BPILLAR, CENTER BODY, OUTER LH

main61302-90A03iBJ60,FJ60,HJ60198008-198305

sub61302-90A05

main61302-90A05iBJ60,FJ60,HJ60198305-198309

main61302-90A06iBJ60,FJ62,HJ6#..EUR,GEN198309-198708

sub61302-90A07

main61302-90A06iFJ62..ME198411-198510

*47

sub61302-90A07

main61302-90A07iHJ60..4FC..EUR;FJ62,HJ61..ARL,EUR;HJ60..5F..(ARL,EUR)198608-198708

W/*DL

main61302-90A07iFJ6#,HJ6#..ARL198309-198608

main61302-90A08iFJ62..ME198411-198708

sub61302-90A09

main61302-90A09iFJ62..ME198608-198708

W/*DL

61315RETAINER, DOOR LOCK STRIKER PLATE

main61503-90A00iBJ60,FJ6#,HJ6#198008-198708

RH

main61504-90A00iBJ60,FJ6#,HJ6#198008-198708

LH

61341PILLAR, CENTER BODY, INNER LOWER RH

main61345-90A00iBJ60,FJ6#,HJ6#198008-198708

61342PILLAR, CENTER BODY, INNER LOWER LH

main61346-90A00iBJ60,FJ6#,HJ6#198008-198708

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-90A00iBJ60,FJ6#,HJ6#198008-198708

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-90A00iBJ60,FJ6#,HJ6#198008-198708

61411PANEL, ROCKER, OUTER RH

main61401-90A02iBJ60,FJ60,HJ60198008-198309

main61401-90A06iBJ60,FJ6#,HJ6#198309-198708

61412PANEL, ROCKER, OUTER LH

main61402-90A02iBJ60,FJ60,HJ60198008-198309

main61402-90A06iBJ60,FJ6#,HJ6#198309-198708

61481BRACKET, ROOF SIDE RAIL REINFORCE, NO.1

main61481-90A00iFJ60..HRF198210-198708

W/O SUN ROOF

main61481-90A00iFJ60..HRF198210-198309

W/SUN ROOF

main61481-90A01iFJ6#,HJ6#..HRF198309-198708

61482BRACKET, ROOF SIDE RAIL REINFORCE, NO.2

main61482-90A00iFJ60..HRF198210-198708

W/O SUN ROOF

61511PILLAR, QUARTER LOCK, RH

main61511-90A01iBJ60,FJ6#,HJ6#198008-198708

61512PILLAR, QUARTER LOCK, LH

main61512-90A01iBJ60,FJ6#,HJ6#198008-198708

61611PANEL, QUARTER, RH

main61611-90A00iBJ60,FJ60,HJ60198008-198411

sub61611-90A15

main61611-90A15iBJ60,FJ62,HJ6#198411-198708

main61611-90A18iFJ62,HJ6#..WGG198411-198708

W/*OF

61612PANEL, QUARTER, LH

main61612-90A00iBJ60,FJ60,HJ60198008-198411

sub61612-90A12

main61612-90A12iBJ60,FJ62,HJ6#198411-198708

main61612-90A15iFJ62,HJ6#..WGG198411-198708

W/*OF

61625AEXTENSION SUB-ASSY, QUARTER PANEL, RH

main61031-90A00iFJ60,HJ60..LUB198008-198212

main61031-90A01iBJ60,FJ60,HJ60..SRF..SOB198008-198411

main61031-90A02iFJ62,HJ6#..WGG198210-198708

main61031-90A03iBJ60,FJ62,HJ6#..WGV198411-198708

61626AEXTENSION SUB-ASSY, QUARTER PANEL, LH

main61032-90A00iFJ60,HJ60..LUB;FJ60..HRF..SOB198008-198708

main61032-90A01iBJ60,FJ60,HJ60..SRF..SOB198008-198411

main61032-90A02iBJ60,FJ62,HJ6#..WGV198411-198708

61631PANEL, QUARTER WHEEL HOUSE, RH

main61607-90A00iBJ60,FJ60,HJ60198008-198411

sub61607-90A04

main61607-90A02iBJ60,FJ60..LHD..SOB..GEN198008-198411

PARALLEL SEAT

sub61607-90A12

main61607-90A03iFJ60,HJ60..HRF198305-198411

TRANSEVERSE SEAT

main61607-90A04iBJ60,FJ62,HJ60..GEN,ME198411-198708

main61607-90A06iBJ60,FJ62,HJ60..WGV..(GEN,ME)198411-198708

PARALLEL SEAT

main61607-90A07iFJ62..HRF198411-198708

TRANSEVERSE SEAT

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-90A03iBJ60,FJ6#,HJ6#198008-198708

sub61631-90A05

main61631-90A05iFJ60,HJ60..HRF198305-198411

W/SUN ROOF,TRANSVERSE SEAT

main61631-90A05iFJ60..HRF198210-198708

W/SUN ROOF

61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-90A00iBJ60,FJ6#,HJ6#198008-198708

61632PANEL, QUARTER WHEEL HOUSE, LH

main61608-90A00iHJ60..HRF..SOB198008-198708

main61608-90A02iFJ62..WGG..SRF..SOB198008-198708

PARALLEL SEAT

main61608-90A03iFJ6#..HRF198305-198708

TRANSVERSE SEAT

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-90A03iBJ60,FJ6#,HJ6#198008-198708

sub61632-90A05

main61632-90A05iFJ60,HJ60..HRF198305-198411

W/TRANSVERSE SEAT,SUN ROOF

main61632-90A05iFJ60..HRF198210-198708

W/SUN ROOF

61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-90A00iBJ60,FJ6#,HJ6#198008-198708

61641ARETAINER, QUARTER PANEL STEP, NO.1 RH

main61641-90A00iBJ60,FJ6#,HJ60..LHD..(GEN,ME)198010-198708

61642ARETAINER, QUARTER PANEL STEP, NO.1 LH

main61642-90A00iBJ60,FJ6#,HJ60..RHD..GEN198010-198708

61643ARETAINER, QUARTER PANEL STOP, NO.2 RH

main61643-90A00iBJ60,FJ6#,HJ60..LHD..(GEN,ME)198010-198708

61644ARETAINER, QUARTER PANEL STEP, NO.2 LH

main61644-90A00iBJ60,FJ6#,HJ60..RHD..GEN198010-198708

61683AORNAMENT, QUARTER PANEL STEP, NO.1 RH

main61683-90A00iBJ60,FJ6#,HJ60..LHD..(GEN,ME)198010-198708

61684ORNAMENT, QUARTER PANEL STEP, NO.1 LH

main61684-90A00iBJ60,FJ6#,HJ60..RHD..GEN198010-198708

61685ORNAMENT, QUARTER PANEL STEP, NO.2 RH

main61685-90A00iBJ60,FJ6#,HJ60..LHD..(GEN,ME)198010-198708

61686ORNAMENT, QUARTER PANEL STEP, NO.2 LH

main61686-90A00iBJ60,FJ6#,HJ60..RHD..GEN198010-198708

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-90A00iBJ60,FJ60,HJ60198008-198210

main61705-90A02iBJ60,FJ60..SOB..GEN198008-198210

PARALLEL SEAT

main61705-90A03iBJ60,FJ62,HJ60..SRF..(GEN,ME)198210-198701

main61705-90A05iFJ62,HJ6#..SRF..ARL198510-198701

W/*ODAC

main61705-90A05iBJ60,FJ60,HJ60..WGV..GEN198210-198305

PARALLEL SEAT

main61705-90A05iFJ60,HJ60..HRF..LUB..GEN198305-198411

TRANSVERSE SEAT

main61705-90A05iBJ60,FJ6#,HJ60..WGV..(GEN,ME)198305-198701

PARALLEL SEAT OR W/*ODAC

main61705-90A07iFJ6#..HRF..ARL198305-198701

main61705-90A08iFJ60..HRF..SOB198305-198701

TRANSVERSE SEAT

main61705-90A09iFJ62,HJ60..HRF..(GEN,ME)198411-198701

W/*ODAC

main61705-90A10iFJ62,HJ6#..HRF..ARL198411-198701

W/*ODAC

main61705-90A11iFJ62,HJ60..SRF..SOB..(GEN,ME)198510-198701

W/*ODAC & PARALLEL SEAT

main61705-90A12iFJ62,HJ60..HRF..GEN198510-198701

main61705-90A16iFJ62,HJ6#..SRF..(ARL,EUR)198701-198708

W/ROOF CARRIER

main61705-90A18iBJ60,FJ62,HJ60..WGV..(GEN,ME)198701-198708

W/ROOF CARRIER

main61705-90A18iFJ62,HJ60..SRF..ARL198701-198708

W/ROOF CARRIER *ODAC

main61705-90A19iHJ61..HRF;HJ60..HRF..LUB..EUR198701-198708

main61705-90A20iFJ62,HJ60..HRF..(GEN,ME)198701-198708

TRANSVERSE SEAT

main61705-90A21iFJ62,HJ60..HRF..(GEN,ME)198701-198708

W/*ODAC

main61705-90A22iFJ62,HJ61..HRF..ARL198701-198708

W/*ODAC

main61705-90A24iFJ62,HJ60..HRF..GEN198701-198708

main61705-90A27iBJ60,FJ62,HJ60..SRF..(GEN,ME)198701-198708

main61705-90A28iBJ60,FJ62,HJ60..WGV..(GEN,ME)198701-198708

PARALLEL SEAT OR W/ODAC

main61705-90A28iFJ62,HJ6#..SRF..ARL198701-198708

W/*ODAC

main61705-90A29iFJ62,HJ60..SRF..SOB..(GEN,ME)198701-198708

W/ROOF CARRIER *ODAC & *PRLS

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-90A00iBJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR198008-198210

main61706-90A02iFJ60,HJ60..LUB198008-198210

W/*RW

main61706-90A03iBJ60,FJ60..SOB..GEN198008-198210

PARALLEL SEAT

main61706-90A05iBJ60,FJ60;HJ60..LHD..SRF..EUR;HJ60..SRF..(ARL,GEN)198210-198309

sub61706-90A18

main61706-90A07iFJ60,HJ60..SRF..LUB..(ARL,EUR)198210-198309

W/*RW

sub61706-90A19

main61706-90A08iFJ60..HRF..LUB..GEN198210-198309

PARALLEL SEAT

sub61706-90A20

main61706-90A08iFJ60..HRF..LUB..GEN198305-198309

TRANSVERSE SEAT

sub61706-90A20

main61706-90A12iFJ60,HJ60..HRF..LUB..(ARL,GEN)198210-198309

PARALLEL SEAT,W/*RW

sub61706-90A21

main61706-90A13iFJ60,HJ60..HRF..(ARL,EUR)198305-198411

TRANSVERSE SEAT

main61706-90A13iFJ62,HJ60..HRF..(ARL,EUR)198411-198708

main61706-90A14iFJ62,HJ60..HRF..(ARL,EUR)198411-198708

W/*RW

main61706-90A14iFJ60,HJ60..HRF..(ARL,EUR)198305-198411

TRANSVERSE SEAT,W/*RW

main61706-90A16iFJ62,HJ60..HRF..(GEN,ME)198305-198510

TRANSVERSE SEAT

main61706-90A17iFJ60..HRF..SOB198305-198510

TRANSVERSE SEAT,W/*RW

main61706-90A18iBJ60,FJ60;HJ60..HRF..GEN;HJ60..LHD..SRF..EUR;HJ60..SRF..(ARL,GEN)198309-198411

W/BACK DOOR OPENER

sub61706-90A26

main61706-90A18iBJ60,FJ62,HJ60..GEN,ME198411-198510

sub61706-90A26

main61706-90A19iFJ6#,HJ60..SRF..LUB..(ARL,EUR)198309-198510

W/*RW

sub61706-90A27

main61706-90A19iFJ60,HJ60..LHD..GEN198309-198411

W/BACK DOOR OPENER,*RW

sub61706-90A27

main61706-90A20iFJ60,HJ60..HRF..LUB..GEN198309-198510

PARALLEL SEAT

sub61706-90A28

main61706-90A20iFJ60,HJ60..HRF..LUB..GEN198309-198411

TRANSVERSE SEAT

sub61706-90A28

main61706-90A21iFJ60,HJ60..HRF..LUB..(ARL,GEN)198309-198411

TRANSVERSE SEAT,W/*RW

sub61706-90A29

main61706-90A21iFJ60,HJ60..HRF..LUB..(ARL,GEN)198309-198411

PARALLEL SEAT,W/*RW

sub61706-90A29

main61706-90A26iFJ62,HJ60..LUB..(GEN,ME)198411-198510

W/BACK DOOR OPENER

main61706-90A27iHJ60..LHD..SRF..LUB..EUR198411-198510

W/BACK DOOR OPENER & *PW

main61706-90A27iFJ62,HJ60..SRF..LUB..ARL198411-198510

W/BACK DOOR OPENER,*RW

main61706-90A28iFJ62,HJ60..HRF..LUB..(GEN,ME)198411-198510

TRANSVERSE SEAT,W/BACK OPENER

main61706-90A29iFJ62,HJ60..HRF..LUB..(GEN,ME)198411-198510

TRANSVERSE,W/BACK OPENER,*RW

main61706-90A30iFJ62,HJ60..HRF..(ARL,EUR)198411-198708

W/BACK DOOR OPENER

main61706-90A31iFJ62,HJ60..HRF..(ARL,EUR)198411-198708

W/BACK DOOR OPENER & *PW

main61706-90A33iHJ6#..LHD..SRF..EUR198510-198701

sub61706-90A49

main61706-90A35iFJ62,HJ6#..WGG..SRF198510-198701

W/*RW

sub61706-90A51

main61706-90A35iFJ62..LHD..(4FC,5F)..SRF..LUB..GEN198510-198701

VENEZUELA SPEC

sub61706-90A51

main61706-90A36iFJ62..WGG..SRF..SOB198510-198701

PARALLEL SEAT

sub61706-90A52

main61706-90A38iHJ6#..HRF..(ARL,EUR)198510-198701

sub61706-90A54

main61706-90A39iFJ62,HJ6#..HRF..(ARL,EUR)198510-198701

W/*RW

sub61706-90A55

main61706-90A40iFJ62,HJ60..HRF..(GEN,ME)198510-198701

TRANSVERSE SEAT

sub61706-90A56

main61706-90A41iFJ62,HJ60..HRF..(GEN,ME)198510-198701

W/*RW,TRANSVERSE

sub61706-90A57

main61706-90A42iHJ60..HRF..SOB198510-198701

sub61706-90A58

main61706-90A43iFJ62,HJ60..HRF..GEN198510-198701

W/*RW

sub61706-90A59

main61706-90A49iHJ6#..LHD..SRF..EUR198701-198708

W/ROOF CARRIER

sub61706-90A66

main61706-90A51iFJ62,HJ6#..WGG..SRF198701-198708

VENEZUELA SPEC,W/ROOF CARRIER

sub61706-90A66

main61706-90A51iFJ62,HJ6#..WGG..SRF198701-198708

W/ROOF CARRIER *RW

sub61706-90A66

main61706-90A52iBJ60,FJ62..WGV..(GEN,ME)198701-198708

W/ROOF CARRIER & PARALLEL SEAT

main61706-90A54iHJ60..HRF..EUR;FJ62,HJ61..HRF..ARL198701-198708

sub61706-90A70

main61706-90A55iHJ60..HRF..EUR;FJ62,HJ61..HRF..ARL198701-198708

W/*RW

sub61706-90A70

main61706-90A56iFJ62,HJ60..HRF..(GEN,ME)198701-198708

TRANSVERSE SEAT

sub61706-90A69

main61706-90A57iFJ62,HJ60..HRF..(GEN,ME)198701-198708

W/*RW,TRANSVERSE

sub61706-90A69

main61706-90A58iHJ60..HRF..SOB198701-198708

sub61706-90A68

main61706-90A59iFJ62,HJ60..HRF..GEN198701-198708

W/*RW

sub61706-90A68

main61706-90A63iHJ6#..LHD..SRF..EUR198701-198708

main61706-90A64iFJ62..LHD..(4FC,5F)..SRF..LUB..GEN198701-198708

W/*RW

main61706-90A64iFJ62..LHD..(4FC,5F)..SRF..LUB..GEN198701-198708

VENEZUELA SPEC

61711PANEL, ROOF SIDE, OUTER RH

main61711-90A00iBJ60,FJ60,HJ60198008-198210

main61711-90A01iBJ60,FJ6#,HJ6#198210-198708

61712PANEL, ROOF SIDE, OUTER LH

main61712-90A00iBJ60,FJ60,HJ60198008-198210

main61712-90A01iBJ60,FJ6#,HJ6#198210-198708

61719BBRACKET, ROOF SIDE, INNER

main61719-90A00iFJ6#,HJ60..HRF198305-198708

TRANSVERSE SEAT

main61719-90A00iFJ62,HJ6#..WGG..HRF198510-198708

W/*ODAC OR TRANSVERS SEAT

61725BOX, FUEL INLET

main61709-90A00iBJ60,FJ60,HJ60198008-198411

main61709-90A01iBJ60,FJ62,HJ6#198411-198708

main61709-90A02iBJ60,FJ62,HJ6#198411-198708

W/FUEL LID OPENER

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-90A00iBJ60,FJ60,HJ60198008-198411

main61733-90A01iFJ60,HJ60..ARL,EUR198210-198411

W/RR=*ELR

main61733-90A02iBJ60,FJ62,HJ60..GEN,ME198411-198708

sub61733-90A05

main61733-90A03iBJ60..LHD..4F198411-198708

W/RR=*ELR

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-90A00iBJ60,FJ62,HJ60..GEN,ME198008-198510

sub61734-90A03

sub90480-45002

main61734-90A01iFJ62..LHD..HRF198210-198708

W/RR=*ELR

main61734-90A03iBJ60,FJ62,HJ60..GEN,ME198510-198708

sub61734-90A05

61743REINFORCEMENT, BACK DOOR OPENING, INNER RH

main61743-90A00iFJ60,HJ60..LUB198008-198210

sub61743-90A02

main61743-90A01iBJ60,FJ60,HJ60198008-198708

main61743-90A02iFJ62,HJ60..LUB198411-198708

sub61743-90A01

main61743-90A02iFJ60..LUB..ARL;FJ60..5F..SOB..GEN;FJ60..4F..WGG..HRF;HJ60..5F..LUB..(ARL,GEN)198210-198411

W/MAGNET LOCK

sub61743-90A01

61744REINFORCEMENT, BACK DOOR OPENING, INNER LH

main61034-90A00iFJ62,HJ6#..LUB198510-198708

main61034-90A01iBJ60,FJ62,HJ6#..SOB198510-198708

main61744-90A00iFJ60,HJ60..LUB198008-198210

sub61744-90A01

main61744-90A01iBJ60,FJ6#,HJ60198008-198510

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-90A01iBJ60,FJ6#,HJ6#198008-198708

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-90A01iBJ60,FJ6#,HJ6#198008-198708

61792COVER, ROOF SIDE INNER SERVICE HOLE

main61791-90A00iBJ60,FJ6#,HJ6#198008-198708

sub61791-90B01

61793BBRACKET, COOLER CONDENSER, NO.1

main61793-90A00iFJ62,HJ6#..HRF198411-198708

W/*ODAC

61794BBRACKET, COOLER CONDENSER, NO.2

main61794-90A00iFJ62,HJ6#..HRF198411-198708

W/*ODAC

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-69015iBJ60,FJ6#,HJ6#198008-198708

main76607-90A01iFJ62,HJ6#..WGG198411-198708

W/*OF

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-69015iBJ60,FJ6#,HJ6#198008-198708

main76608-90A01iFJ62,HJ6#..WGG198411-198708

W/*OF

9011906005

main90119-06005

9011908277

main90119-08277

9015960008

main90159-60008

9018906006

main90189-06006

9018906008

main90189-06008

9095001006

main90950-01006

9095001135

main90950-01135

9095001444

main90950-01444

9095001450

main90950-01450

9162140612

main91621-40612

9165540616

main91655-40616

9326016010

main93260-16010

9338216012

main93382-16012

9354014008

main93540-14008

90 parts on this diagram · 2 diagrams in section
