HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-90A01iHJ60..MTM;HJ60..4FC..EUR;BJ60,FJ62,HJ61..ARL,EUR,GEN198008-198708

main53301-90A03iBJ60,FJ62..ME198608-198708

53341BINSULATOR, HOOD

main53341-90A00iBJ60,FJ6#,HJ60198008-198708

main53341-90A01iHJ60..LHD..5F..LUB..EUR198411-198708

W/NOISE MEASURES

53341CCLIP(FOR HOOD INSULATOR)

main90467-09008iHJ60..LHD..5F..EUR;HJ60..4FC..SOB..EUR198411-198510

W/NOISE MEASURES

main90467-09014iBJ60,FJ60,HJ60198008-198708

53382BUMPER, HOOD, FRONT

main53382-20011iBJ60,FJ6#,HJ6#198008-198511

sub53382-90A00

main53382-90A00iHJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61198511-198708

sub53382-90K01

53386BUMPER, HOOD, REAR

main53382-30060iBJ60,FJ6#,HJ6#198008-198708

sub53384-60030

53387SEAL, HOOD TO RADIATOR SUPPORT

main53381-90A00iBJ60,FJ6#,HJ6#198008-198708

53387ACLIP(FOR HOOD TO RADIATOR SUPPORT SET)

main90467-08008iBJ60,FJ60,HJ60198008-198109

main90467-08011iBJ60,FJ6#,HJ6#198109-198708

53801FENDER SUB-ASSY, FRONT RH

main53801-90A02iFJ62,HJ60..RHD..GEN198510-198708

SOUTH AFRICA SPEC

main53801-90A02iFJ60,HJ60..EUR198008-198708

main53801-90A24iBJ60,FJ62,HJ6#..ARL,GEN,ME198008-198708

main53801-90A51iFJ62,HJ6#..WGG..(ARL,GEN,ME)198411-198708

W/*OF

main53801-90A55iHJ6#..WGG..EUR198411-198708

W/*OF

main53801-90A57iHJ60..RHD..EUR;HJ60..LHD..5F..SRF..LUB..EUR198411-198708

W/FR MUDGUARD & SIDE STEP

main53801-90A69iBJ60,FJ62,HJ6#..MTM..(ARL,GEN,ME)198510-198708

W/SNORKEL TYPE

main53801-90A73iFJ62,HJ6#..MTM..WGG..(ARL,GEN,ME)198510-198708

W/SNORKEL TYPE,*OF

53802FENDER SUB-ASSY, FRONT LH

main53802-90A02iFJ60,HJ60..EUR198008-198708

main53802-90A02iFJ62,HJ60..RHD..GEN198510-198708

SOUTH AFRICA SPEC

main53802-90A19iBJ60,FJ60,HJ60..ARL,GEN198008-198708

main53802-90A40iFJ62,HJ6#..WGG..(ARL,GEN,ME)198411-198708

W/*OF

main53802-90A45iHJ6#..WGG..EUR198411-198708

W/*OF

main53802-90A50iHJ60..RHD..EUR;HJ60..LHD..5F..SRF..LUB..EUR198411-198708

W/FR MUDGUARD & SIDE STEP

53932PANEL SUB-ASSY, FRONT END

main53903-90A02iBJ60,FJ60,HJ60198008-198411

W/O HEADLAMP CLEANER

main53903-90A03iFJ60,HJ60..LHD..EUR198008-198411

W/*HC

main53903-90A04iFJ60,HJ60..EUR198008-198411

*FRG,ENGLAND SPEC

main53903-90A05iFJ60,HJ60..LHD..LUB..EUR198210-198411

W/*HC,WEST GERMANY SPEC

main53903-90A05iFJ60,HJ60..LHD..EUR198008-198210

W/*HC,*FRG

main53903-90A08iBJ60,FJ62,HJ6#198411-198708

main53903-90A09iHJ6#..LHD..EUR198411-198708

W/HEADLAMP CLEANER

main53903-90A10iHJ60..RHD..EUR;HJ60..4FC..HRF..EUR;HJ60..LHD..5F..LUB..EUR198411-198510

*FRG,ENGLAND SPEC

main53903-90A10iHJ60..LHD..5F..SRF..EUR198510-198708

*FRG

main53903-90A10iHJ60..LHD..5F..SRF..EUR198510-198708

ENGLAND SPEC

main53903-90A11iHJ60..4FC..HRF..EUR;HJ60..LHD..5F..LUB..EUR198411-198708

W/*HC,*FRG

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-69015iBJ60,FJ6#,HJ6#198008-198708

main76603-90A01iFJ62,HJ6#..WGG198411-198708

W/*OF

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-69015iBJ60,FJ6#,HJ6#198008-198708

main76604-90A01iFJ62,HJ6#..WGG198411-198708

W/*OF

76605MUDGUARD SUB-ASSY, FRONT FENDER, FRONT RH

main76605-69015iHJ60..RHD..EUR;HJ60..LHD..5F..SRF..LUB..EUR198008-198708

*FRG,ENGLAND SPEC

main76623-90A01iHJ60..RHD..EUR;HJ60..LHD..5F..SRF..LUB..EUR198411-198708

*FRG,ENGLAND SPEC,W/*OF

76606MUDGUARD SUB-ASSY, FRONT FENDER, FRONT LH

main76606-69015iFJ60,HJ60..EUR198008-198708

*FRG,ENGLAND SPEC

main76624-90A01iHJ60..RHD..EUR;HJ60..LHD..5F..EUR;HJ60..4FC..SOB..EUR;HJ60..4FC..HRF..EUR198411-198708

*FRG,ENGLAND SPEC,W/*OF

9015960008

main90159-60008

9015960331

main90159-60331

9015960332

main90159-60332

9017008023

main90170-08023

9017906097

main90179-06097

9018906006

main90189-06006

9161160614

main91611-60614

9165140614

main91651-40614

9165540820

main91655-40820

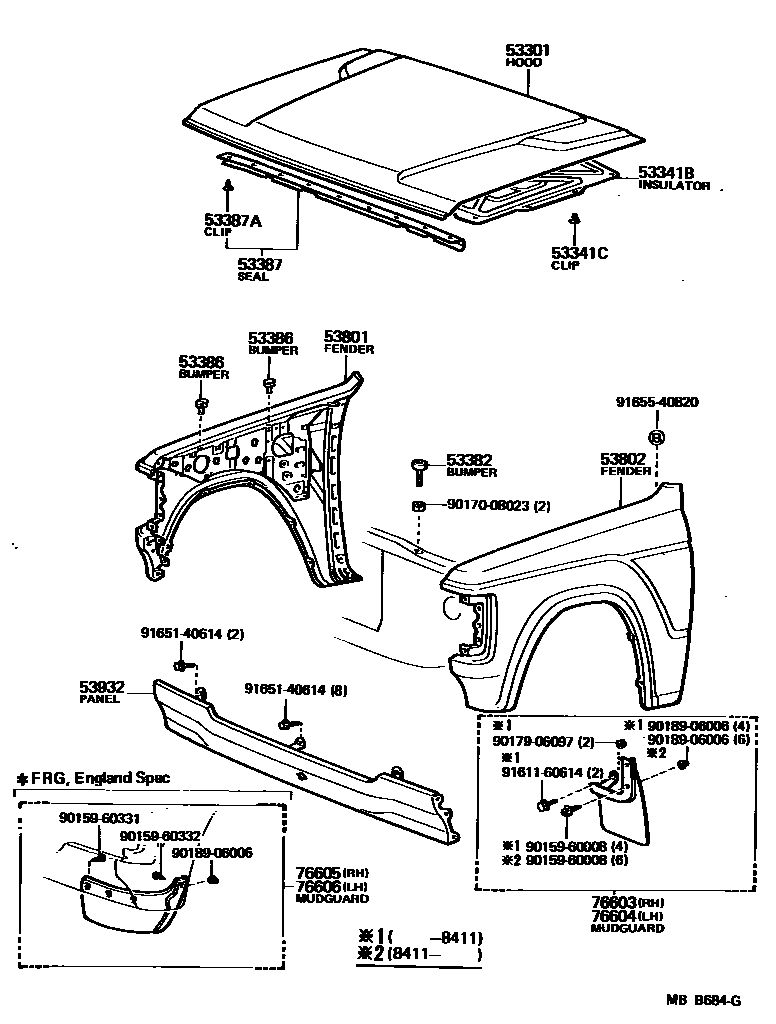

23 parts on this diagram · 2 diagrams in section
