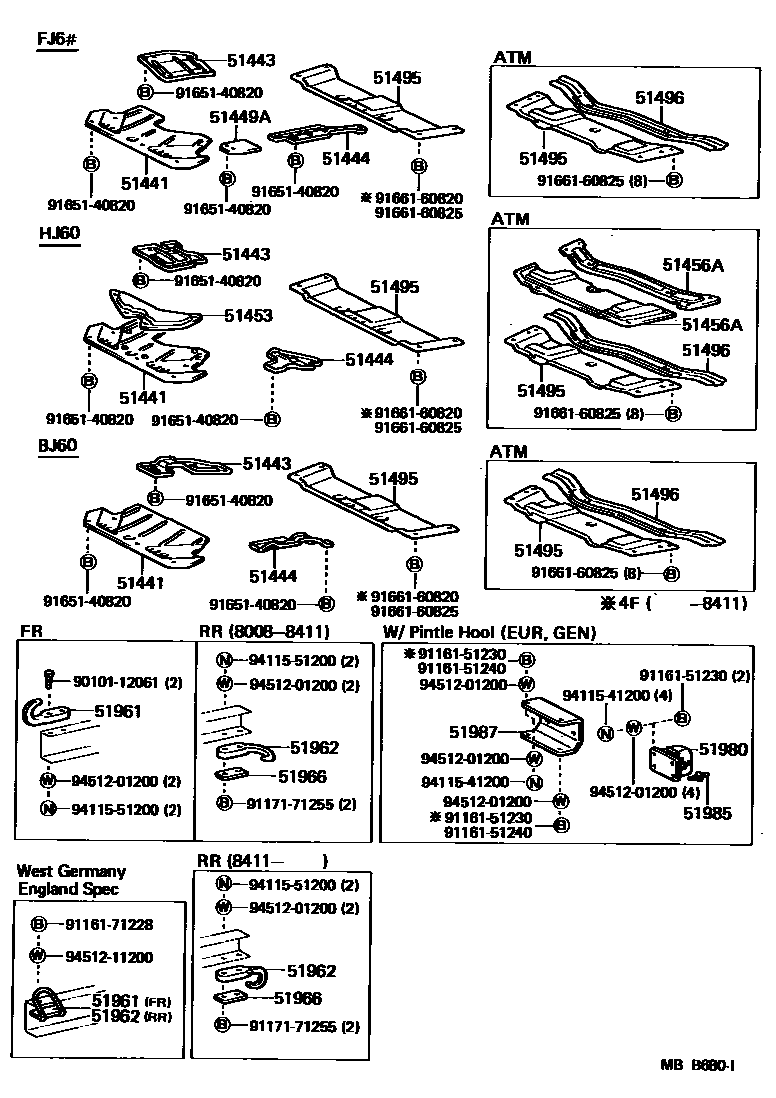

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51441COVER, ENGINE UNDER, NO.1

main51441-60060iFJ6#,HJ60198008-198510

sub51441-60061

main51441-60061iHJ61..ARL198510-198708

main51441-60070iBJ60198008-198708

main51441-60110iHJ60..LHD..4FC..SRF198411-198510

SWITZERLAND SPEC

sub51440-60020

main51441-60111iHJ61..EUR198510-198708

sub51440-60020

main51441-60111iHJ60..LHD..4FC198510-198608

SWITZERLAND SPEC

sub51440-60020

51443COVER, ENGINE UNDER, REAR RH

main51443-60030iFJ60198008-198411

sub51443-60031

main51443-60031iFJ62198411-198708

main51443-60040iHJ60198008-198510

main51443-60050iBJ60198008-198411

main51443-60051iBJ60198411-198708

main51443-60100iHJ6#198510-198708

51444COVER, ENGINE UNDER, REAR LH

main51444-60040iFJ60198008-198411

main51444-60041iFJ62198411-198708

main51444-60050iHJ60198008-198411

sub51444-60051

main51444-60051iHJ60198411-198510

main51444-60060iBJ60198008-198411

main51444-60070iHJ60198510-198708

main51450-60010iHJ61..EUR198510-198708

51449ACOVER, ENGINE SIDE UNDER, LH

main51449-60010iFJ60198309-198411

*SAA

main51449-60010iFJ62..ME198411-198708

51453SILENCER, ENGINE UNDER COVER, FRONT

main51453-60080iHJ60..LHD..4FC..SRF198411-198510

main51453-60081iHJ60..LHD..4FC198510-198708

51456ASEAL, ENGINE UNDER COVER, REAR

main51455-60010iHJ60..LHD..4FC..SRF198411-198510

FR

main51456-60020iHJ60..LHD..4FC..SRF198411-198510

RR

51495COVER, TRANSMISSION UNDER

main51495-60070iBJ60,FJ60,HJ60198008-198411

main51495-60090iFJ60,HJ60..5F198210-198411

main51495-60091iHJ61..5F..ARL198411-198611

main51495-60140iHJ61..4FC198411-198611

main51495-60141iFJ62,HJ60..4FC198611-198611

main51495-60150iHJ61..4FC198510-198608

main51495-60150iHJ60..LHD..4FC..SRF198411-198608

SWITZERLAND SPEC

main58208-60040iHJ61..5F..ARL198611-198708

main58260-60020iHJ61..EUR198510-198708

51496COVER, TRANSMISSION UNDER, NO.2

main51496-60040iHJ61..4FC198411-198611

sub51496-60041

main51496-60041iFJ62,HJ61..4FC;HJ60..4FC..EUR198611-198708

main51496-60050iHJ61..4FC198510-198608

main51496-60050iHJ60..LHD..4FC..SRF198411-198608

SWITZERLAND SPEC

main58270-60010iHJ61..EUR198510-198603

main58270-60060iHJ61..EUR198603-198611

main58270-60061iHJ61..EUR198611-198708

51961HOOK, NO.1

main51961-60010iBJ60,FJ6#,HJ6#198008-198708

main51961-60030iHJ60..5F..SRF..LUB..EUR198102-198708

*FRG

51962HOOK, NO.2

main51961-36040iBJ60,FJ62,HJ6#198411-198708

main51961-60030iFJ60,HJ60..WGG..EUR198102-198708

*FRG

main51965-60010iBJ60,FJ60,HJ60198008-198411

51966RETAINER, REAR HOOK

main51966-60010iBJ60,FJ6#,HJ6#198008-198708

51980HOOK ASSY, PINTLE

main51980-60010iHJ60..LHD..EUR;BJ60,FJ62,HJ60..GEN,ME198008-198708

sub51980-60011

51985HOOK, EYELET PINTLE

main51985-60011iBJ60,FJ60,HJ60..EUR,GEN198008-198708

51987BRACKET, PINTLE HOOK

main51987-60010iBJ60,FJ60,HJ60..EUR,GEN198008-198411

main51987-60030iHJ60..LHD..EUR;BJ60,FJ62,HJ60..GEN,ME198411-198708

9010112061

main90101-12061

9116151230

main91161-51230

9116151240

main91161-51240

9116171228

main91161-71228

9117171255

main91171-71255

9165140820

main91651-40820

9166160820

main91661-60820

9166160825

main91661-60825

9411541200

main94115-41200

9411551200

main94115-51200

9451201200

main94512-01200

9451211200

main94512-11200

26 parts on this diagram · 2 diagrams in section
