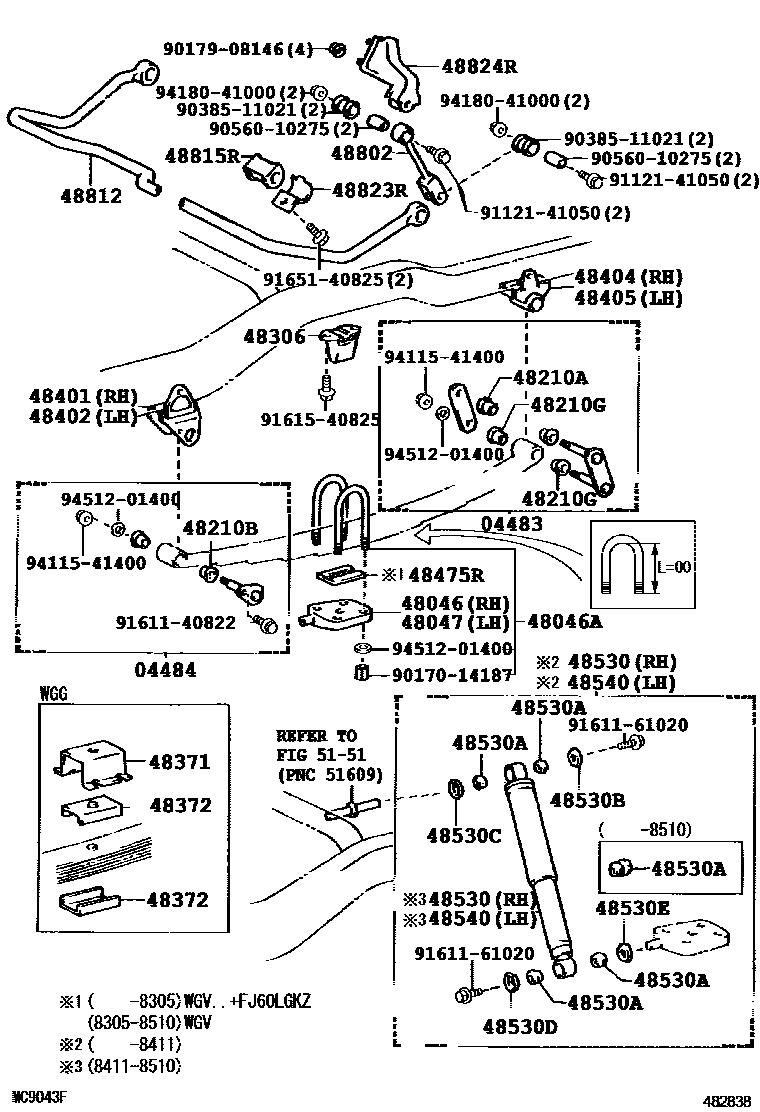

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0007 1 0008 1 0010 1

04483SHACKLE KIT, REAR SPRING

main04483-60050iBJ60,FJ6#,HJ6#198008-198708

sub04483-60101

04484PIN KIT, REAR SPRING

main04482-60040iBJ60,FJ6#,HJ6#198008-198708

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-60040iBJ60,FJ6#,HJ60..SOB198008-198510

main48046-60041iBJ60,FJ62,HJ6#..WGV198510-198708

sub48046-60042

main48046-60050iFJ60..5F..HRF;FJ60,HJ60..SRF..LUB198008-198510

main48046-60051iFJ62,HJ6#..WGG198510-198708

sub48046-60052

main48046-60052iFJ62,HJ61..LUB..ARL;HJ60..SRF..LUB..ARL198707-198708

48046ABOLT, U(FOR REAR SPRING)

main90117-14178iBJ60,FJ62,HJ6#..WGV198608-198708

L=185,L=185

sub90117-14021

main90117-14179iBJ60,FJ62,HJ6#..WGV198608-198708

L=195,L=195,W/DISTANCE PLATE

sub90117-14032

main90117-14180iFJ62,HJ61..WGG;HJ60..MTM..WGG;HJ60..4FC..EUR198608-198708

L=205,L=205,W/DISTANCE PLATE

sub90117-14002

main90118-14108iBJ60,FJ62,HJ6#..WGV198510-198608

L=185

main90118-14109iFJ60..HRF..LUB..GEN198008-198411

L=195

sub90117-14179

main90118-14109iBJ60,FJ62,HJ6#..WGV198510-198608

L=195,W/DISTANCE PLATE

sub90117-14179

main90118-14110iFJ60..HRF..LUB..GEN198311-198411

L=205

sub90117-14180

main90118-14110iFJ60,HJ60..HRF..LUB198305-198411

W/TRANSVERSE SEAT,L=205

sub90117-14180

main90118-14110iFJ62,HJ6#..WGG198411-198608

L=205,W/DISTANCE PLATE

sub90117-14180

main90118-14160iBJ60,FJ6#,HJ60..SOB198008-198510

L=180

sub90117-14004

sub90170-14187

sub94512-01400

main90118-14190iFJ60..5F..HRF;FJ60,HJ60..SRF..LUB198008-198708

L=190,L=190

sub90117-14021

main90118-14190iFJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV198008-198510

L=190,L=190,W/DISTANCE PLATE

sub90117-14021

main90118-14210iFJ60,HJ60..HRF..LUB198305-198411

L=200,W/TRANSVERSE SEAT,L=200

sub90117-14032

main90118-14210iFJ62,HJ6#..WGG198311-198708

L=200,L=200

sub90117-14032

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-60040iFJ60..4F..WGG..HRF;BJ60,FJ60,HJ60..WGV198008-198510

main48047-60041iBJ60,FJ62,HJ6#..WGV198510-198708

sub48047-60042

main48047-60050iFJ6#,HJ60..LUB198008-198510

main48047-60051iFJ62,HJ6#..WGG198510-198708

sub48047-60052

main48047-60052iFJ62,HJ61..LUB..ARL;HJ60..SRF..LUB..ARL198707-198708

48210SPRING ASSY, REAR RH

main48210-60240iBJ60,FJ62,HJ60..RHD..SOB198608-198708

VAN TYPE

main48210-60240iBJ60,FJ6#,HJ60..RHD..SOB198008-198608

main48210-60250iFJ60,HJ60..RHD..SRF..LUB198008-198411

main48210-60270iBJ60,FJ62,HJ6#..LHD..WGV198608-198708

VAN TYPE

main48210-60270iBJ60,FJ6#,HJ6#..LHD..WGV198008-198608

main48210-60280iFJ60,HJ60..LHD..SRF..LUB198008-198411

main48210-60380iFJ62,HJ60..LHD..HRF..LUB198411-198510

W/10R15-6 TIRE & *TRS

main48210-60380iHJ60..LHD..SRF..LUB..EUR198411-198708

W/10R15-6 TIRE

main48210-60380iFJ62,HJ61..HRF..ARL198510-198707

main48210-60380iFJ6#,HJ60..HRF..ARL198305-198510

W/*TRS

main48210-60390iFJ60,HJ60..LHD..HRF..LUB198305-198411

W/*TRS

main48210-60400iFJ62..SRF..SOB..ME198411-198708

W/*TRS

main48210-60400iFJ60,HJ60..RHD..SRF..LUB..(ARL,GEN)198311-198708

main48210-60410iHJ60..HRF..SOB198311-198708

main48210-60500iFJ62,HJ6#..RHD..LUB198411-198708

W/10R15-6 TIRE

main48210-60520iFJ62,HJ60..SOB..ARL198707-198708

sub48210-60521

main48210-60610iBJ60,FJ62,HJ60..RHD..SOB198608-198708

main48210-60620iBJ60,FJ62,HJ6#..LHD..WGV198608-198708

main48210-60660iFJ62,HJ6#..SRF..LUB..ARL198707-198708

8-LAEF

sub48210-60661

main48210-60670iFJ62,HJ61..HRF..ARL198707-198708

sub48210-60671

main48210-60680iFJ62,HJ6#..SRF..LUB..ARL198707-198708

8-LAEF,W/10R15-6 TIRE

sub48210-60681

main48210-60690iFJ62,HJ61..HRF..ARL198707-198708

8-LEAF

sub48210-60691

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90389-18002iBJ60,FJ6#,HJ6#198008-198708

48210BBUSH(FOR REAR SPRING PIN)

main90389-18002iBJ60,FJ6#,HJ6#198008-198708

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90389-18002iBJ60,FJ6#,HJ6#198008-198708

48306BUMPER SUB-ASSY, REAR SPRING

main48306-60030iBJ60,FJ6#,HJ6#198008-198708

main48306-60050iFJ62,HJ6#..WGG198411-198708

W/10R15-6 TIRE

48371RETAINER, REAR SPRING PAD

main48371-60010iFJ60..HRF..LUB..GEN198008-198411

main48371-60020iFJ60..5F..HRF;FJ60,HJ60..SRF..LUB198008-198411

W/DISTANCE PLATE

main48371-60030iFJ60,HJ60..SRF..LUB..(ARL,GEN)198311-198708

main48371-60040iFJ62,HJ6#..WGG..(EUR,GEN,ME)198311-198708

W/DISTANCE PLATE

main48371-60050iFJ62,HJ61..LUB..ARL;HJ60..SRF..LUB..ARL198707-198708

main48371-60060iFJ62,HJ61..LUB..ARL;HJ60..SRF..LUB..ARL198707-198708

W/DISTANCE PLATE

48372PAD, REAR SPRING

main48372-23030iFJ60..5F..HRF;FJ60,HJ60..SRF..LUB198008-198708

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-60040iBJ60,FJ60,HJ60198008-198411

main48414-60041iBJ60,FJ62,HJ60198411-198510

main48414-60042iBJ60,FJ62,HJ6#198510-198708

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48415-60040iBJ60,FJ60,HJ60198008-198411

main48415-60041iBJ60,FJ62,HJ60198411-198510

main48415-60042iBJ60,FJ62,HJ6#198510-198708

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-60030iBJ60,FJ6#,HJ6#198008-198708

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48416-60030iBJ60,FJ6#,HJ6#198008-198708

48475RPLATE, DISTANCE(FOR REAR)

main48475-60020iBJ60,FJ6#,HJ6#..WGV198008-198708

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-60081iBJ60,FJ62,HJ60198411-198510

sub48531-69066

main48531-60160iBJ60,FJ62,HJ6#198510-198708

sub48531-69085

main48531-60170iFJ62,HJ6#..WGG..(EUR,GEN,ME)198510-198708

W/10R15-6 TIRE

sub48531-69095

main48531-69065iBJ60,FJ60,HJ60198008-198411

sub48531-69067

main48531-69105iFJ62,HJ61..LUB..ARL;HJ60..SRF..LUB..ARL198707-198708

MARK 48531-60190

sub48531-69106

main48531-69115iFJ62,HJ60..SOB..ARL198707-198708

MARK 48531-60220

sub48531-69116

main48531-69125iFJ62,HJ61..LUB..ARL;HJ60..SRF..LUB..ARL198707-198708

W/10R15-6 TIRE

sub48531-69126

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16004iBJ60,FJ6#,HJ60198008-198501

main90385-16007iBJ60,FJ62,HJ60198501-198510

main90385-19003iHJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR198707-198708

main90385-19057iBJ60,FJ62,HJ6#198510-198707

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03007iBJ60,FJ6#,HJ60198008-198510

main90948-03011iBJ60,FJ62,HJ6#198510-198708

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBJ60,FJ6#,HJ60198008-198510

main90948-03011iBJ60,FJ62,HJ6#198510-198708

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03007iBJ60,FJ6#,HJ60198008-198510

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iBJ60,FJ6#,HJ60198008-198510

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-60081iBJ60,FJ62,HJ60198411-198510

sub48531-69066

main48531-69065iBJ60,FJ60,HJ60198008-198411

sub48531-69067

main48541-60020iBJ60,FJ62,HJ6#..EUR,GEN,ME198510-198708

sub48541-69015

main48541-69025iFJ62,HJ61..LUB..ARL;HJ60..SRF..LUB..ARL198707-198708

MARK 48541-60050

sub48541-69026

main48541-69035iFJ62,HJ60..SOB..ARL198707-198708

MARK 48541-60040

sub48541-69036

main48541-69045iFJ62,HJ61..LUB..ARL;HJ60..SRF..LUB..ARL198707-198708

W/10R15-6 TIRE

sub48541-69046

48802LINK SUB-ASSY, STABILIZER

main48802-60020iFJ62,HJ6#..WGG198411-198708

48812BAR, STABILIZER, REAR

main48812-60020iFJ62,HJ6#..WGG198411-198708

main48812-60040iFJ62,HJ61..LUB..ARL;HJ60..SRF..LUB..ARL198707-198708

48815RBUSH, STABILIZER(FOR REAR)

main48815-14020iFJ62..LHD..(4FC,5F)..SRF..LUB..GEN198411-198708

VENEZUELA SPEC

sub48815-38010

main48815-20060iFJ62,HJ6#..WGG198411-198708

main48815-30050iFJ62,HJ61..LUB..ARL;HJ60..SRF..LUB..ARL198707-198708

48823RCOVER, STABILIZER LINK(FOR REAR)

main48823-27010iFJ62,HJ6#..WGG198411-198708

main48823-35030iFJ62..LHD..(4FC,5F)..SRF..LUB..GEN198411-198708

VENEZUELA SPEC

48824RBRACKET, STABILIZER(FOR REAR)

main48825-60030iFJ62,HJ60..LUB198411-198510

main48825-60031iFJ62,HJ6#..WGG198510-198708

5151

9017014187

main90170-14187

9017908146

main90179-08146

9038511021

main90385-11021

9056010275

main90560-10275

9112141050

main91121-41050

9161140822

main91611-40822

9161161020

main91611-61020

9161540825

main91615-40825

9165140825

main91651-40825

9411541400

main94115-41400

9418041000

main94180-41000

9451201400

main94512-01400

42 parts on this diagram · 6 diagrams in section
