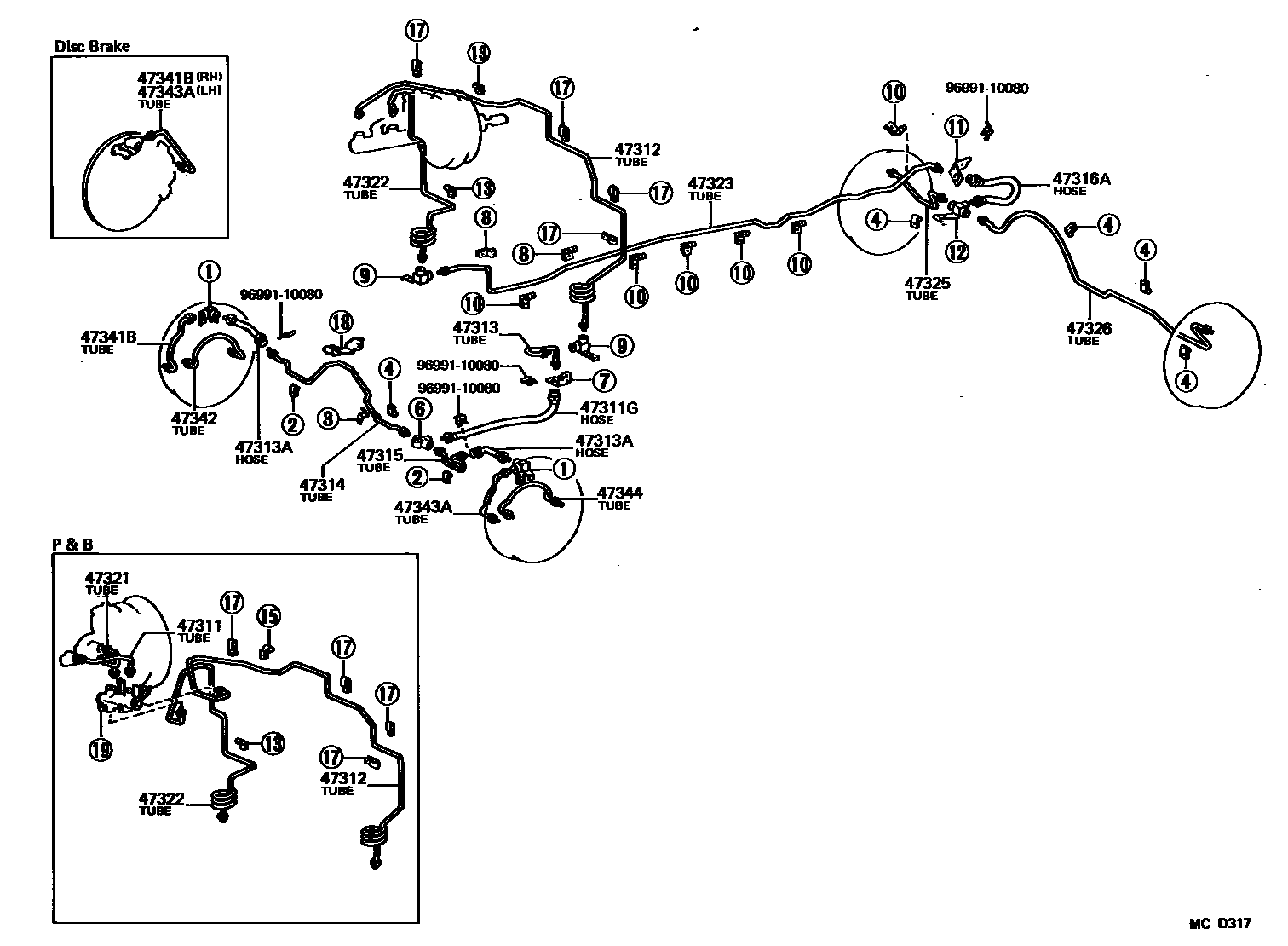

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1

47311TUBE, FRONT BRAKE, NO.1

main47311-30320iBJ60,FJ60,HJ60..ARL,GEN198008-198301

main47311-30330iBJ60,HJ60..RHD..(ARL,GEN)198210-198411

main47311-30400iBJ60,FJ62,HJ6#..ARL,GEN,ME198411-198708

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96940-33005iFJ6#,HJ6#198008-198708

main96940-34305iBJ60198008-198708

47312TUBE, FRONT BRAKE, NO.2

main47312-60180iFJ60,HJ60..RHD..GEN198008-198411

main47312-60181iFJ62,HJ60..RHD..(EUR,GEN)198411-198708

main47312-60190iFJ60,HJ60..RHD..(ARL,GEN)198008-198210

DISC BRAKE

main47312-60191iFJ60,HJ60..RHD..(ARL,GEN)198210-198411

DISC BRAKE

main47312-60192iFJ62,HJ6#..RHD..(ARL,GEN)198411-198704

DISC BRAKE

main47312-60192iFJ62,HJ60..RHD..GEN198704-198708

main47312-60200iFJ60,HJ60..LHD..GEN198008-198411

main47312-60201iFJ62,HJ60..LHD..(EUR,GEN)198411-198503

main47312-60202iFJ62,HJ6#..LHD..(EUR,GEN)198503-198708

main47312-60220iFJ60..EUR198008-198411

main47312-60230iFJ60,HJ60..LHD..GEN198008-198301

DISC BRAKE

main47312-60240iHJ60..LHD..EUR198008-198301

main47312-60241iHJ60..LHD..EUR198301-198411

main47312-60250iBJ60..RHD198008-198411

main47312-60251iBJ60..RHD198411-198708

main47312-60260iBJ60..RHD198008-198210

DISC BRAKE

main47312-60261iBJ60..RHD198210-198411

DISC BRAKE

main47312-60262iBJ60..RHD198411-198708

DISC BRAKE

main47312-60270iBJ60..LHD198008-198411

main47312-60271iBJ60..LHD..GEN198411-198708

main47312-60290iBJ60..LHD198008-198301

DISC BRAKE

main47312-60291iBJ60..LHD198301-198411

DISC BRAKE

main47312-60292iBJ60..LHD198411-198708

DISC BRAKE

main47312-60310iHJ60..RHD..EUR198103-198210

main47312-60311iFJ60..RHD..GEN198407-198411

DISC BRAKE,*SA

main47312-60311iHJ60..RHD..EUR198210-198411

main47312-60440iHJ60..LHD..GEN198210-198411

DISC BRAKE

main47312-60441iFJ62,HJ60..LHD..(GEN,ME)198411-198503

DISC BRAKE

main47312-60442iFJ62,HJ60..LHD..(GEN,ME)198503-198708

DISC BRAKE

main47312-60590iHJ60..HRF..EUR198304-198411

SWEDEN SPEC

main47312-60630iFJ62,HJ61..ARL;HJ60..SRF..ARL198704-198708

DISC BRAKE

47313TUBE, FRONT BRAKE, NO.3

main47313-60090iFJ60,HJ60..ARL,GEN198008-198411

sub47313-60091

main47313-60091iFJ62,HJ6#..ARL,GEN,ME198411-198708

main47313-60100iHJ60..RHD..LUB..GEN198407-198411

*SA

sub47313-60101

main47313-60100iFJ60,HJ60..EUR198008-198411

sub47313-60101

main47313-60101iHJ6#..EUR198411-198708

main47313-60101iFJ62..RHD..GEN198411-198708

*SA

main47313-60110iBJ60198008-198411

main47313-60111iBJ60198411-198708

main47313-60170iHJ60..HRF..EUR198304-198411

SWEDEN SPEC

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96940-39855iBJ60,FJ6#,HJ6#198008-198708

47314TUBE, FRONT BRAKE, NO.4

main47315-60260iFJ60,HJ60198008-198411

main47315-60261iFJ62,HJ6#198411-198601

main47315-60262iFJ62,HJ61;HJ60..SRF;HJ60..5F..HRF198601-198608

main47315-60270iBJ60198008-198411

main47315-60271iBJ60198411-198510

main47315-60272iBJ60198510-198601

main47315-60273iBJ60198601-198608

main47315-60274iBJ60198608-198708

main47315-60330iHJ60..HRF..EUR198304-198411

SWEDEN SPEC

main47315-60340iFJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR198608-198708

47315TUBE, FRONT BRAKE, NO.5

main47316-60140iFJ60,HJ60198008-198411

main47316-60141iFJ62,HJ60198411-198510

main47316-60150iBJ60198008-198411

main47316-60151iBJ60198411-198601

main47316-60152iBJ60198601-198608

main47316-60153iBJ60198608-198708

main47316-60210iFJ62,HJ6#198510-198601

main47316-60211iFJ62,HJ61;HJ60..SRF;HJ60..5F..HRF198601-198608

main47316-60270iHJ60..HRF..EUR198304-198411

SWEDEN SPEC

main47316-60310iFJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR198608-198708

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33605iBJ60,FJ60,HJ60198008-198411

sub90947-02492

main96940-33805iBJ60,FJ62,HJ6#198411-198708

47321TUBE, REAR BRAKE, NO.1

main47321-30050iBJ60,HJ60..LHD..GEN198210-198411

main47321-30120iFJ62..ARL,GEN;BJ60,HJ6#..ARL,GEN,ME198411-198708

main47321-60100iBJ60,HJ60..LHD..GEN198008-198301

main47321-60110iFJ60..LHD..GEN198210-198411

47322TUBE, REAR BRAKE, NO.2

main47322-60080iFJ60,HJ60..RHD..GEN198008-198411

main47322-60081iFJ62,HJ60..RHD..(EUR,GEN)198411-198708

main47322-60090iFJ60,HJ60..RHD..(ARL,GEN)198008-198210

DISC BRAKE

main47322-60091iFJ60,HJ60..RHD..(ARL,GEN)198210-198411

DISC BRAKE

main47322-60092iFJ62,HJ60..RHD..GEN198704-198708

main47322-60092iFJ62,HJ6#..RHD..(ARL,GEN)198411-198704

DISC BRAKE

main47322-60100iFJ60,HJ60..LHD..GEN198008-198411

main47322-60101iFJ62,HJ60..LHD..(EUR,GEN)198411-198503

main47322-60102iFJ62,HJ6#..LHD..(EUR,GEN)198503-198708

main47322-60120iFJ60..EUR198008-198411

main47322-60130iFJ60,HJ60..LHD..GEN198008-198301

DISC BRAKE

main47322-60140iHJ60..LHD..EUR198008-198301

main47322-60141iHJ60..LHD..EUR198301-198411

main47322-60150iBJ60..RHD198008-198411

main47322-60151iBJ60..RHD198411-198708

main47322-60160iBJ60..RHD198008-198210

DISC BRAKE

main47322-60161iBJ60..RHD198210-198411

DISC BRAKE

main47322-60162iBJ60..RHD198411-198708

DISC BRAKE

main47322-60170iBJ60..LHD198008-198411

main47322-60171iBJ60..LHD..GEN198411-198708

main47322-60190iBJ60..LHD198008-198301

DISC BRAKE

main47322-60191iBJ60..LHD198301-198411

DISC BRAKE

main47322-60192iBJ60..LHD198411-198708

DISC BRAKE

main47322-60210iHJ60..RHD..EUR198103-198210

main47322-60211iHJ60..RHD..EUR198210-198411

main47322-60211iHJ60..RHD..LUB..GEN198407-198708

DISC BRAKE,*SA

main47322-60280iHJ60..LHD..GEN198210-198411

DISC BRAKE

main47322-60281iFJ62,HJ60..LHD..(GEN,ME)198411-198503

DISC BRAKE

main47322-60282iFJ62,HJ60..LHD..(GEN,ME)198503-198708

DISC BRAKE

main47322-60480iHJ60..HRF..EUR198304-198411

SWEDEN SPEC

main47322-60510iFJ62,HJ61..ARL;HJ60..SRF..ARL198704-198708

DISC BRAKE

47323TUBE, REAR BRAKE, NO.3

main47323-60030iBJ60,FJ60,HJ60..ARL,GEN198008-198411

main47323-60031iBJ60,FJ62,HJ6#..ARL,GEN,ME198411-198708

main47323-60040iHJ60..RHD..LUB..GEN198407-198411

*SA

main47323-60040iFJ60,HJ60..EUR198008-198411

main47323-60041iFJ62..RHD..GEN198411-198708

*SA

main47323-60041iHJ6#..EUR198411-198708

main47323-60340iHJ60..HRF..EUR198304-198411

SWEDEN SPEC

47325TUBE, REAR BRAKE, NO.5

main47325-60010iBJ60,FJ60,HJ60198008-198411

sub47325-60011

main47325-60011iBJ60,FJ62,HJ6#198411-198608

main47325-60090iHJ60..HRF..EUR198304-198411

SWEDEN SPEC

main47325-60100iHJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR198608-198708

47326TUBE, REAR BRAKE, NO.6

main47326-60010iBJ60,FJ60,HJ60198008-198411

sub47326-60011

main47326-60011iBJ60,FJ62,HJ6#198411-198608

main47326-60100iHJ60..HRF..EUR198304-198411

SWEDEN SPEC

main47326-60110iHJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR198608-198708

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-60020iBJ60,FJ60,HJ60..GEN198008-198011

DRUM BRAKE

main47341-60021iBJ60,FJ6#,HJ60..GEN198011-198708

DRUM BRAKE

main47341-60030iBJ60,FJ60,HJ60198008-198408

DISC BRAKE

sub47341-60031

main47341-60031iBJ60,FJ6#,HJ6#198408-198708

DISC BRAKE

main47341-60031iHJ60..HRF..EUR198304-198411

SWEDEN SPEC

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-60010iBJ60,FJ60,HJ60..GEN198008-198011

main47342-60011iBJ60,FJ6#,HJ60..GEN198011-198708

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-60010iBJ60,FJ60,HJ60..GEN198008-198011

DRUM BRAKE

main47343-60011iBJ60,FJ6#,HJ60..GEN198011-198708

DRUM BRAKE

main47343-60020iBJ60,FJ60,HJ60198008-198408

DISC BRAKE

sub47343-60021

main47343-60021iBJ60,FJ6#,HJ6#198408-198708

DISC BRAKE

main47343-60021iHJ60..HRF..EUR198304-198411

SWEDEN SPEC

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-60010iBJ60,FJ60,HJ60..GEN198008-198011

main47342-60011iBJ60,FJ6#,HJ60..GEN198011-198708

9699110080

main96991-10080

18 parts on this diagram · 9 diagrams in section
