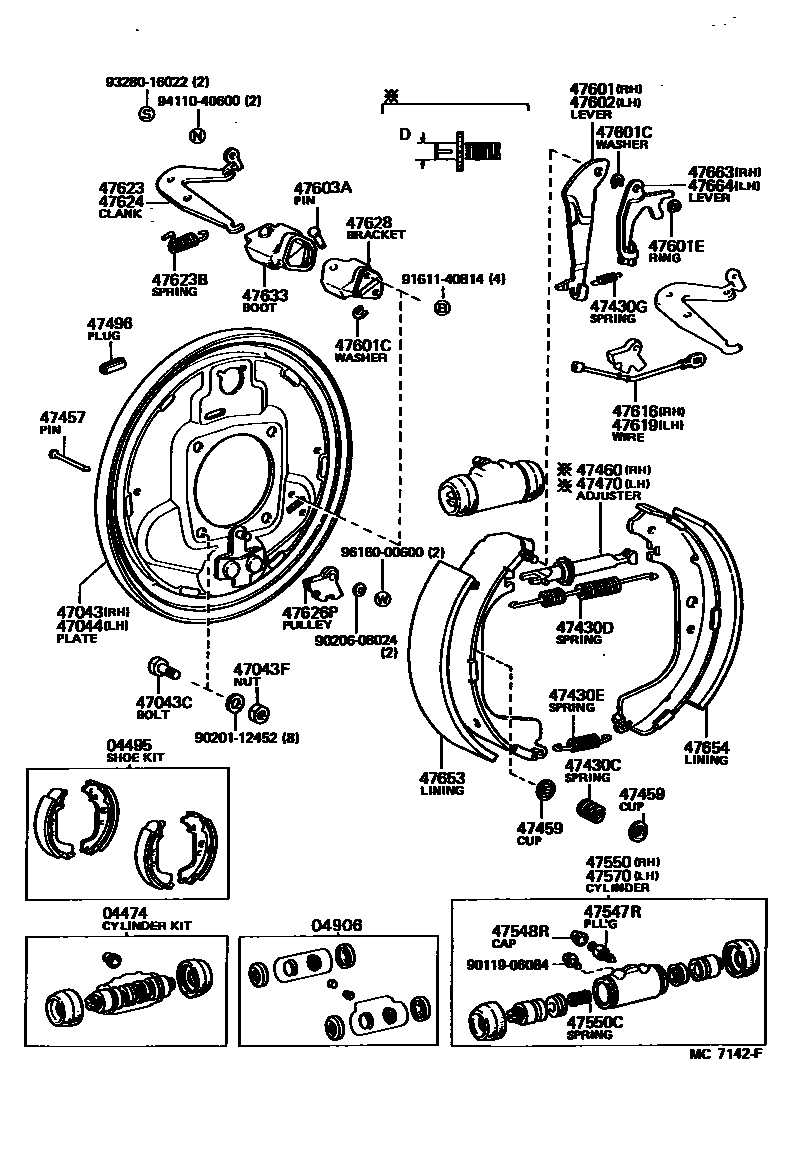

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04474CYLINDER KIT, REAR WHEEL
04906CUP KIT, REAR WHEEL CYLINDER
47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
RH
LH
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
ADJUSTING BOLT:D=12
47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
ADJUSTING BOLT:D=12
47496PLUG, HOLE(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
sub47611-35040
47601CWASHER, C(FOR REAR BRAKE)
T=1.2,T=1.2
T=1.6,T=1.6
47601ERING, E(FOR REAR BRAKE)
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
sub47612-35040
47603APIN, W/HOLE(FOR REAR BRAKE)
47616WIRE, PARKING BRAKE, RH
47619WIRE, PARKING BRAKE, LH
47623CRANK, PARKING BRAKE BELL, NO.1
47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)
47624CRANK, PARKING BRAKE BELL, NO.2
47626PPULLEY, PARKING BRAKE SEGMENTAL
47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
9011906084
main90119-06084
9020112452
main90201-12452
9020608024
main90206-08024
9161140814
main91611-40814
9328016022
main93280-16022
9411040600
main94110-40600
9616000600
main96160-00600
45 parts on this diagram · 1 diagram in section
