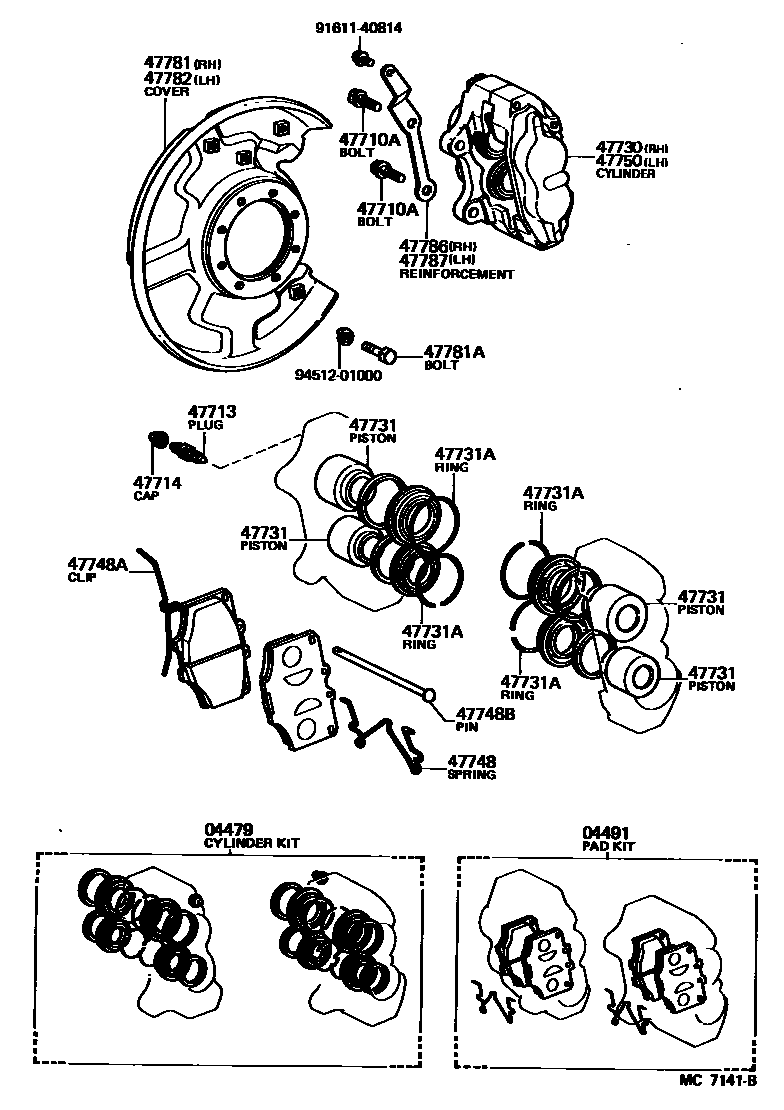

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30030iBJ60,FJ6#,HJ6#198008-198708

sub04479-30031

04491PAD KIT, DISC BRAKE, FRONT

main04491-60010iBJ60,FJ6#,HJ6#198008-198708

sub04465-35170

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12060iBJ60,FJ6#,HJ6#198008-198708

*12-1.25PX38-23

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iBJ60,FJ6#,HJ6#198008-198708

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iBJ60,FJ6#,HJ6#198008-198708

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60021iBJ60,FJ6#,HJ6#198008-198708

47731PISTON, FRONT DISC BRAKE

main47731-30020iBJ60,FJ6#,HJ6#198008-198708

OD=42.82

main47732-30010iBJ60,FJ6#,HJ6#198008-198708

OD=33.93

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-40043iBJ60,FJ6#,HJ6#198008-198708

PISTON OD=33.93

main90522-48044iBJ60,FJ6#,HJ6#198008-198708

PISTON OD=42.82

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60010iBJ60,FJ6#,HJ6#198008-198708

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12003iBJ60,FJ6#,HJ6#198008-198708

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06158iBJ60,FJ6#,HJ6#198008-198708

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60021iBJ60,FJ6#,HJ6#198008-198708

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-60020iBJ60,FJ60,HJ60..ARL,GEN198008-198411

main47703-60020iBJ60,FJ62,HJ6#198411-198708

W/O AIR SCOOP

main47703-60030iFJ60,HJ60..EUR198008-198110

sub47703-60031

main47703-60031iFJ60,HJ6#..EUR198110-198708

W/AIR SCOOP

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10439iBJ60,FJ6#,HJ6#198008-198708

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-60020iBJ60,FJ60,HJ60..ARL,GEN198008-198411

main47704-60020iBJ60,FJ62,HJ6#198411-198708

W/O AIR SCOOP

main47704-60030iFJ60,HJ60..EUR198008-198110

sub47704-60031

main47704-60031iFJ60,HJ6#..EUR198110-198708

W/AIR SCOOP

47786REINFORCEMENT, DUST COVER, RH

main47786-60020iBJ60,FJ6#,HJ6#198008-198708

47787REINFORCEMENT, DUST COVER, LH

main47787-60020iBJ60,FJ6#,HJ6#198008-198708

9161140814

main91611-40814

9451201000

main94512-01000

19 parts on this diagram · 2 diagrams in section
