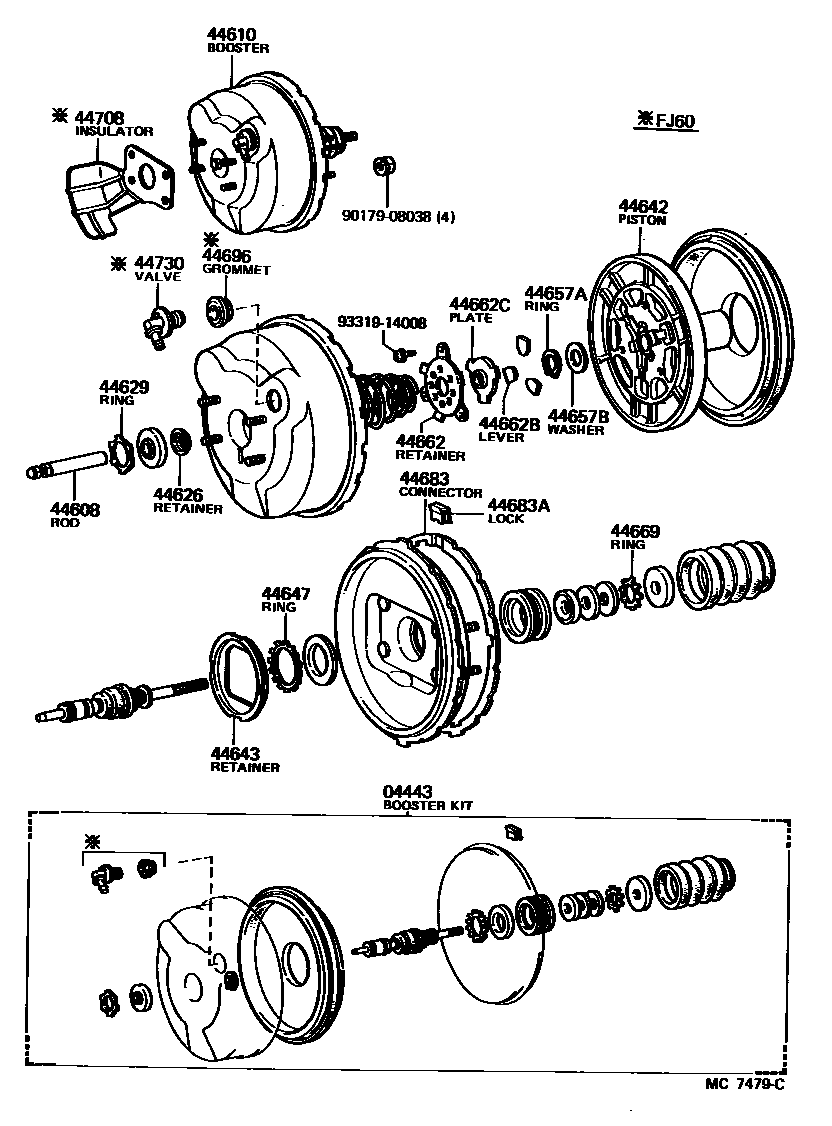

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0016 1 0017 1 0018 1 0019 1

04443BOOSTER KIT, BRAKE

main04443-60050iFJ60..GEN¥12,900198008-198411

FR DRUM BRAKE

main04443-60060iFJ60..ARL,GEN¥15,300198008-198411

FR DISC BRAKE

main04443-60070iFJ60..EUR¥14,200198008-198411

FR DISC BRAKE

main04443-60090iBJ60,HJ60..GEN¥12,900198008-198411

FR DRUM BRAKE

main04443-60100iBJ60,HJ60¥15,300198008-198411

FR DISC BRAKE

main04443-60210iFJ62..GEN¥10,500198411-198708

FR DRUM BRAKE

main04443-60220iBJ60,HJ60..GEN¥10,500198411-198708

FR DRUM BRAKE

main04443-60230iFJ62..LHD¥11,400198411-198708

FR DISC BRAKE

main04443-60240iBJ60,HJ60¥11,600198411-198510

FR DISC BRAKE

main04443-60241iBJ60,HJ6#¥11,600198510-198708

FR DISC BRAKE

main04443-60280iFJ62..RHD..GEN¥11,600198510-198708

FR DISC BRAKE

main04443-60310iFJ62..ARL¥11,600198704-198708

main04443-60320iHJ61..ARL;HJ60..SRF..ARL¥11,600198704-198708

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iBJ60,FJ62,HJ6#¥2,660198411-198708

main44606-30340iFJ60..EUR¥1,090198008-198411

FR DISC BRAKE

main44606-35100iHJ60;BJ60,FJ60..ARL,GEN¥940198008-198411

44610BOOSTER ASSY, BRAKE

main44610-60060iFJ60..GEN¥41,500198008-198411

FR DRUM BRAKE

main44610-60080iFJ60..LHD..GEN¥46,900198008-198411

FR DISC BRAKE

main44610-60090iFJ60..EUR¥60,700198008-198411

FR DISC BRAKE

main44610-60110iBJ60..LHD¥40,300198008-198411

FR DRUM BRAKE

main44610-60120iBJ60..LHD¥45,900198008-198411

FR DISC BRAKE

main44610-60130iBJ60,HJ60..LHD..GEN¥40,400198008-198301

FR DRUM BRAKE

main44610-60131iHJ60..LHD..GEN¥40,300198301-198411

FR DRUM BRAKE

main44610-60140iBJ60,HJ60..LHD¥46,200198008-198301

FR DISC BRAKE

main44610-60141iHJ60..LHD¥45,900198301-198411

FR DISC BRAKE

main44610-60230iFJ60..RHD..GEN¥41,500198210-198411

FR DRUM BRAKE

main44610-60240iFJ60..RHD¥46,900198210-198411

FR DISC BRAKE

main44610-60350iFJ62..RHD¥47,300198411-198510

FR DISC BRAKE

main44610-60360iFJ62..LHD..GEN¥44,000198411-198708

FR DRUM BRAKE

main44610-60370iFJ62..LHD¥47,500198411-198708

FR DISC BRAKE

main44610-60380iBJ60..GEN;HJ60..RHD..GEN¥42,400198411-198708

FR DRUM BRAKE

main44610-60390iFJ62..RHD..GEN¥44,200198411-198708

FR DRUM BRAKE

main44610-60400iBJ60¥45,900198411-198510

FR DISC BRAKE

main44610-60401iHJ60..RHD..(EUR,GEN)¥46,300198510-198708

FR DISC BRAKE

main44610-60410iHJ60..LHD..GEN¥42,400198411-198708

FR DRUM BRAKE

main44610-60420iHJ60..LHD¥45,900198411-198510

FR DISC BRAKE

main44610-60421iHJ6#..LHD¥45,700198510-198708

FR DISC BRAKE

main44610-60480iFJ62..RHD¥47,600198510-198708

FR DISC BRAKE

main44610-60510iFJ62..ARL¥63,400198704-198708

FR DISC BRAKE

main44610-60520iHJ61..ARL;HJ60..SRF..ARL¥63,400198704-198708

44626RETAINER, BOOSTER ROD CUP

main44626-60010iHJ60;BJ60,FJ60..ARL,GEN¥160198008-198708

44629RING, CIRCULAR INTERNAL

main44628-28120iBJ60,FJ62,HJ6#..EUR,GEN,ME¥390198411-198708

main44628-60010iBJ60,FJ60,HJ60¥440198008-198708

44642PISTON, BRAKE BOOSTER

main44642-14170iBJ60,FJ60,HJ60..GEN¥7,800198008-198411

FR DRUM BRAKE

main44642-20800iFJ62,HJ61..ARL;HJ60..SRF..ARL¥2,740198704-198708

main44642-30030iHJ60;BJ60,FJ60..ARL,GEN¥10,200198008-198411

FR DISC BRAKE

main44642-30340iFJ60..EUR¥4,090198008-198411

FR DISC BRAKE

main44642-60250iBJ60,FJ62,HJ60..GEN¥5,500198411-198708

FR DRUM BRAKE

main44642-60280iBJ60,FJ62,HJ60¥5,500198411-198708

FR DISC BRAKE

main44642-60450iFJ62..RHD198510-198708

FR DISC BRAKE

44643RETAINER, DIAPHRAGM

main44643-20800iFJ62,HJ61..ARL;HJ60..SRF..ARL¥350198704-198708

main44643-30340iFJ60..EUR¥270198008-198411

main44643-60010iHJ60;BJ60,FJ60..ARL,GEN¥620198008-198411

44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

main44629-30090iHJ60;BJ60,FJ60..ARL,GEN¥300198008-198411

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iHJ60;BJ60,FJ60..ARL,GEN¥260198008-198411

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iBJ60,FJ60,HJ60..GEN¥250198008-198411

FR DRUM BRAKE

44662RETAINER, REACTION, NO.1

main44662-20460iHJ60;BJ60,FJ60..ARL,GEN¥640198008-198411

FR DISC BRAKE

main44662-35100iBJ60,FJ60,HJ60..GEN¥620198008-198411

FR DRUM BRAKE

44662BLEVER, REACTION

main44661-35100iHJ60;BJ60,FJ60..ARL,GEN¥470198008-198411

44662CPLATE, REACTION, NO.1

main44607-25100iHJ60;BJ60,FJ60..ARL,GEN198008-198411

FR DISC BRAKE

main44607-27050iBJ60,FJ60,HJ60..GEN198008-198411

FR DRUM BRAKE

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iHJ60;BJ60,FJ60..ARL,GEN¥270198008-198411

44683CONNECTOR, BOOSTER BODY

main44682-20150iBJ60,FJ60,HJ60..GEN¥1,540198008-198411

FR DRUM BRAKE

44683ALOCK, CONNECTOR

main44683-20100iBJ60,FJ60,HJ60..GEN¥450198008-198411

FR DRUM BRAKE

44696GROMMET, CHECK VALVE

main90480-24439iFJ6#¥390198008-198708

44708INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT

main44786-60030iFJ6#..LHD¥1,000198008-198708

main44786-60070iHJ61..EUR¥2,420198510-198708

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iFJ62..ARL¥1,380198704-198708

main44730-20060iFJ62..GEN¥2,920198411-198708

main44730-22070iFJ60¥1,000198008-198411

sub44730-20060¥2,920

main44730-60040iBJ60,HJ6#¥5,500198008-198708

9017908038

main90179-08038¥130

9331914008

main93319-14008¥80

21 parts on this diagram · 17 diagrams in section
