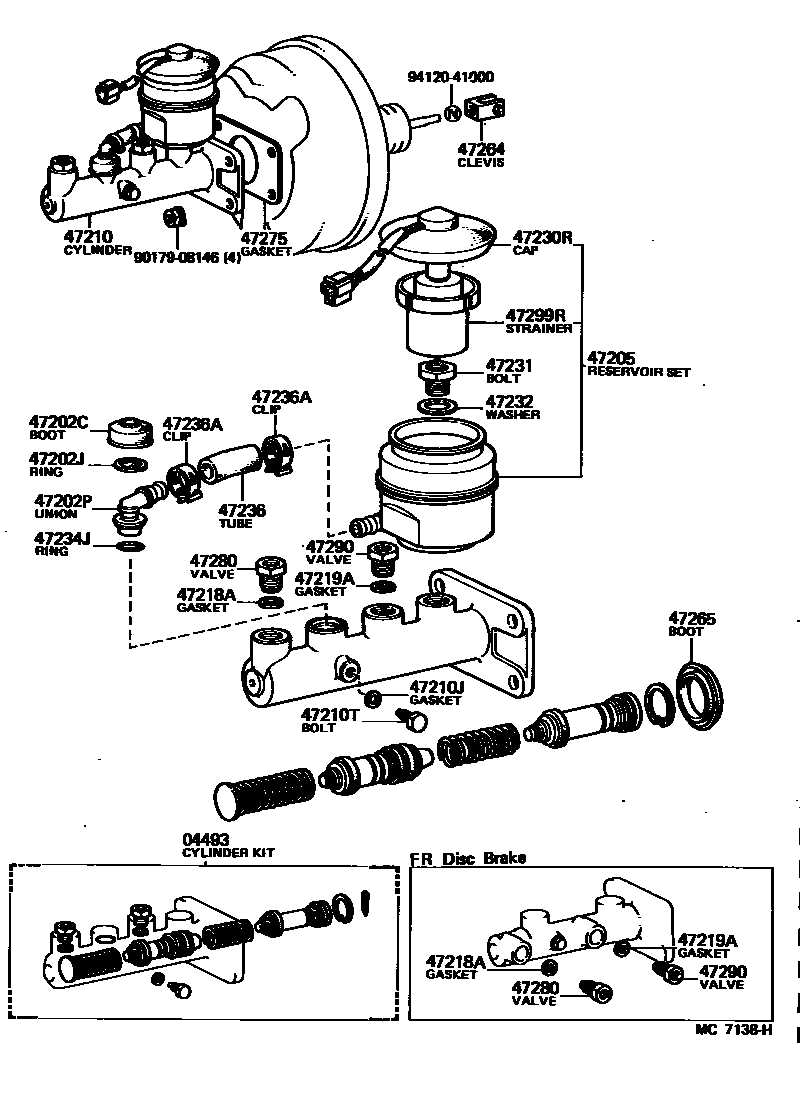

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1SWEDEN SPEC

04493CYLINDER KIT, BRAKE MASTER

main04493-60050iBJ60,FJ60,HJ60..GEN198008-198411

FR DRUM BRAKE

main04493-60070iBJ60,FJ60,HJ60198008-198411

FR DISC BRAKE

main04493-60090iFJ62,HJ60..RHD..GEN198411-198708

FR DISC BRAKE,*SA

sub04493-60170

main04493-60090iFJ62..RHD198411-198708

FR DISC BRAKE

sub04493-60170

main04493-60110iFJ62..RHD..GEN198411-198708

FR DRUM BRAKE

sub04493-60130

main04493-60130iBJ60,HJ60..GEN198411-198708

FR DRUM BRAKE

main04493-60160iBJ60,HJ6#..ARL,GEN,ME198411-198708

FR DISC BRAKE

sub04493-60170

main04493-60170iHJ60..LHD..4FC198411-198708

FR DISC BRAKE,SWEDEN SPEC

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iBJ60,FJ6#,HJ6#198008-198708

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iBJ60,FJ6#,HJ6#198008-198708

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90407-10003iBJ60,FJ60,HJ60198008-198411

sub90407-10004

main90407-10003iFJ62..RHD198411-198708

SOUTH AFRICA SPEC

sub90407-10004

main90407-10004iBJ60,HJ6#..ARL,GEN198411-198708

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-60030iHJ60..RHD..EUR198008-198708

main47202-60070iBJ60,HJ6#..ARL,GEN198411-198708

main47202-60080iHJ60..4FC..SOB..EUR198411-198708

SWEDEN SPEC

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-60100iBJ60,FJ60,HJ60..GEN198008-198411

FR DRUM BRAKE

sub47207-60010

sub84460-20051

main47201-60120iBJ60,FJ60,HJ60198008-198411

FR DISC BRAKE

sub47201-60210

main47201-60210iFJ62..RHD198411-198708

FR DISC BRAKE

main47201-60210iFJ62..RHD198411-198708

FR DISC BRAKE,*SA

main47201-60290iHJ60..LHD..EUR198411-198708

FR DISC BRAKE

main47201-60310iHJ60..5F..HRF..EUR198411-198708

FR DISC BRAKE,SWEDEN SPEC

main47201-60320iFJ62..RHD..GEN198411-198708

FR DRUM BRAKE

main47201-60330iBJ60,HJ60..GEN198411-198708

FR DRUM BRAKE

main47201-60360iHJ61..EUR198510-198708

FR DISC BRAKE

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBJ60,FJ6#,HJ6#198008-198708

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBJ60,FJ6#,HJ6#198008-198708

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-12040iBJ60,FJ62,HJ6#198510-198708

FR DISC BRAKE

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iBJ60,FJ6#,HJ6#198008-198708

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iBJ60,FJ6#,HJ6#198008-198708

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-12030iHJ60..HRF..SOB198411-198708

SWEDEN SPEC

main84460-20051iBJ60,FJ6#,HJ6#198008-198708

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iBJ60,HJ6#..ARL,GEN198411-198708

main47231-30010iFJ62..RHD198008-198708

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iBJ60,FJ60,HJ60198008-198411

47234JRING, O(FOR RESERVOIR TUBE)

main90301-14001iBJ60,FJ6#,HJ6#198008-198708

47236TUBE, RESERVOIR BRAKE

main47234-14010iBJ60,FJ62,HJ6#198411-198708

main47234-14010iBJ60,FJ60,HJ60198008-198411

FR DISC BRAKE

main47234-60020iBJ60,FJ60,HJ60..GEN198008-198411

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iBJ60,FJ6#,HJ6#198008-198708

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iBJ60,FJ6#,HJ6#198008-198708

main47264-30040iFJ62,HJ61..ARL;HJ60..SRF..ARL198704-198708

47265BOOT, MASTER CYLINDER

main47265-20050iBJ60,FJ6#,HJ6#198008-198708

FR DISC BRAKE

main47265-35030iBJ60,FJ6#,HJ60..GEN198008-198708

47275GASKET, BRAKE MASTER CYLINDER

main47275-22010iBJ60,FJ60,HJ60198008-198411

main47275-22010iBJ60,FJ62,HJ6#198411-198708

FR DISC BRAKE

main47275-24010iBJ60,FJ62,HJ60..GEN198411-198708

FR DRUM BRAKE

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-14010iBJ60,HJ60..GEN198510-198708

FR DRUM BRAKE

main47280-14010iFJ62..LHD198411-198510

main47280-30030iHJ60..RHD..GEN198411-198510

SWEDEN SPEC

sub47280-14010

main47280-30030iBJ60,FJ60,HJ60198008-198411

sub47280-14010

main47280-30030iFJ62..RHD198411-198510

SOUTH AFRICA SPEC

sub47280-14010

main47280-30030iFJ62..RHD..GEN198510-198708

FR DRUM BRAKE

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-14010iBJ60,HJ60..ARL,GEN198411-198510

main47280-14010iFJ62..LHD..GEN198510-198708

FR DRUM BRAKE

main47280-30030iHJ60..RHD..EUR198411-198510

SOUTH AFRICA SPEC

sub47280-14010

main47280-30030iHJ60..5F..HRF..EUR;HJ60..4FC..SOB..EUR198411-198510

SWEDEN SPEC

sub47280-14010

main47280-30030iBJ60,FJ60,HJ60198008-198411

sub47280-14010

main47280-30030iFJ62..RHD..GEN198510-198708

FR DRUM BRAKE

sub47280-14010

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iBJ60,FJ6#,HJ6#198204-198708

main47299-20010iBJ60,FJ60,HJ60198008-198204

9017908146

main90179-08146

9412041000

main94120-41000

25 parts on this diagram · 3 diagrams in section
