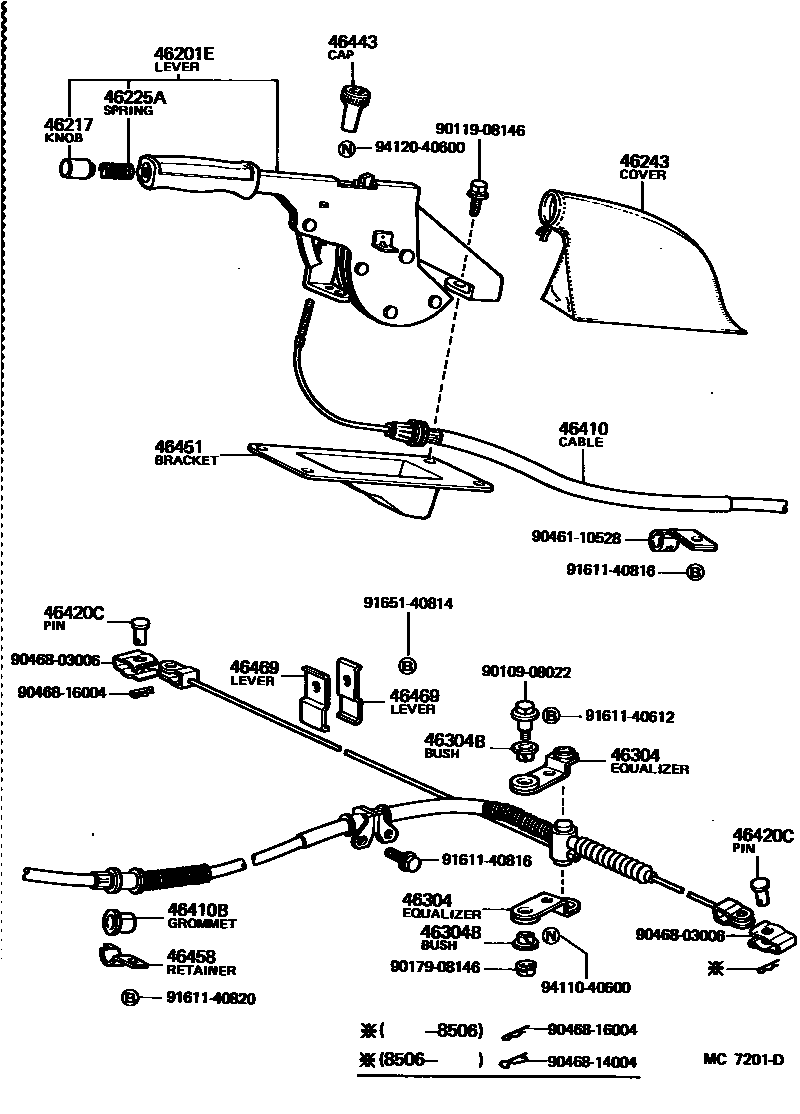

PARKING BRAKE & CABLE

0001 1 0002 1 0004 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46210-60040iBJ60,FJ60,HJ60198008-198210

sub46210-60041

main46210-60040-01iBJ60,FJ6#,HJ6#198210-198708

BLACK,BLACK,TRIM1#

sub46210-60040

sub46210-60041

main46210-60040-06iBJ60,FJ60,HJ60198210-198411

DARK BROWN,BROWN,TRIM4#

sub46210-60040

sub46210-60041

main46210-60040-16iBJ60,FJ62,HJ6#198411-198708

SEPIA BROWN,SEPIA BROWN,TRIM4#

sub46210-60040

sub46210-60041

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iBJ60,FJ6#,HJ6#198210-198708

BLACK,BLACK,TRIM1#

sub46217-10020

sub46217-20020

main46217-10020-26iBJ60,FJ60,HJ60198008-198411

DARK BROWN,BROWN,TRIM4#

sub46217-10020

sub46217-20020

main46217-10020-56iBJ60,FJ62,HJ6#198411-198708

SEPIA BROWN,BROWN,TRIM4#

sub46217-10020

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iBJ60,FJ6#,HJ6#198008-198708

46243COVER, PARKING BRAKE LEVER

main46243-60030iBJ60,FJ60,HJ60198008-198210

main46243-60030-01iBJ60,FJ6#,HJ6#198210-198708

BLACK,BLACK,TRIM1#

sub46243-60030

main46243-60030-06iBJ60,FJ60,HJ60198210-198411

DARK BROWN,BROWN,TRIM4#

sub46243-60030

main46243-60030-16iBJ60,FJ62,HJ6#198411-198708

SEPIA BROWN,SEPIA BROWN,TRIM4#

sub46243-60030

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-31010iBJ60,FJ6#,HJ6#198008-198708

46304BBUSH(FOR PARKING BRAKE EQUALIZER)

main90385-12029iBJ60,FJ6#,HJ6#198008-198708

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-60100iBJ60,FJ60,HJ60198008-198210

main46410-60101iBJ60,FJ6#,HJ6#198210-198708

main46410-60180iFJ60..LHD..LUB..GEN198111-198210

VENEZUELA SPEC

main46410-60181iFJ60..5F..LUB..GEN198210-198411

VENEZUELA SPEC

main46410-60340iFJ62..LHD..(4FC,5F)..SRF..LUB..GEN198411-198708

VENEZUELA SPEC

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-17158iBJ60,FJ6#,HJ6#198008-198708

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08042iBJ60,FJ6#,HJ6#198008-198708

46443CAP, CABLE ADJUSTING

main46443-12020iBJ60,FJ6#,HJ6#198008-198708

46451BRACKET, CABLE SUPPORT

main46451-60030iBJ60,FJ6#,HJ6#198008-198708

46458RETAINER, CABLE

main46458-30020iBJ60,FJ6#,HJ6#198008-198708

46469LEVER, CABLE GUIDE SUPPORT

main46469-60010iBJ60,FJ6#,HJ6#198008-198608

sub46469-60020

main46469-60020iHJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR198608-198708

9010908022

main90109-08022

9011908146

main90119-08146

9017908146

main90179-08146

9046110528

main90461-10528

9046803006

main90468-03006

9046814004

main90468-14004

9046816004

main90468-16004

9161140612

main91611-40612

9161140816

main91611-40816

9161140820

main91611-40820

9165140814

main91651-40814

9411040600

main94110-40600

9412040600

main94120-40600

26 parts on this diagram · 3 diagrams in section
