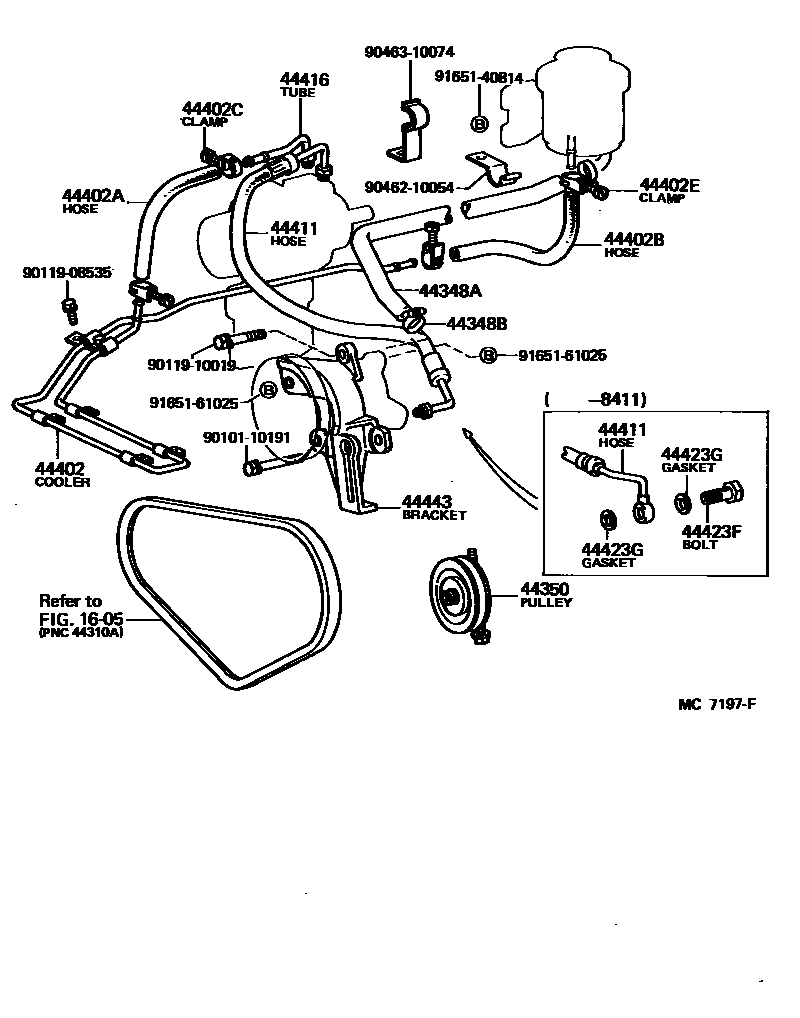

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60020iHJ60198008-198411

main44348-60070iHJ6#198411-198708

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iHJ6#198008-198708

44350PULLEY ASSY, POWER STEERING IDLE

main16630-47020iHJ6#198008-198708

main44350-60010iBJ60198401-198708

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44420-60060iBJ60,FJ6#..RHD198008-198708

main44420-60080iHJ6#..RHD198008-198708

44402AHOSE, POWER STEERING OIL COOLER INLET

main90445-18089iFJ60,HJ60..RHD198008-198708

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90445-18085iFJ6#..RHD198110-198708

main90445-18089iHJ6#..RHD198008-198708

main90445-18091iFJ60..RHD198008-198110

sub90445-18085

main90447-18008iBJ60..RHD198401-198708

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001iFJ60,HJ60..RHD198008-198708

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001iBJ60,FJ6#,HJ6#..RHD198008-198708

44411HOSE, PRESSURE FEED

main44411-60110iFJ60..RHD198008-198012

sub44411-60111

main44411-60111iFJ60..RHD198012-198411

main44411-60140iHJ60..RHD198008-198011

sub44411-60141

main44411-60141iHJ60..RHD198011-198411

main44411-60190iBJ60..RHD198401-198411

main44411-60261iFJ62..RHD198411-198510

main44411-60262iFJ62..RHD198510-198708

main44411-60270iHJ60..RHD198411-198510

main44411-60280iBJ60..RHD198411-198708

main44411-60300iHJ60..LHD198411-198708

main44411-60310iHJ6#..RHD198510-198708

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60050iFJ60..RHD198008-198202

sub44416-60060

main44416-60060iFJ60,HJ60198008-198510

sub44416-60061

main44416-60061iBJ60,FJ62,HJ6#198510-198708

44423FBOLT, UNION

main90401-16004iHJ60198008-198210

sub90401-16027

main90401-16005iHJ60198210-198411

sub90401-16008

44423GGASKET, UNION BOLT

main90430-16242iHJ60198008-198411

44443BRACKET, PUMP

main44443-60010iFJ60198008-198411

main44443-60030iHJ60198008-198411

main44443-60040iBJ60198401-198411

main44443-60050iFJ62198411-198708

main44443-60060iBJ60198411-198708

main44443-60070iHJ60198411-198510

main44443-60071iHJ6#198510-198708

9010110191

main90101-10191

9011908535

main90119-08535

9011910019

main90119-10019

9046210054

main90462-10054

9046310074

main90463-10074

9165140814

main91651-40814

9165161025

main91651-61025

21 parts on this diagram · 9 diagrams in section
