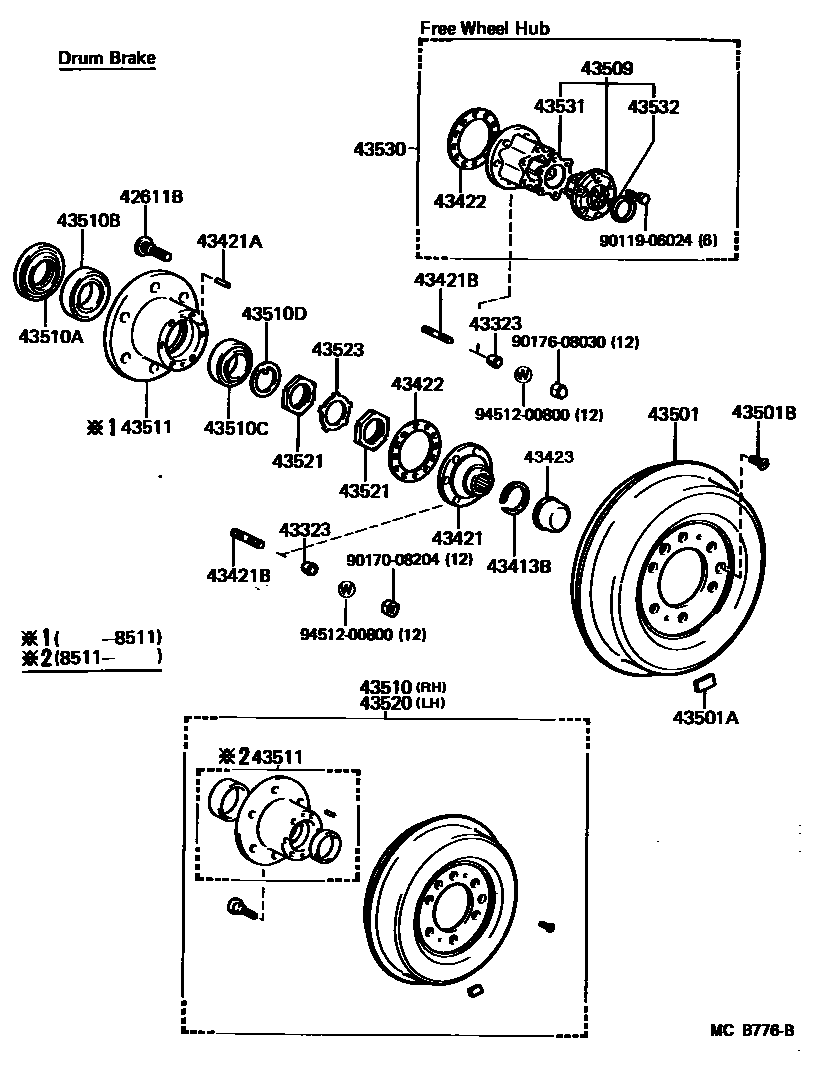

FRONT AXLE HUB

0001 1 0002 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02034iBJ60,FJ60,HJ60..GEN198008-198411

DRUM BRAKE

sub90942-02052

main90942-02044iBJ60,FJ60,HJ60198008-198411

DISC BRAKE

sub90942-02053

main90942-02052iBJ60,FJ62,HJ60..GEN198411-198708

DRUM BRAKE

main90942-02053iBJ60,FJ62,HJ6#198411-198708

DISC BRAKE

43323WASHER, CONE (FOR FRONT AXLE SHAFT)

main42323-60010iBJ60,FJ6#,HJ6#198008-198708

43413BRING, DRIVE SHAFT SNAP

main90520-31001iBJ60,FJ6#,HJ6#198008-198708

sub90520-31007

43421FLANGE, FRONT AXLE OUTER SHAFT

main43421-60013iFJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN198008-198708

43421APIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE)

main90250-07057iBJ60,FJ6#,HJ6#198008-198708

43421BBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)

main90116-08325iBJ60,FJ6#,HJ6#198008-198708

43422GASKET, FRONT AXLE OUTER SHAFT FLANGE

main43422-60010iBJ60,FJ60,HJ60198008-198411

main43422-60020iBJ60,FJ62,HJ6#198411-198708

sub43422-60010

43423CAP, FRONT AXLE OUTER SHAFT FLANGE

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-60030iBJ60,FJ6#,HJ60..GEN198008-198708

sub43512-60070

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01117iBJ60,FJ6#,HJ60..GEN198008-198708

10G,10G

main90937-01118iBJ60,FJ6#,HJ60..GEN198008-198708

20G,20G

main90937-01119iBJ60,FJ6#,HJ60..GEN198008-198708

30G,30G

main90937-01120iBJ60,FJ6#,HJ60..GEN198008-198612

40G,40G

main90937-01121iBJ60,FJ6#,HJ60..GEN198008-198708

50G,50G

main90937-01122iBJ60,FJ6#,HJ60..GEN198008-198708

60G,60G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10003iBJ60,FJ6#,HJ60..GEN198008-198708

43509COVER SUB-ASSY, FREE WHEEL HUB

main43509-60013iBJ60,FJ60,HJ60198008-198110

main43509-60015iFJ62..ARL,GEN198110-198708

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-60050iBJ60,FJ60,HJ60..GEN198008-198411

sub43510-60070

main43510-60070iBJ60,FJ62,HJ60..GEN198411-198708

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-62001iBJ60,FJ6#,HJ6#198008-198708

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-49084iBJ60,FJ6#,HJ6#198008-198708

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-45087iBJ60,FJ6#,HJ6#198008-198708

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-42030iBJ60,FJ6#,HJ6#198008-198708

43511HUB, FRONT AXLE

main43502-60020iBJ60,FJ6#,HJ6#198008-198708

DISC BRAKE

sub43502-39095

main43502-60030iBJ60,FJ62,HJ60..GEN198511-198708

DRUM BRAKE

sub43502-69055

main43511-60012iBJ60,FJ6#,HJ60..GEN198008-198511

DRUM BRAKE

sub43502-60030

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-60050iBJ60,FJ60,HJ60..GEN198008-198411

sub43510-60070

main43510-60070iBJ60,FJ62,HJ60..GEN198411-198708

43521NUT, FRONT WHEEL ADJUSTING

main43521-60011iBJ60,FJ6#,HJ6#198008-198708

43523WASHER, FRONT WHEEL ADJUSTING LOCK

main90215-42025iBJ60,FJ6#,HJ6#198008-198708

43530HUB ASSY, FREE WHEEL

main43530-69016iBJ60,FJ60,HJ60198008-198110

sub43530-69019

main43530-69017iBJ60,FJ60,HJ60198110-198411

sub43530-69055

main43530-69045iBJ60..LHD..GEN198411-198708

sub43530-69046

43531GASKET, FREE WHEEL HUB

main43531-60010iBJ60,FJ60,HJ60198008-198708

43532RING, FREE WHEEL HUB

main43532-60010iBJ60,FJ60,HJ60198110-198708

9011906024

main90119-06024

9017008204

main90170-08204

9017608030

main90176-08030

9451200800

main94512-00800

28 parts on this diagram · 2 diagrams in section
