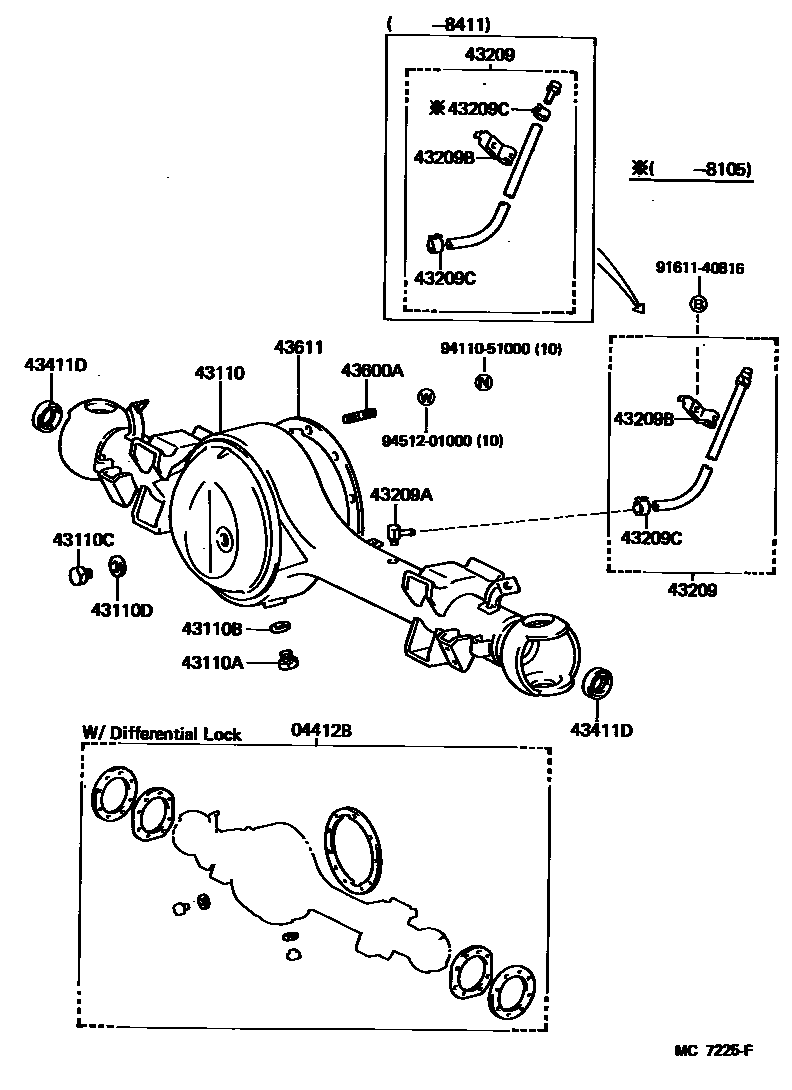

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1

04412BGASKET KIT, FRONT DIFFERENTIAL CARRIER

main04412-60020iFJ62,HJ60..SOB..ARL198510-198708

W/DIFFERENTIAL LOCK

sub04412-60021

43110HOUSING ASSY, FRONT AXLE

main43110-60140iFJ60,HJ60198008-198411

main43110-60142iFJ62,HJ60198411-198510

main43110-60143iFJ62,HJ6#198510-198608

main43110-60144iFJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR198608-198708

main43110-60150iBJ60198008-198411

main43110-60152iBJ60198411-198510

main43110-60153iBJ60198510-198608

main43110-60154iBJ60198608-198708

main43110-60210iFJ62,HJ60..SOB..ARL198510-198608

W/DIFFERENTIAL LOCK

main43110-60211iFJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR198608-198708

W/DIFFERENTIAL LOCK

43110APLUG SUB-ASSY, DRAIN

main90341-18057iBJ60,FJ6#,HJ6#198008-198708

43110BGASKET, DRAIN

main12157-10010iBJ60,FJ6#,HJ6#198008-198708

43110CPLUG (FOR FRONT AXLE HOUSING)

main90341-18006iBJ60,FJ62,HJ6#198411-198708

main90341-18049iBJ60,FJ60,HJ60198008-198411

43110DGASKET (FOR FRONT AXLE HOUSING PLUG)

main12157-10010iBJ60,FJ6#,HJ6#198008-198708

43209HOSE SUB-ASSY, FRONT AXLE BREATHER

main43209-60010iFJ60198008-198411

sub43209-60011

main43209-60011iFJ62198411-198708

main43209-60020iHJ60198008-198411

sub43209-60021

main43209-60030iBJ60198008-198411

main43209-60031iBJ60198411-198708

main43209-60060iHJ60198411-198708

43209AUNION (FOR FRONT AXLE BREATHER HOSE)

main90404-10019iBJ60,FJ6#,HJ60198008-198708

43209BCLAMP (FOR FRONT AXLE BREATHER HOSE)

main90461-10387iBJ60,FJ60,HJ60198008-198708

main90949-01213iBJ60198411-198708

43209CCLIP, HOSE (FOR FRONT AXLE BREATHER HOSE)

main96132-30600iBJ60,FJ60,HJ60198008-198708

sub96132-51100

43411DSEAL, TYPE T OIL (FOR FRONT DRIVE SHAFT)

main90311-33085iBJ60,FJ6#,HJ6#198008-198708

43600CARRIER ASSY, FRONT AXLE

main41110-60016iBJ60,FJ60,HJ60..ARL,GEN198008-198408

*AXC=082,*FGR=37:9

main41110-60017iBJ60,FJ60,HJ60..ARL,GEN198408-198411

*AXC=K082,*FGR=37:9

sub41110-60018

main41110-60026iFJ60,HJ60..EUR,GEN198008-198408

*AXC=K052,*FGR=37:10

main41110-60027iFJ60,HJ60..EUR,GEN198408-198411

*AXC=K052,*FGR=37:10

sub41110-60028

main41110-60100iFJ62,HJ6#..MTM..(EUR,GEN)198411-198708

*AXC=K052,*FGR=37:10

sub41110-60450

main41110-60110iHJ60..4FC..EUR198411-198708

*AXC=K082,*FGR=37:9

sub41110-60111

sub90949-01692

main41110-60220iFJ62,HJ6#..MTM..(EUR,GEN)198608-198708

*AXC=K054,*FGR=37:10,W/*DL

sub41110-60221

sub90116-10075

main41110-60230iFJ62,HJ60..SOB..ARL198510-198708

*AXC=K084,*FGR=37:9,W/*DL

sub41110-60231

sub90116-10075

main41110-60230iHJ60..MTM..(ARL,GEN);FJ62,HJ61..ARL,GEN,ME198608-198708

*AXC=KO84,*FGR=37:9,W/*DL

sub41110-60231

sub90116-10075

43600ABOLT, STUD (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING)

main90116-10074iBJ60,FJ6#,HJ6#198212-198708

S=16 & 12.5,L=40.5,L=37,S=12 & 25

main90116-10075iBJ60,FJ6#,HJ6#198212-198708

S=18 & 12.5,L=53.5,L=50,S=12 & 18

main90116-10103iBJ60,FJ60,HJ60198008-198212

L=37,S=12 & 25,L=37,S=12 & 25

main90116-10104iBJ60,FJ60,HJ60198008-198212

L=50,S=12 & 18,L=50,S=12 & 18

sub90116-10075

main90116-10122iFJ62,HJ60..SOB..ARL198510-198708

S=19 & 12.5,L=78.4,L=77,W/DIFFERENTIAL LOCK

43611GASKET, FRONT AXLE DIFFERENTIAL CARRIER

main42181-36010iBJ60,FJ6#,HJ6#198008-198708

sub42181-60060

main42181-60030iFJ62,HJ61;HJ60..MTM;HJ60..4FC..EUR198510-198708

W/DIFFERENTIAL LOCK

sub42181-60060

9161140816

main91611-40816

9411051000

main94110-51000

9451201000

main94512-01000

17 parts on this diagram · 5 diagrams in section
