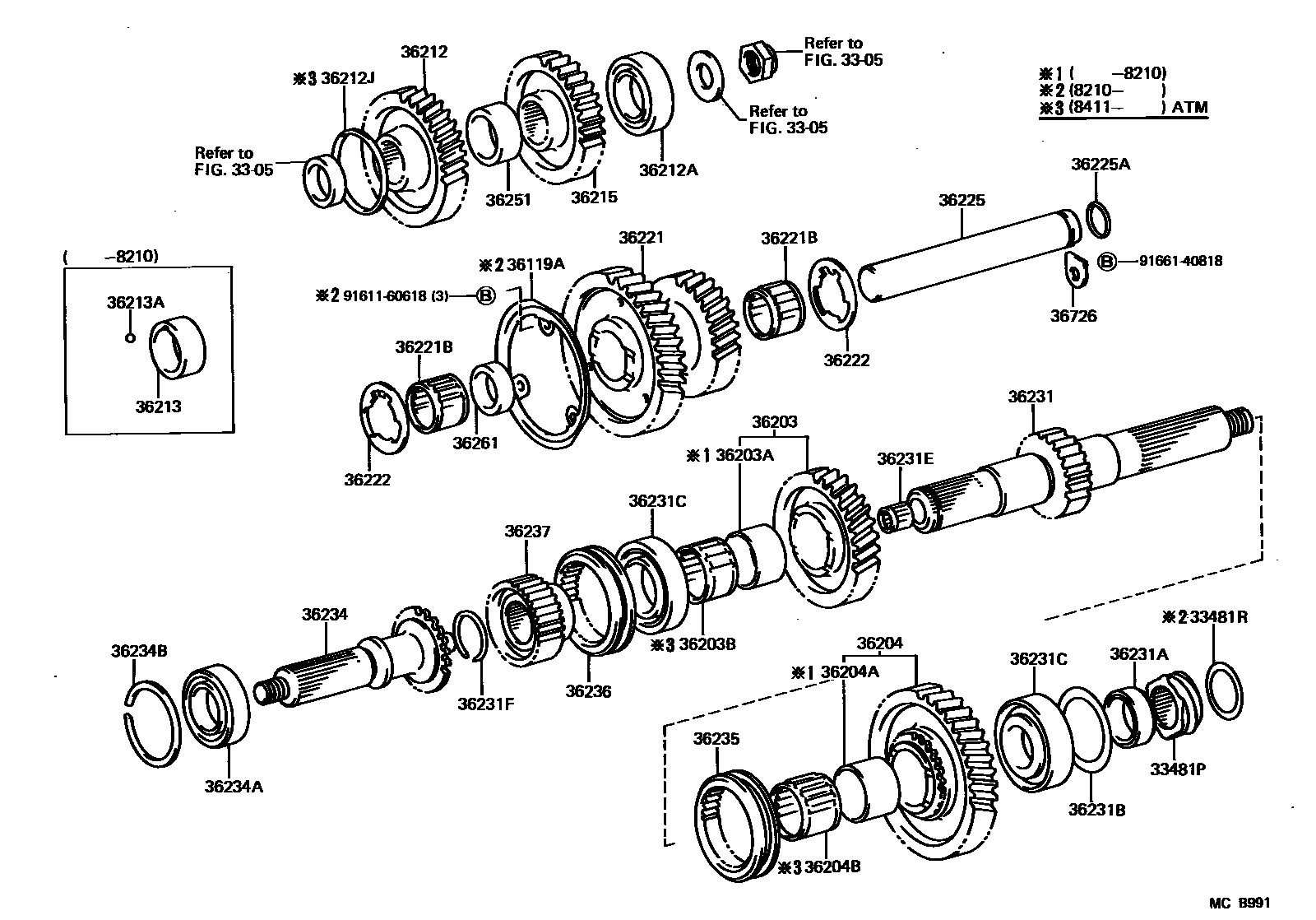

TRANSFER GEAR
3305
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
33481RWASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR)
36119ARECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR)
36203GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT
sub36203-60021
sub36203-60120
sub36203-60051
sub36203-60130
36203ABUSH, SOLID (FOR TRANSFER HIGH SPEED OUTPUT GEAR)
36203BBEARING (FOR TRANSFER HIGH SPEED OUTPUT GEAR)
36204ABUSH, SOLID (FOR TRANSFER LOW SPEED OUTPUT GEAR)
36204BBEARING (FOR TRANSFER LOW SPEED OUTPUT GEAR)
36212GEAR, TRANSFER INPUT
N=34 *FGR=37/9
N=34
N=32
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36212JRING, O (FOR TRANSFER INPUT GEAR)
36213STOPPER, TRANSFER INPUT GEAR
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
36215GEAR, POWER TAKE-OFF DRIVE
36221BBEARING (FOR TRANSFER IDLER GEAR)
36225SHAFT, TRANSFER IDLER GEAR
36225ARING, O (FOR TRANSFER IDLER SHAFT)
36231SHAFT, TRANSFER OUTPUT, REAR
VENEZUELA SPEC
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
T=17.5
36231BSHIM (FOR TRANSFER OUTPUT SHAFT)
T=0.15,T=0.15
T=0.40,T=0.4
T=0.50,T=0.5
T=0.60,T=0.6
T=0.70,T=0.7
T=0.80,T=0.8
T=0.90,T=0.9
T=1.00,T=1.0
T=1.10,T=1.1
T=1.20,T=1.2
T=1.30,T=1.3
T=1.40,T=1.4
T=1.50,T=1.5
36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
FR
RR
RR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=2.30-2.35,MARK 11,T=2.3
T=2.6-2.65,MARK 17,T=2.6
36234SHAFT, TRANSFER OUTPUT, FRONT
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
T=1.6
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
36251SPACER, TRANSFER INPUT SHAFT
W/POWER TAKE OFF
W/O POWER TAKE-OFF
36261SPACER, TRANSFER IDLER GEAR
36726PLATE, LOCK (FOR TRANSFER GEAR)
9161160618
main91611-60618
9166140818
main91661-40818
38 parts on this diagram · 1 diagram in section
