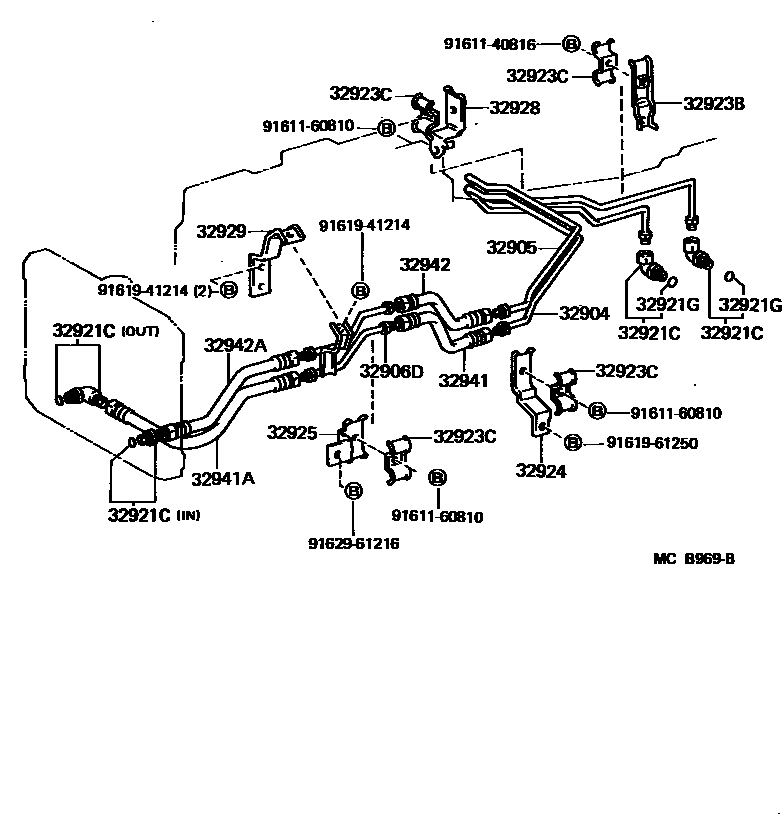

OIL COOLER & TUBE (ATM)
32906DTUBE SUB-ASSY, OIL COOLER, NO.2
32921CUNION(FOR OIL COOLER TUBE)
RADIATOR SIDE,INLET
RADIATOR SIDE,INLET
RADIATOR SIDE,OUTLET
TRANSMISSION SIDE
32921GRING, O(FOR OIL COOLER TUBE UNION)
32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32924CLAMP, OIL COOLER TUBE, NO.2
32925CLAMP, OIL COOLER TUBE, NO.3
32928CLAMP, FLEXIBLE HOSE, NO.1
32929CLAMP, FLEXIBLE HOSE, NO.2
32941HOSE, OIL COOLER INLET, NO.1
32941AHOSE, OIL COOLER INLET, NO.2
32942HOSE, OIL COOLER OUTLET, NO.1
32942AHOSE, OIL COOLER OUTLET, NO.2
9161140816
main91611-40816
9161160810
main91611-60810
9161941214
main91619-41214
9161961250
main91619-61250
9162961216
main91629-61216
20 parts on this diagram · 3 diagrams in section
