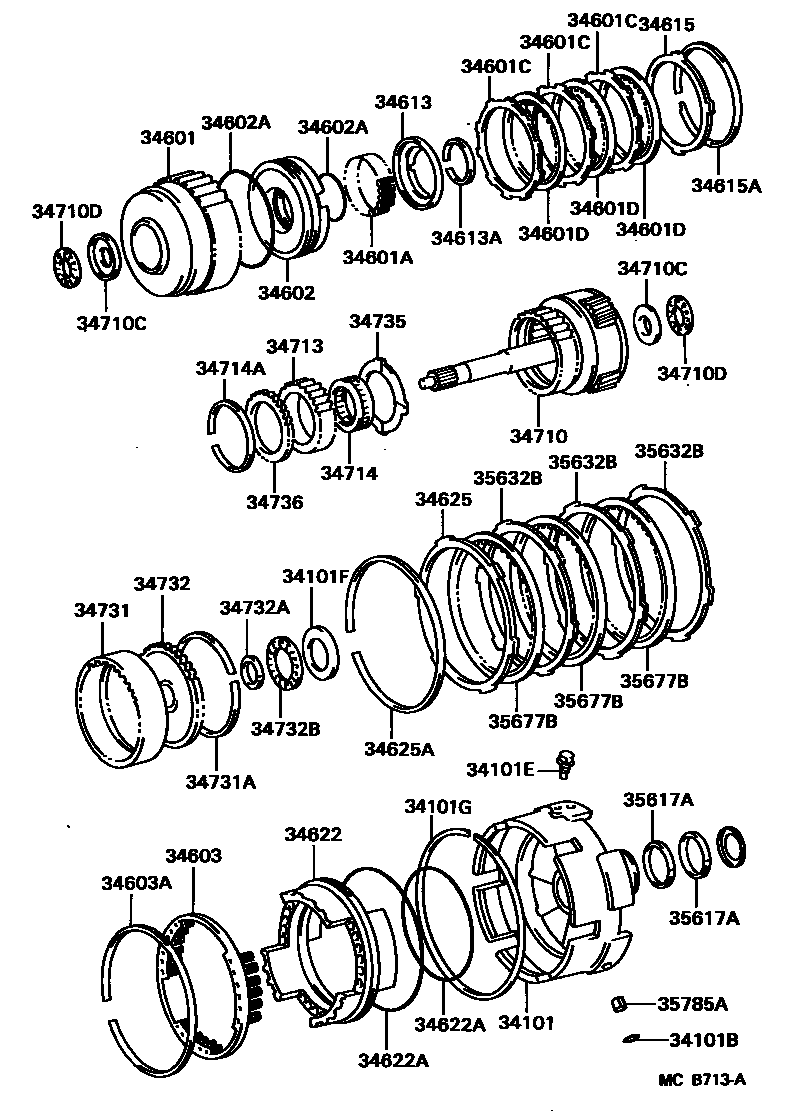

OVERDRIVE GEAR (ATM)
34101CASE SUB-ASSY, OVERDRIVE
34101BRING, O (FOR OVERDRIVE CASE)
34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)
*10-1.25PX20.5-13
34101FRACE, THRUST BEARING (FOR OVERDRIVE CASE FRONT)
34101GRING, HOLE SNAP (FOR OVERDRIVE CASE)
34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)
34601CPLATE, CLUTCH (FOR OVERDRIVE)
34601DDISC, CLUTCH (FOR OVERDRIVE)
34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)
INNER
OUTER
34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN
34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)
34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING
34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)
34615FLANGE, OVERDRIVE CLUTCH
34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)
34622PISTON, OVERDRIVE BRAKE
34622ARING, O (FOR OVERDRIVE BRAKE PISTON)
OUTER
INNER
34625FLANGE, OVERDRIVE BRAKE, NO.1
34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)
34710GEAR ASSY, OVERDRIVE PLANETARY
34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)
RR
FR
34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)
RR
FR
34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)
34714CLUTCH, 1 WAY(FOR OVERDRIVE)
34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)
34731GEAR, OVERDRIVE PLANETARY RING
34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)
34732FLANGE, OVERDRIVE PLANETARY RING GEAR
34732ARING, OIL SEAL (FOR OVERDRIVE PLANETARY RING GEAR FLANGE)
34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)
34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1
34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2
35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)
35632BPLATE, BRAKE (FOR OVERDRIVE)
35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)
35785ARETAINER, OVERDRIVE CASE RING
38 parts on this diagram · 1 diagram in section
