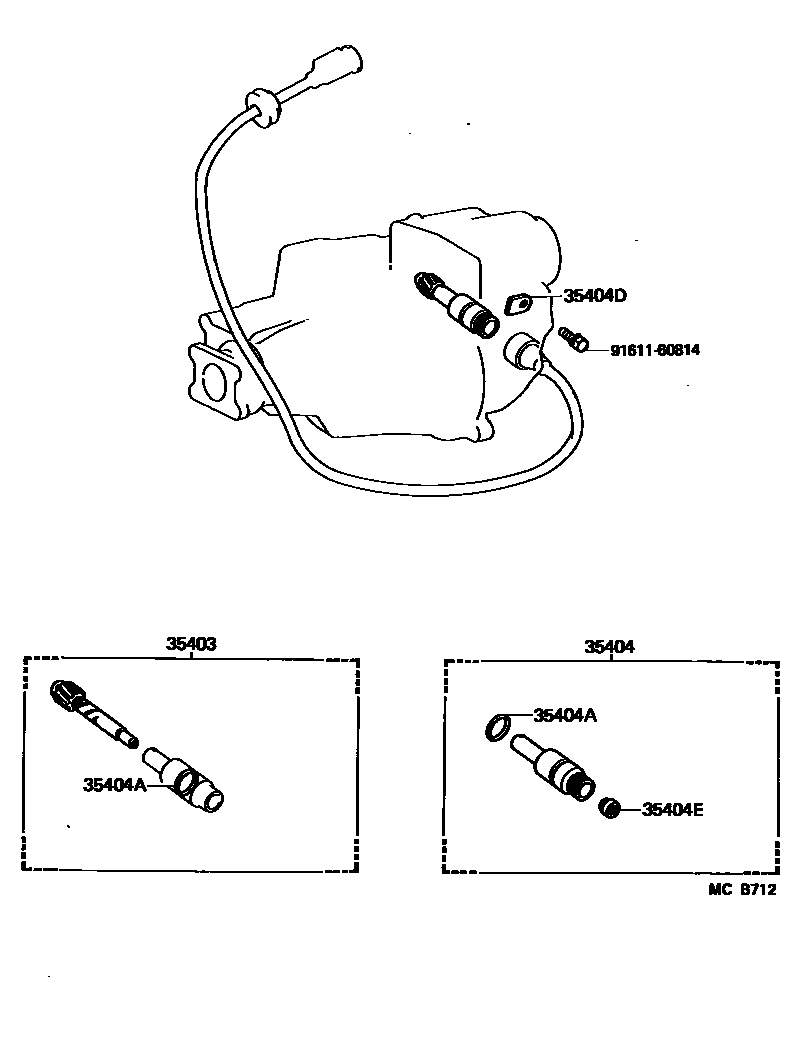

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-69016iHJ60..4FC..LUB..ARL198411-198708

N=17,MARK:17X6

main33403-69055iFJ62..LHD..4FC198510-198708

N=15,MARK:15X6

main33403-69065iFJ62..4FC..SRF..GEN198411-198708

N=18,MARK:18X6

main33403-69075iFJ62,HJ6#..4FC..(ARL,GEN,ME)198411-198708

N=16,MARK:16X6

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iFJ62,HJ6#..4FC198411-198708

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iFJ62,HJ6#..4FC198411-198708

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iFJ62,HJ6#..4FC198411-198708

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iFJ62,HJ6#..4FC198411-198708

9161160814

main91611-60814

6 parts on this diagram · 1 diagram in section
