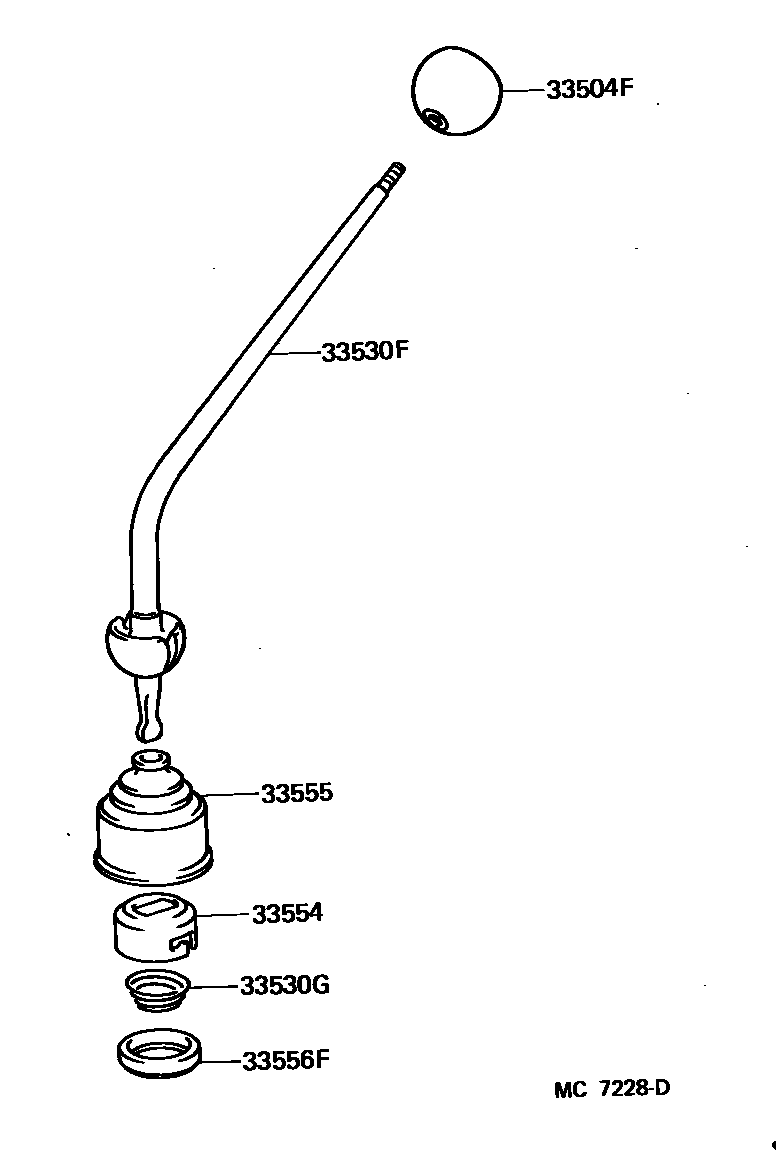

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052-01iFJ60,HJ60..HRF..ARL198305-198411

URETHANE,BLACK

sub33504-20052

sub33504-14050

main33504-22111-01iBJ60,FJ6#,HJ6#..5F198210-198708

BLACK

sub33504-14050

sub33504-22111

main33504-60030iBJ60,FJ60,HJ60..SOB198008-198110

main33504-60040iBJ60,FJ6#,HJ60..4F198008-198708

main33504-60050iFJ62,HJ60..4F..LUB198401-198708

URETHANE

main33504-60060iFJ62,HJ60..5F..LUB198411-198708

URETHANE

sub33504-24010

main33542-30110-13iFJ62,HJ6#..4FC198411-198708

GRAY,SHADOW GRAY

sub33542-30110

sub33542-24030

main33542-30110-36iFJ62,HJ6#..4FC198411-198708

SEPIA BROWN,SEPIA BROWN

sub33542-30110

sub33542-24030

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-60050iBJ60,FJ60,HJ60..RHD..4F198008-198411

sub33530-60070

main33530-60060iFJ60,HJ60..LHD..LUB198008-198411

sub33530-60080

main33530-60130iBJ60,FJ62,HJ60..RHD..4F198411-198708

main33530-60140iBJ60,FJ62,HJ60..LHD..4F198411-198708

main33530-60150iFJ62,HJ6#..RHD..5F198411-198708

main33530-60160iBJ60,FJ62,HJ6#..LHD..5F198411-198708

main33530-60170iFJ60,HJ60..RHD..5F198404-198411

main33530-60180iFJ60,HJ60..LHD..5F198404-198411

main33541-60110iBJ60,FJ60,HJ60..RHD..SOB198008-198110

main33541-60120iBJ60,FJ60,HJ60..LHD..SOB198008-198110

main33541-60170iFJ60,HJ60..RHD..5F198210-198404

main33541-60180iFJ60,HJ60..LHD..5F198210-198404

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-29001iBJ60,FJ6#,HJ6#..MTM198008-198708

sub90502-29002

33554CAP, SHIFT LEVER

main33554-60021iBJ60,FJ6#,HJ6#..MTM198008-198708

33555BOOT, SHIFT LEVER

main33555-55011iBJ60,FJ6#,HJ6#..MTM198008-198708

main33555-60040iFJ62,HJ6#..4FC198411-198708

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33505-60010iBJ60,FJ6#,HJ60..MTM198008-198510

sub33505-60011

main33505-60011iBJ60,FJ62,HJ6#..MTM198510-198708

6 parts on this diagram · 6 diagrams in section
