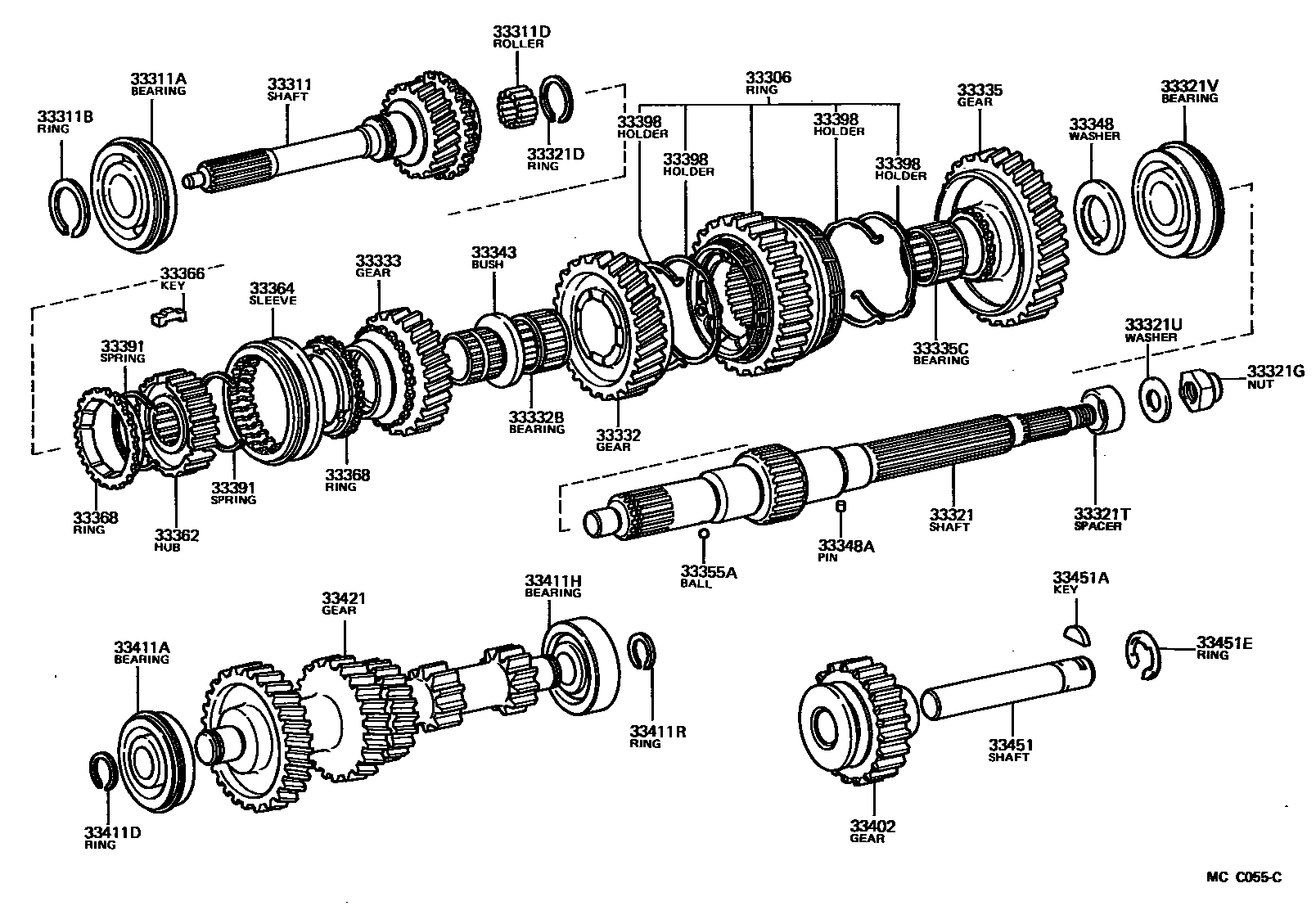

TRANSMISSION GEAR (MTM)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=3.31-3.42,T=3.31-3.42
T=3.20-3.31,T=3.20-3.31
33311DBEARING, INPUT SHAFT
33321SHAFT, OUTPUT
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=2.40-2.45,T=2.40-2.45
T=2.45-2.50,T=2.45-2.50
T=2.50-2.55,T=2.50-2.55
T=2.55-2.60,T=2.55-2.60
T=2.60-2.65,T=2.60-2.65
T=2.65-2.70,T=2.65-2.70
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321TSPACER (FOR OUTPUT SHAFT)
33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33343BUSH, 3RD & 2ND GEAR
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33362HUB, TRANSMISSION CLUTCH, NO.2
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=2.05,MARK 0,T=2.05-2.10
T=2.15,MARK 2,T=2.15-2.20
T=2.25,MARK 4,T=2.25-2.30
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=2.1
33421GEAR, COUNTER
33451SHAFT, REVERSE IDLER GEAR
33451ERING, E (FOR REVERSE IDLER GEAR SHAFT)
35 parts on this diagram · 3 diagrams in section
