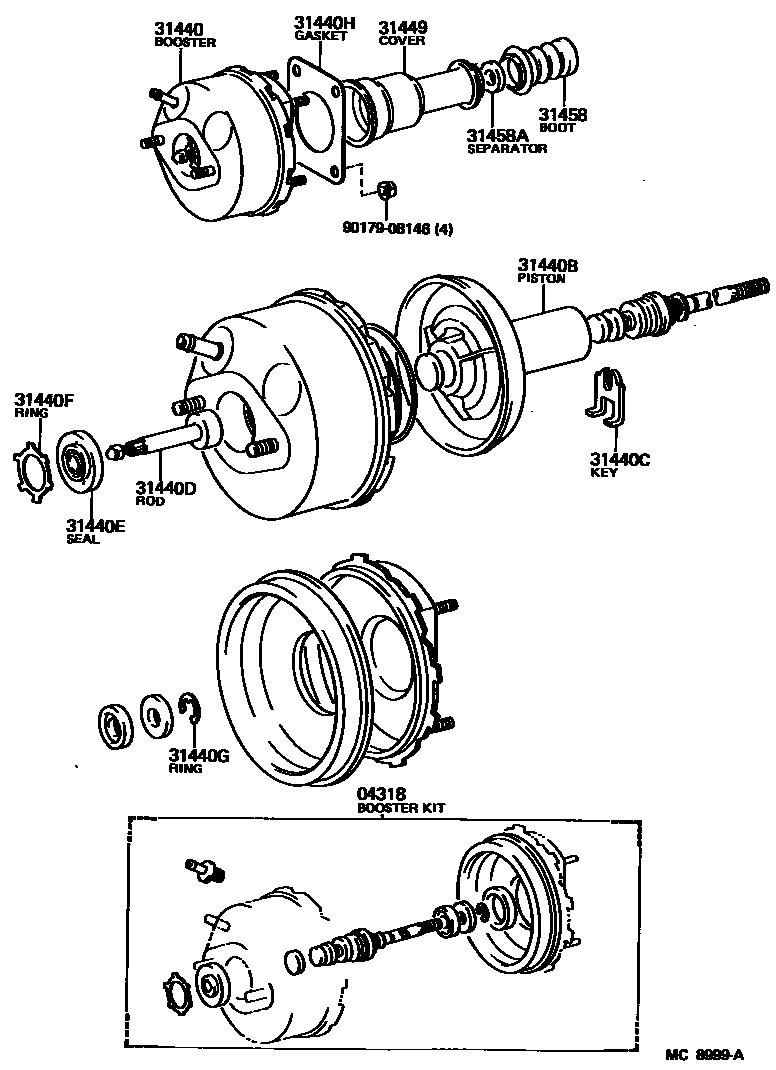

CLUTCH BOOSTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

04318BOOSTER KIT, CLUTCH

main04318-60010iFJ60..ARL,GEN198210-198411

main04318-60030iBJ60,FJ62,HJ6#..MTM198411-198708

31440BOOSTER ASSY, CLUTCH W/AIR CLEANER

main31440-60010iBJ60..RHD198210-198411

main31440-60020iBJ60..LHD198210-198411

main31440-60050iHJ6#..LHD..MTM198411-198708

main31440-60060iBJ60..LHD198411-198708

31440BPISTON, BOOSTER(FOR CLUTCH BOOSTER)

main44642-60020iBJ60,HJ60..RHD198210-198411

main44642-87502iBJ60,FJ62,HJ6#..MTM198411-198708

31440CKEY, VALVE STOPPER(FOR CLUTCH BOOSTER)

main44635-10010iBJ60,HJ60..RHD198210-198411

main44635-12480iBJ60,FJ62,HJ6#..MTM198411-198704

main44635-36010iBJ60,FJ62,HJ6#..MTM198704-198708

31440DROD SUB-ASSY, BOOSTER PISTON(FOR CLUTCH BOOSTER)

main44606-12520iBJ60,FJ62,HJ6#..MTM198411-198708

main44606-32010iBJ60,HJ60..RHD198210-198411

31440ESEAL, BOOSTER BODY NO.1(FOR CLUTCH BOOSTER)

main44621-28120iBJ60,HJ60..RHD198210-198708

31440FRING, CIRCULAR INTERNAL(FOR CLUTCH BOOSTER)

main44628-28120iBJ60,HJ60..RHD198210-198708

31440GRING, E(FOR CLUTCH BOOSTER AIR VALVE)

main96160-01000iBJ60,HJ60..RHD198210-198708

31440HGASKET, CLUTCH BOOSTER BRACKET

main44785-14010iFJ6#..MTM..(ARL,GEN,ME)198210-198708

31449COVER, CLUTCH BOOSTER PISTON

main31449-60010iBJ60,HJ60..RHD198210-198708

31458BOOT, CLUTCH BOOSTER PISTON COVER

main31458-60010iBJ60,HJ6#..MTM198210-198708

31458ASEPARATOR, AIR CLEANER(FOR CLUTCH BOOSTER)

main44672-22120iBJ60,HJ60..RHD198210-198610

9017908146

main90179-08146

13 parts on this diagram · 7 diagrams in section
