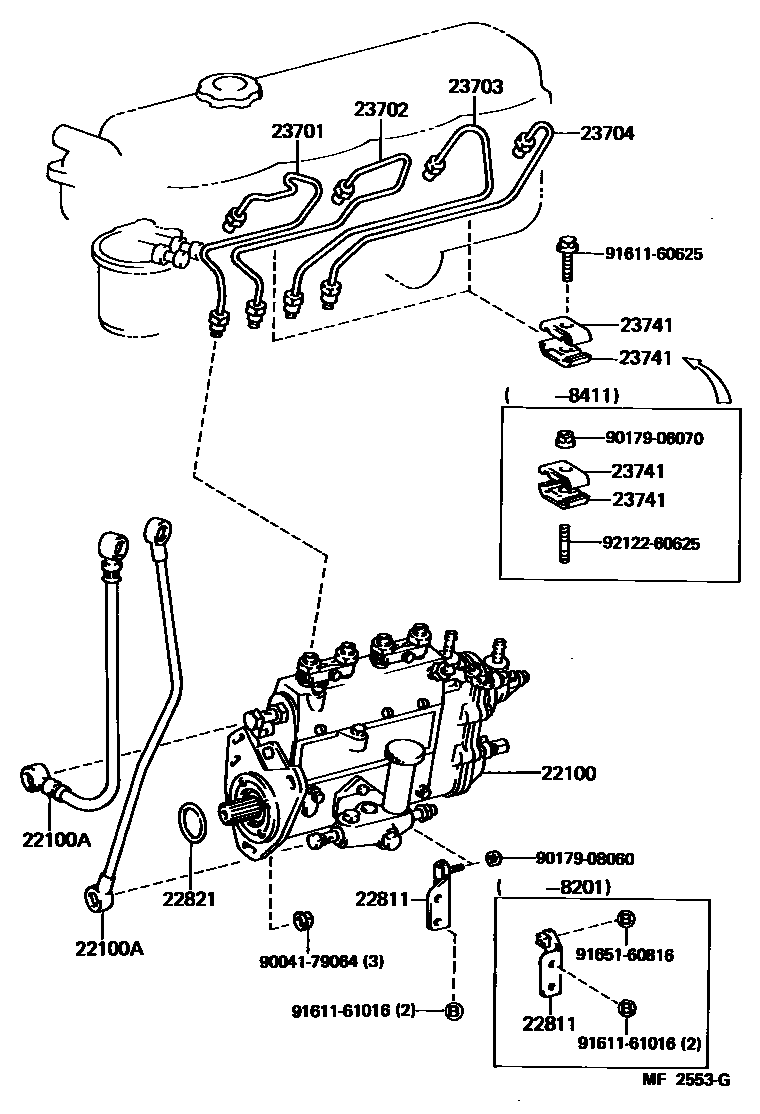

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-58020i3B..BJ60198008-198201

W/EDIC

main22100-58021i3B..BJ60198201-198411

W/EDIC

main22100-58022i3B..BJ60198411-198708

main22100-58030i3B..BJ60198008-198201

W/EDIC & HAC

main22100-58031i3B..BJ60198201-198411

W/EDIC & HAC

main22100-58032i3B..BJ60198411-198702

W/HAC

main22100-58040i3B..BJ60198008-198201

W/HAC

main22100-58041i3B..BJ60198201-198411

W/HAC

sub22100-58042

main22100-58050i3B..BJ60198008-198201

main22100-58051i3B..BJ60198201-198411

sub22100-58052

main22100-68010i2H..HJ60..GEN198008-198110

sub22100-68011

main22100-68020i2H..HJ60198008-198210

W/EDIC

main22100-68030i2H..HJ60..GEN198008-198110

W/HAC

sub22100-68031

main22100-68040i2H..HJ60198008-198210

W/EDIC & HAC

main22100-68041i2H..HJ60..GEN198411-198708

W/HAC

main22100-68050i2H..HJ60..EUR198210-198411

COLD SPEC,W/EDIC

main22100-68051i2H..HJ60..5F..EUR198411-198708

COLD SPEC

main22100-68060i2H..HJ60..GEN198008-198110

COLD SPEC,W/EDIC & HAC

main22100-68100i2H..HJ60198210-198411

W/EDIC

main22100-68101i2H..HJ60..MTM198411-198708

main22100-68110i2H..HJ60..4FC198411-198612

main22100-68130i2H..HJ60..4FC..EUR198411-198708

COLD SPEC

main22100-68150i12HT..HJ61..5F..ARL198703-198708

main22100-68160i12HT..HJ61..EUR198510-198708

COLD SPEC

main22100-68170i12HT..HJ61..4FC198608-198708

main22100-68190i12HT..HJ61..4FC198510-198608

main22100-68200i12HT..HJ61..5F..ARL198510-198703

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-56040i3B..BJ60198008-198409

FEED PUMP TO FILTER

main23801-56060i3B..BJ60198409-198708

PIPE L=300,FEED PUMP TO FILTER

main23801-68010i2H..HJ60198008-198204

FEED PUMP TO FILTER

main23801-68020i2H..HJ60198008-198204

PUMP TO FILTER,W/TWIN FILTER

main23801-68030i2H..HJ60198110-198708

PIPE L=336,FEEDPUMP TO FILTER,W/CARTRIDGE

main23802-56040i3B..BJ60198008-198708

HOSE L=210,FILTER TO INJECTION PUMP

main23802-68010i2H..HJ60198008-198204

FILTER TO PUMP BODY

main23802-68020i2H..HJ60198110-198708

PIPE L=216,FILTER TO PUMPBODY,W/CARTRIDGE

main23906-68010i12HT..HJ61198510-198708

HOSE L=195,HOSE

22811STAY, INJECTION PUMP, NO.1

main22811-56010i3B..BJ60198008-198201

main22811-56011i3B..BJ60198201-198708

main22811-68010i2H..HJ60198008-198708

main22811-68020i12HT..HJ61198510-198708

22821GASKET, INJECTION PUMP

main90301-77001i3B..BJ60198008-198708

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56030i3B..BJ60198008-198708

main23701-68010i2H..HJ60198008-198708

main23701-68020i12HT..HJ61198510-198708

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56030i3B..BJ60198008-198708

main23702-68010i2H..HJ60198008-198708

main23702-68020i12HT..HJ61198510-198708

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56020i3B..BJ60198008-198708

main23703-68010i2H..HJ60198008-198708

main23703-68020i12HT..HJ61198510-198708

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56020i3B..BJ60198008-198708

main23704-68010i2H..HJ60198008-198708

main23704-68020i12HT..HJ61198510-198708

23741CLAMP, INJECTION PIPE, NO.1

main23741-48010×10i12HT,2H..HJ6#198012-198708

main23741-56010×10i3B..BJ60198008-198012

9004179064

main90041-79064

9017906070

main90179-06070

9017908060

main90179-08060

9161160625

main91611-60625

9161161016

main91611-61016

9165160816

main91651-60816

9212260625

main92122-60625

16 parts on this diagram · 3 diagrams in section
