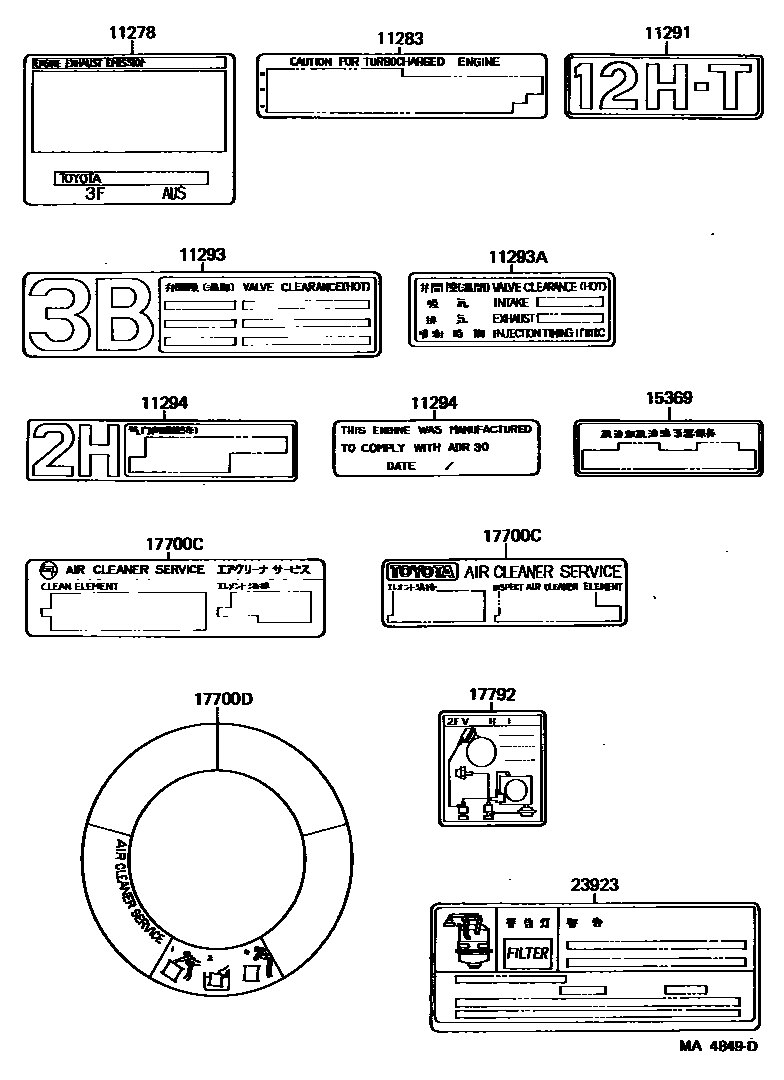

CAUTION PLATE & NAME PLATE (ENGINE)

11278PLATE, ENGINE EMISSION IDENTIFICATION

main11278-61020i3F..FJ62..ARL198411-198708

11283PLATE, TURBOCHARGER CAUTION

main11294-64020i12HT..HJ61198510-198708

sub11294-64050

11291PLATE, ENGINE NAME

main11291-68010i12HT..HJ61198510-198708

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-58010i3B..BJ60198008-198708

3B

main11293-61040i3F..FJ62198411-198708

3F

main11293-61050i3F..FJ62..LHD..4F..LUB;3F..FJ62..LHD..SOB..GEN198510-198708

CHINA SPEC

main11293-68010i2H..HJ60198008-198110

2H

main11293-68010i2H..HJ60..EUR198110-198210

main11293-68011i2H..HJ60..ARL,GEN198110-198708

11293APLATE, ENGINE CAUTION

main11293-68020i12HT..HJ61198510-198708

11294PLATE, ENGINE CAUTION, NO.2

main11278-54010i12HT,2H..HJ6#..ARL198411-198708

main11278-77010i2H..HJ60..ARL198008-198411

main11294-58020i3B..BJ60..LHD..4F198510-198708

main11294-68010i2H..HJ60..LHD..4F;2H..HJ60..HRF..GEN198510-198708

CHINA SPEC

15369PLATE, ENGINE OIL CAUTION

main15369-61010i3F..FJ62..LHD..4F..LUB;3F..FJ62..LHD..SOB..GEN198510-198708

CHINA SPEC

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-56190i2H..HJ60..HRF..GEN;3B,2H..BJ60,HJ60..LHD..4F198510-198512

CHINA SPEC OIL BATH

main17791-56200i3B,3F..BJ60,FJ62..LHD..4F198510-198608

CHINA SPEC PAPER ELEMENT

main17791-61051i3B,2F,2H..BJ60,FJ60,HJ60..GEN198008-198010

OIL BATH AIR CLEANER

sub17791-61052

main17791-61052i3F..FJ62..GEN;3B,2F,2H..BJ60,FJ60,HJ60..GEN,ME198010-198708

OIL BATH

main17791-61052i3F..FJ62..ME198411-198510

*47 & OIL BATH

main17791-64020i12HT,3B,2F,3F,2H..BJ60,FJ6#,HJ6#198307-198708

main17791-68010i3B,2F,2H..BJ60,FJ60,HJ60198210-198307

PAPER ELEMENT OR CYCLONE

main17791-77052i3B,2F,2H..BJ60,FJ60,HJ60198008-198210

PAPER ELEMENT OR CYCLONE

main90917-07108i2H..HJ60..LHD..4F;2H..HJ60..HRF..GEN;2H..HJ60..RHD..SRF..(ARL,GEN);12HT,3B..BJ60,HJ61..ARL,GEN,ME198608-198708

AIR CLEANER

17700DPLATE, ENGINE CAUTION

main11293-61011i2F..FJ60198008-198411

main90917-07109i2H..HJ60..LHD..4F;2H..HJ60..HRF..GEN;2H..HJ60..RHD..SRF..(ARL,GEN);12HT,3B..BJ60,HJ61..ARL,GEN,ME198608-198708

main90917-07109i3F..FJ62198608-198708

ELEMENT

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-61060i2F..FJ60..EUR198008-198411

main17792-61060i2F..FJ60..RHD..GEN198008-198202

HONG KONG SPEC

main17792-61090i3F..FJ62..ARL198411-198508

sub17792-61091

main17792-61091i3F..FJ62..ARL198508-198708

main17792-61100i3F..FJ62..5F..ME198411-198508

sub17792-61101

main17792-61101i3F..FJ62..5F..ME198508-198509

main17792-61102i3F..FJ62..5F..ME198509-198708

main17792-61110i3F..FJ62..4FC..ME198411-198508

sub17792-61111

main17792-61111i3F..FJ62..4FC..ME198508-198509

main17792-61112i3F..FJ62..4FC..ME198509-198708

23923PLATE, FUEL SEDIMENTER CAUTION

main23923-56020i2H..HJ60..HRF..GEN;3B,2H..BJ60,HJ60..LHD..4F198510-198708

CHINA SPEC W/SEDIMENTER

main23923-68010i2H..HJ60..LHD..4F;2H..HJ60..HRF..GEN198511-198708

CHINA SPEC W/SEDIMENTER

11 parts on this diagram · 1 diagram in section
