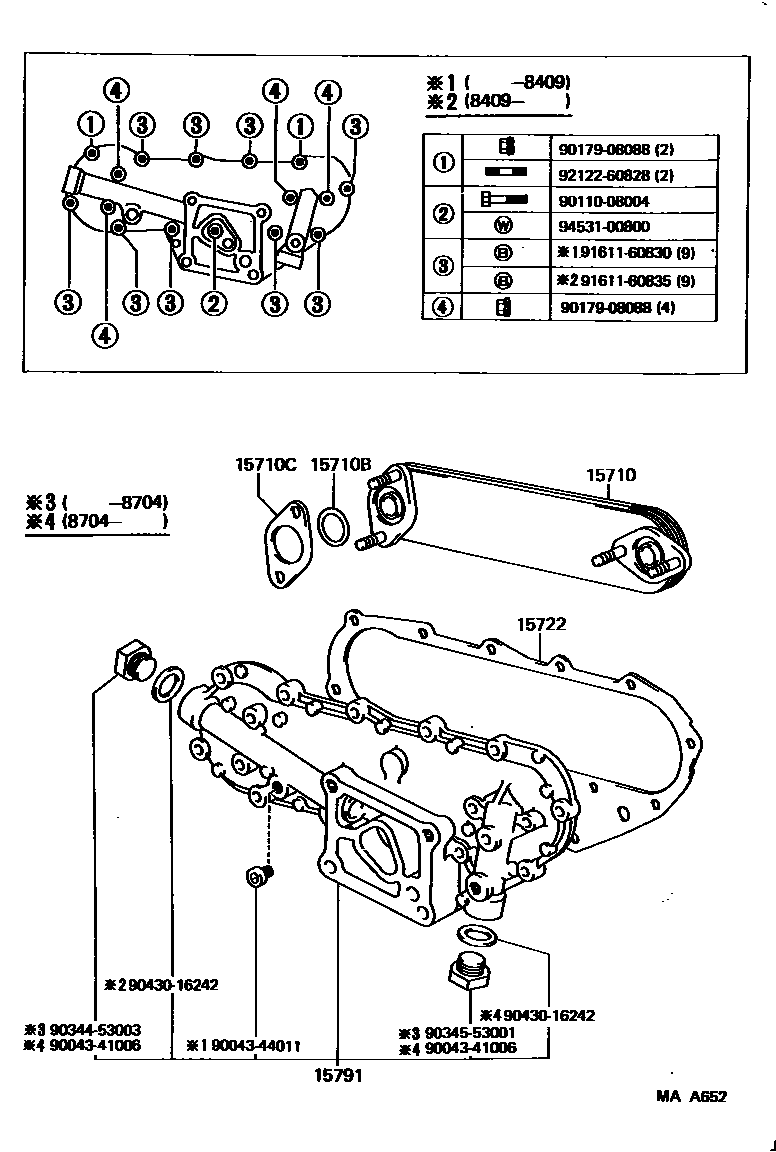

ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1

15710COOLER ASSY, OIL

main15710-56040i3B..BJ60198008-198409

sub15710-56041

main15710-56041i3B..BJ60198409-198708

main15710-61010i3F..FJ62..GEN,ME198008-198708

main15710-68010i2H..HJ60198008-198708

TWO CORES

main15710-68020i2H..HJ60..GEN198008-198110

THREE CORES

main15710-68020i12HT..HJ61198510-198708

15710BRING, O(FOR OIL COOLER)

main90301-20001i3B..BJ60198008-198708

main90301-21176i12HT,2H..HJ6#198008-198708

15710CGASKET(FOR OIL COOLER)

main90430-18012i2F,3F..FJ6#..GEN,ME198008-198708

main90923-05014i3B..BJ60198008-198708

sub90923-05018

15722GASKET, OIL COOLER

main15725-56010i3B..BJ60198008-198403

sub15725-56011

main15725-56011i3B..BJ60198403-198708

sub15725-56020

main90923-05013i12HT,2H..HJ6#198008-198708

sub90923-05023

15791CASE, OIL COOLER

main15701-56010i3B..BJ60198008-198403

sub15701-56011

main15701-56011i3B..BJ60198403-198708

9004341006

main90043-41006

9004344011

main90043-44011

9011008004

main90110-08004

9017908088

main90179-08088

9034453003

main90344-53003

9034553001

main90345-53001

9043016242

main90430-16242

9161160830

main91611-60830

9161160835

main91611-60835

9212260828

main92122-60828

9453100800

main94531-00800

16 parts on this diagram · 4 diagrams in section
