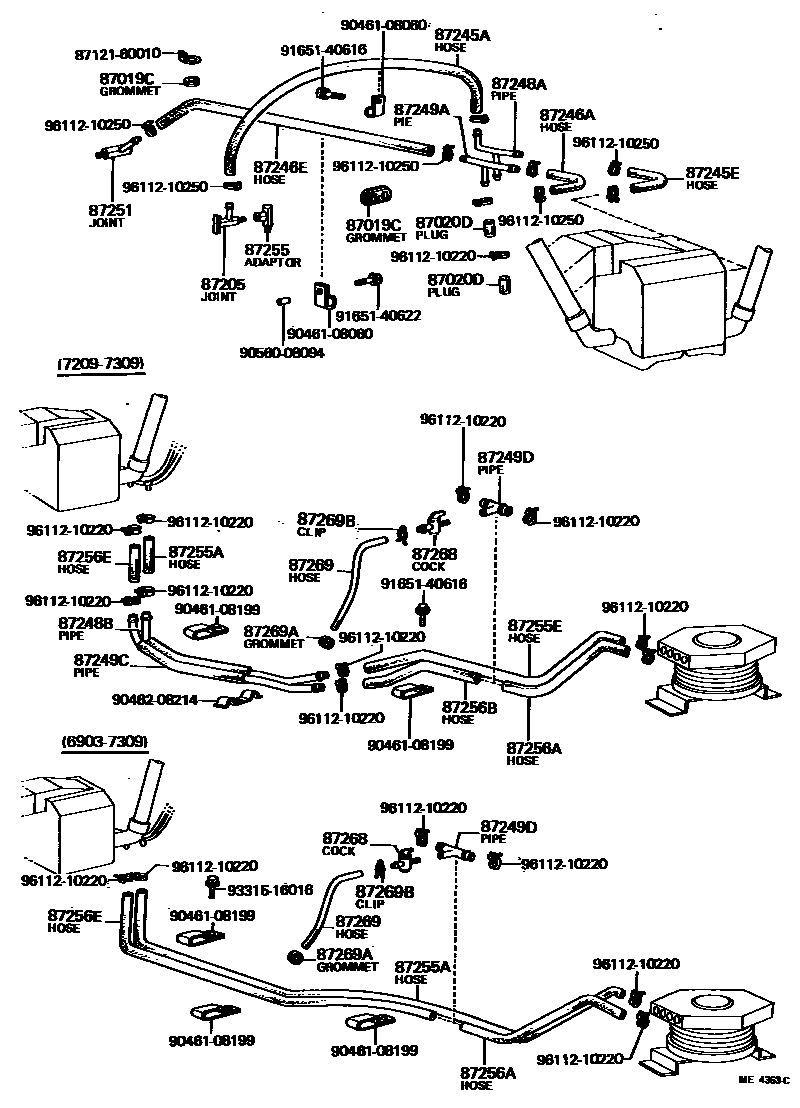

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

87019CGROMMET, HEATER HOSE

main90480-01167iBJ4#,FJ4#,55,HJ45196903-198007

main90480-34347iFJ4#,55197209-197309

FOR HOSE CLAMP

87020DPLUG (FOR REAR HEATER CONNECTOR BLIND)

main32934-20010iFJ4#,55196903-197309

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87204-60040iHJ45197209-197306

main87204-60041iHJ45197306-197901

main87206-60090iFJ40,43,45,55196903-197211

sub87206-60100

main87206-60100iFJ4#,55197211-197309

sub87206-60101

main87251-30181iFJ4#,55198001-198004

main87251-30190iBJ4#197402-198007

main87251-60020iFJ4#,55197309-198001

sub87251-30181

sub87251-60040

main87251-95400iHJ45197901-198007

87245AHOSE, HEATER WATER, INLET A

main90445-24088iFJ4#196903-197104

L=720

sub99551-30720

main90445-24248iFJ55196908-197010

L=680

sub90445-24667

main90445-24313iFJ55196903-196908

L=750

sub99552-30780

main90445-24667iFJ55197010-197104

L=620

sub99551-30620

main99551-30470iHJ45197211-197212

L=470

sub99552-30470

main99551-30520iHJ45197209-197211

L=520

sub99551-30470

main99551-30620iFJ55197104-197212

L=620

sub99552-30620

main99551-30720iFJ4#197104-197209

L=720

sub99552-30720

main99552-30300iHJ45197901-198007

L=300

sub99556-30300

main99552-30310iBJ4#197402-198007

L=310

sub99552-30500

main99552-30400iHJ45197309-198007

*H,L=400

sub99552-30500

main99552-30430iHJ45197309-197901

L=430

sub99552-30500

main99552-30470iHJ45197212-197306

L=470

sub99552-30500

main99552-30520iHJ45197306-198007

*H,L=520

sub99552-30700

main99552-30620iFJ4#,55197212-197309

L=620

sub99552-30700

87245EHOSE, HEATER WATER, INLET E

main99551-30150iFJ55196903-197212

L=150

sub99552-30150

main99551-30250iFJ4#196903-197212

L=250

sub99552-30250

main99552-30055iFJ55197309-198007

L=55

sub99552-30075

main99552-30075iFJ4#,HJ45197402-197509

*H,L=75

sub99552-30100

main99552-30150iFJ55197212-197309

L=150

sub99552-30180

main99552-30250iFJ4#,HJ45197212-197309

L=250

sub99552-30300

87246AHOSE, HEATER WATER, OUTLET A

main99551-30150iFJ55196903-197212

L=150

sub99552-30150

main99551-30250iFJ4#,HJ45196903-197212

L=250

sub99552-30250

main99552-30055iBJ4#,FJ55197309-198007

L=55

sub99552-30075

main99552-30075iFJ4#,HJ45197402-197509

*H,L=75

sub99552-30100

main99552-30150iFJ55197212-197309

L=150

sub99552-30180

main99552-30250iFJ4#,HJ45197212-197309

L=250

sub99552-30300

87246EHOSE, HEATER WATER, OUTLET E

main87209-60090iHJ45198004-198007

main87245-60050iFJ4#197309-197501

main87247-20051iBJ4#197402-198007

sub87245-30331

main90445-24190iFJ4#196903-197104

L=850

sub99552-30860

main90445-24310iFJ55196903-197104

L=900

sub99551-30900

main99551-30240iHJ45197209-197212

L=240

sub99552-30240

main99551-30860iFJ4#197104-197212

L=860

sub99552-30860

main99551-30900iFJ55197104-197212

L=900

sub99552-30900

main99552-30150iFJ55..RHD..(ARL,GEN)197602-197901

L=150,W/COOLER

sub99552-30180

main99552-30180iFJ55197309-197501

L=180

sub99552-30200

main99552-30180iFJ55..RHD..(ARL,GEN)197501-197602

L=180,W/COOLER

sub99552-30200

main99552-30210iFJ55..LHD..GEN197501-197901

L=210,W/COOLER

sub99552-30300

main99552-30230iFJ40,45..(PIC,V)..GEN197901-198007

L=230,W/COOLER

sub99552-30300

main99552-30240iHJ45197212-198004

L=240

sub99552-30300

main99552-30290iFJ55197501-198007

*H,L=290

sub99552-30300

main99552-30320iFJ4#197503-198007

L=320

sub99552-30500

main99552-30350iFJ4#197501-197503

L=350

sub99552-30500

main99552-30860iFJ4#197212-197309

L=860

sub99552-31000

main99552-30900iFJ55197212-197309

L=900

sub99552-31000

87248APIPE, HEATER WATER INLET, A

main87248-60091iFJ55196903-197309

main87248-60092iFJ55197309-198007

main87248-60100iFJ4#196903-197309

main87248-60101iFJ4#,HJ45197309-197402

sub87248-60102

sub87173-60040

sub99552-30100

main87248-60102iFJ4#,HJ45197402-198007

main87248-60170iHJ45197209-197309

main87248-60190iFJ40,43197309-197402

FOR W/REAR HEATER

sub87248-60192

sub87173-60040

sub99552-30100

main87248-60191iFJ4#..TP,V197402-197901

FOR W/REAR HEATER

sub87248-60192

main87248-60192iHJ45..VKC197901-198007

FOR W/REAR HEATER

main87248-60220iFJ55197309-198007

FOR W/REAR HEATER

main87248-60240iBJ4#197402-198007

main87248-60250iBJ4#197402-197901

FOR W/REAR HEATER

sub87248-60251

main87248-60251iBJ4#197901-198007

FOR W/REAR HEATER

main87248-60280iFJ4#..LHD..GEN197901-198007

W/COOLER

main87248-60300iFJ4#..LHD..(TP,V)..GEN197901-198007

FOR W/REAR HEATER & COOLER

main87248-60330iBJ40..V..GEN197909-198007

W/COOLER

main87248-60350iBJ40..V..GEN197909-198007

FOR W/REAR HEATER & COOLER

87248BPIPE, HEATER WATER INLET, B

main87248-60120iBJ4#,FJ4#..TP,V197309-197709

main87248-60122iBJ4#,FJ4#..TP,V197709-197901

main87248-60123iHJ45..VKC197901-198007

main87248-60130iFJ40..V197209-197309

main87248-60141iFJ55197209-197707

main87248-60143iFJ55197707-198007

87249APIPE, HEATER WATER OUTLET, A

main87248-60160iHJ45197209-197306

main87248-60161iHJ45197306-197309

main87248-60162iHJ45197309-197402

sub87248-60163

sub87173-60040

sub99552-30100

main87248-60163iHJ45197402-198007

main87248-60200iFJ40,43197309-197402

FOR W/REAR HEATER

sub87248-60201

sub99552-30075

main87248-60201iFJ4#..TP,V197402-197901

FOR W/REAR HEATER

sub87248-60202

main87248-60202iFJ4#..TP,V197901-198007

FOR W/REAR HEATER

main87248-60230iFJ55197309-198007

FOR W/REAR HEATER

main87248-60290iFJ4#..LHD..GEN197901-198007

W/COOLER

main87248-60310iFJ4#..LHD..(TP,V)..GEN197901-198007

FOR W/REAR HEATER & COOLER

main87248-60320iHJ45..VKC197904-198007

FOR W/REAR HEATER

main87248-60340iBJ40..V..GEN197901-198007

W/COOLER

main87248-60360iBJ40..V..GEN197909-198007

FOR W/REAR HEATER & COOLER

main87249-60091iFJ55196903-197309

main87249-60092iFJ55197309-198007

main87249-60100iFJ4#196903-197309

main87249-60101iFJ4#197309-197402

sub87249-60103

sub87173-60040

sub99552-30100

main87249-60102iFJ4#197402-197901

sub87249-60103

main87249-60103iFJ4#197901-198007

main87249-60110iBJ4#197402-198007

main87249-60120iBJ4#197402-197901

FOR W/REAR HEATER

sub87249-60121

main87249-60121iBJ4#197901-198007

FOR W/REAR HEATER

87249CPIPE, HEATER WATER OUTLET, C

main87248-60120iFJ40..V197209-197309

main87248-60130iBJ4#,FJ4#..TP,V197309-197709

main87248-60132iBJ4#,FJ4#..TP,V197709-197901

main87248-60133iBJ4#,FJ4#..TP,V197901-198007

main87248-60151iFJ55197209-197707

main87248-60153iFJ55197707-198007

87249DPIPE, HEATER WATER OUTLET, D

main87266-60040iFJ40,55..VKC,VLS,VTG196903-197309

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-30010iFJ4#,55196903-197310

sub87251-30190

main87251-30180iHJ45197209-197306

sub87251-30181

main87251-30190iFJ4#,55197310-197501

main87251-30200iBJ4#197402-198007

main87251-60010iHJ45197306-198004

87255ADAPTER, WATER HOSE JOINT

main87251-60040iFJ4#,55198001-198005

sub87251-60041

main87251-60041iFJ4#,55198005-198007

main87256-60031iFJ4#,55196903-198001

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main99551-20070iFJ40,55..VKC,VLS,VTG197209-197212

L=70

sub99552-20070

main99551-21200iFJ55196903-197209

L=1200

sub99552-21260

main99551-21550iFJ40..V196903-197209

L=1550

sub99552-21550

main99552-20060iBJ4#,FJ4#..TP,V197901-198007

L=60

sub99552-20100

main99552-20070iFJ40,55..VKC,VLS,VTG197212-197309

L=70

sub99552-20100

main99552-20085iFJ55197309-198007

L=85

87255EHOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)

main99551-20360iFJ55197211-197212

L=360

sub99552-20360

main99551-20420iFJ55197209-197211

L=420

sub99551-20360

main99551-20580iFJ40..V197209-197212

L=580

sub99552-20580

main99552-20060iHJ45..VKC197709-198007

L=60

sub99552-20100

main99552-20330iFJ55197411-197707

L=330

sub99552-20500

main99552-20360iFJ55197309-197411

L=360

sub99552-20500

main99552-20580iBJ4#,FJ4#..TP,V197212-197709

L=580

sub99552-20700

main99552-30660iFJ55197212-197309

L=660

sub99552-30700

87256AHOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)

main99551-20250iFJ55196903-197212

L=250

sub99552-20250

main99551-20360iFJ40..V197209-197212

L=360

sub99552-20360

main99552-20060iBJ4#,FJ4#..TP,V197709-198007

L=60

sub99552-20100

main99552-20250iFJ55197212-197309

L=250

sub99552-20300

main99552-20360iFJ55197212-197707

L=360

sub99552-20500

main99552-20580iBJ4#,FJ4#..TP,V197309-197709

L=580

sub99552-20700

87256BHOSE, REAR HEATER WATER OUTLET, B

main99551-20120iFJ55197211-197212

L=120

sub99552-20120

main99551-20190iFJ55197209-197212

L=190

sub99551-20200

main99552-20120iFJ55197212-197309

L=120

sub99552-20200

main99552-20190iFJ40..V197212-197309

L=190

87256EHOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

main99551-20070iFJ40,55..VKC,VLS,VTG197209-197212

L=70

sub99552-20070

main99551-21000iFJ55196903-197209

L=1000

sub99552-21080

main99551-21320iFJ40..V196903-197209

L=1320

sub99552-21360

main99552-20060iBJ4#,FJ4#..TP,V197901-198007

L=60

sub99552-20100

main99552-20070iFJ40,55..VKC,VLS,VTG197212-197309

L=70

sub99552-20100

main99552-20085iBJ4#,FJ4#,55..TPB,TPC,TPS,VKC,VLS,VTG197309-198007

L=85

87268COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87254-60020iFJ40,55..VKC,VLS,VTG196903-197309

87269HOSE, REAR HEATER WATER DRAIN

main90445-10738iFJ40,55..VKC,VLS,VTG197105-197309

main90446-09107iFJ40,55..VKC,VLS,VTG196903-197105

sub90445-10738

87269AGROMMET(FOR REAR HEATER WATER DRAIN HOSE)

main90480-13110iFJ40,55..VKC,VLS,VTG196903-197105

main90480-13334iFJ40,55..VKC,VLS,VTG197105-197309

87269BCLIP(FOR REAR HEATER WATER DRAIN HOSE)

main90524-08010iFJ40,55..VKC,VLS,VTG196903-197105

8712160010BRACKET, HEATER, FRONT RH

main87121-60010

9046108060

main90461-08060

9046108199

main90461-08199

9046208214

main90462-08214

9056008094

main90560-08094

9165140616

main91651-40616

9165140622

main91651-40622

9331516016

main93315-16016

9611210220

main96112-10220

9611210250

main96112-10250

33 parts on this diagram · 8 diagrams in section
