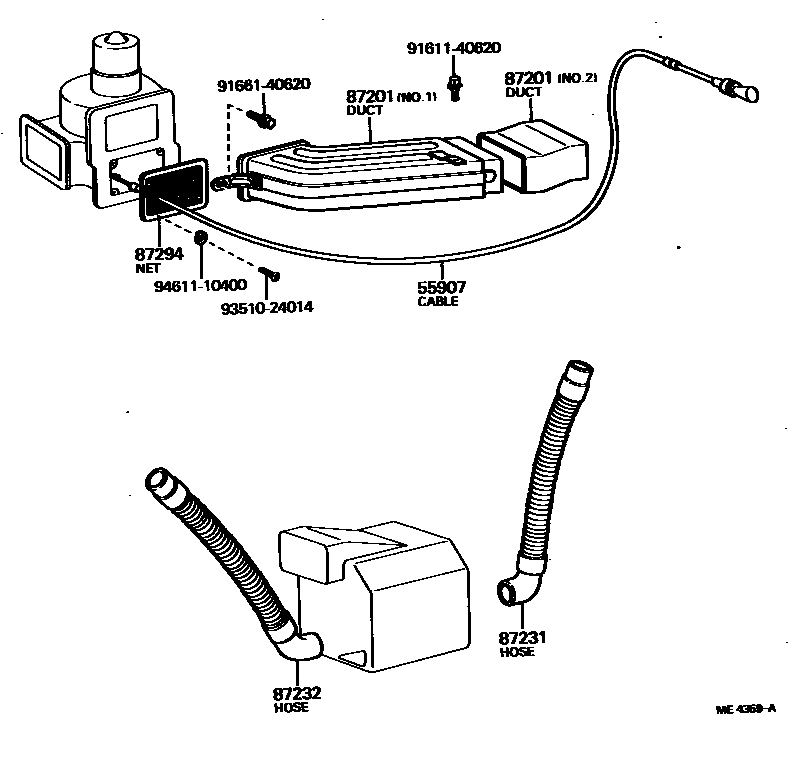

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main87286-60091iFJ55196903-197309

L=981

main87286-60092iFJ55..RHD197309-197405

L=970

sub87286-90350

main87286-60120iFJ55..LHD197309-197405

L=840

sub87286-90351

main87286-90350iFJ55..RHD197405-198007

L=970

main87286-90351iFJ55..LHD197405-198007

L=840

main87296-60030iFJ4#196903-197209

main87296-60031iFJ4#,HJ45197204-197309

main87296-60032iBJ4#,FJ4#,HJ45197309-198007

sub87296-60033

87201DUCT SUB-ASSY, AIR, NO.1

main87211-60030iFJ40,43,45,HJ45..LHD196903-197309

NO.1

main87211-60031iBJ4#,FJ4#,HJ45..LHD197309-198007

main87211-60061iFJ40,43,45,HJ45..RHD196903-197309

NO.1

main87211-60062iBJ4#,FJ4#,HJ45..RHD197309-198007

main87211-60093iFJ55..LHD196903-197309

main87211-60094iFJ55..LHD197309-198007

main87211-60103iFJ55..RHD196903-197309

main87211-60104iFJ55..RHD197309-198007

main87211-60150iBJ40,FJ40,45..RHD..(PIC,V)197901-198007

W/COOLER

main87211-60160iFJ4#..LHD..GEN197901-198007

W/COOLER

main87211-60160iBJ40..LHD..V..GEN197909-198007

W/COOLER FOR 12V

main87212-60031iFJ4#,HJ45196903-197309

NO.2

87231HOSE, HEATER DEFROSTER, RH

main87231-60031iFJ4#196903-197309

main87231-60032iBJ4#,FJ4#,HJ45..LHD197309-198007

main87231-60090iFJ55..RHD196903-197901

L=400

main87231-60091iFJ55..RHD197901-198007

L=400

main87231-60110iFJ4#..LHD..EUR197608-198007

W/SIDE DEFROSTER

main87231-60130iBJ4#,FJ4#,HJ45..RHD197610-197901

main87232-60100iFJ55..RHD196903-197901

L=650

main87232-60101iFJ55..RHD197901-198007

L=650

main87232-60120iFJ55..RHD197403-197901

FOR BOOST VENTILATOR

main87232-60121iFJ55..RHD197901-198007

FOR BOOST VENTILATOR

main87233-60091iFJ55..LHD196903-198007

87232HOSE, HEATER DEFROSTER, LH

main87231-60031iFJ4#,HJ45..RHD196903-197309

main87231-60032iBJ4#,FJ4#,HJ45..RHD197309-197610

main87231-60090iFJ55..LHD196903-197901

L=400

main87231-60101iFJ4#,HJ45..LHD196903-197309

main87231-60102iBJ4#,FJ4#,HJ45..LHD197309-198007

main87231-60120iFJ4#..LHD..EUR197608-198007

W/SIDE DEFROSTER

sub87231-60102

main87231-60130iBJ4#,FJ4#,HJ45..RHD197610-197901

main87231-60131iBJ4#,FJ4#,HJ45..RHD197901-198007

main87231-60140iBJ4#,FJ4#,HJ45..RHD197901-198007

W/COOLER

main87232-60091iFJ55..LHD196903-198007

L=450

main87232-60092iFJ55..LHD197901-198007

L=400

main87232-60110iFJ55..LHD197403-197901

FOR BOOST VENTILATOR

main87232-60111iFJ55..LHD197901-198007

FOR BOOST VENTILATOR

main87233-60091iFJ55..RHD196903-198007

87294NET, AIR DUCT

main87294-60030iFJ4#,HJ45196903-197309

main87294-60031iBJ4#,FJ4#,HJ45197309-198007

main87294-60090iFJ55196903-197309

9161140620

main91611-40620

9166140620

main91661-40620

9351024014

main93510-24014

9461110400

main94611-10400

9 parts on this diagram · 7 diagrams in section
