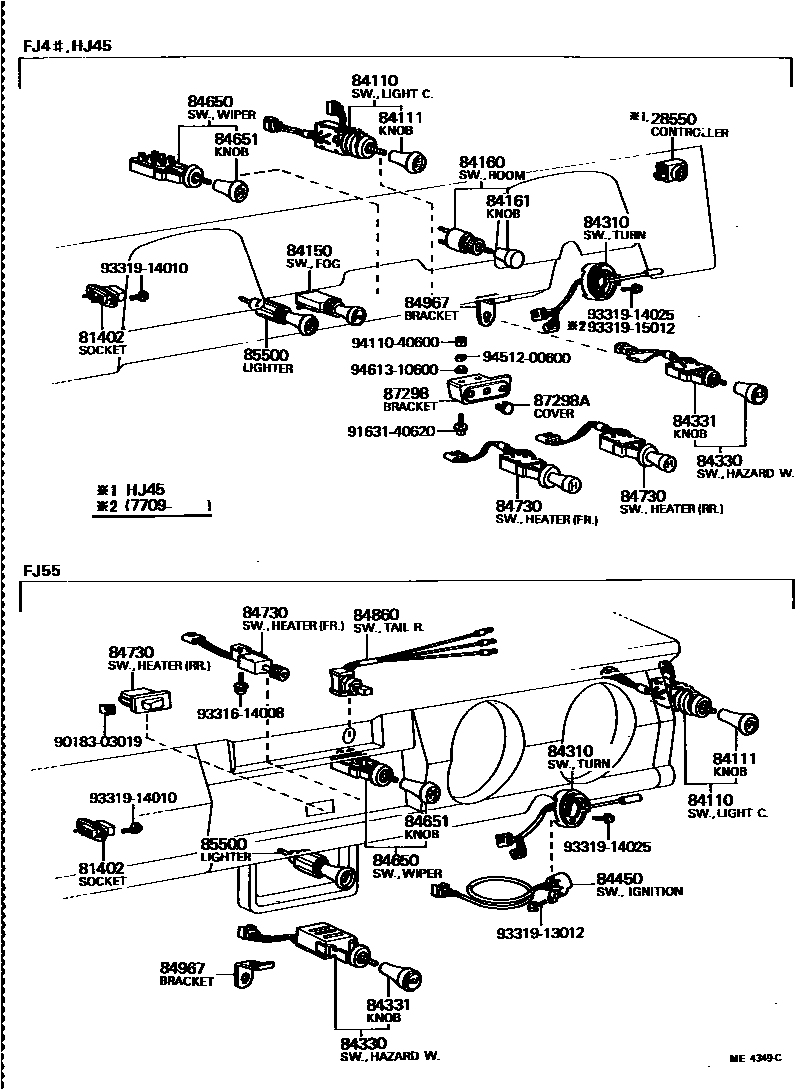

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

28550CONTROLLER ASSY, GLOW PLUG

main28550-46021iB..BJ4#197507-198007

FOR 12V

main28550-46030iB..BJ4#197402-197411

FOR 24V

main28550-46031iB..BJ4#197411-198007

FOR 24V

main28550-47020iH..HJ45197204-197411

main28550-47021iH..HJ45..ARL,GEN197411-198007

FOR 12V

main28550-47030iH..HJ45..EUR197901-198007

FOR 24V

81402SOCKET SUB-ASSY, INSPECTION LAMP, NO.1

main81402-20020iBJ4#,FJ4#,HJ45197709-197712

sub81402-29015

main81402-29015iBJ4#,FJ4#,HJ45197109-197709

sub81402-29016

main81402-29016iBJ4#,FJ4#,HJ45197712-198007

main81420-35010iFJ4#,55196903-197709

84110SWITCH ASSY, LIGHT CONTROL, NO.1

main84110-60030iFJ4#,55196903-197109

main84110-60031iFJ4#,55,HJ45197109-197209

main84112-14040iBJ4#,FJ4#,55,HJ45197209-197709

sub84112-20020

main84112-60020iBJ4#,FJ4#,55,HJ45197709-198007

84111KNOB, LIGHT CONTROL SWITCH

main84111-20031iBJ4#,FJ4#,55,HJ45197209-198007

main84111-60021iFJ4#,55,HJ45196903-197209

84150SWITCH ASSY, FOG LAMP

main84160-55021iBJ4#,FJ4#,HJ45197309-197709

main84160-55030iFJ4#,HJ45..ARL,GEN197709-197804

sub84162-60010

sub84161-37010

sub90984-01007

main84160-60020iFJ4#,HJ45196903-197309

main84162-60010iFJ4#,HJ45..ARL,GEN197804-198007

84160SWITCH ASSY, ROOM LAMP

main84270-60010iFJ40,42,43..TP196903-197109

main84270-60020iFJ40,42,43..TP197109-197309

84161KNOB, ROOM LAMP SWITCH

main84271-60011iFJ40,42,43..TP196903-197309

84310SWITCH ASSY, TURN SIGNAL

main84310-60011iFJ40,43..RHD196903-197006

sub84310-60012

main84310-60012iFJ40,43..RHD197006-197109

main84310-60014iFJ4#,55,HJ45..RHD197209-197709

main84310-60021iFJ4#..LHD196903-197006

sub84310-60022

main84310-60022iFJ4#..LHD197006-197109

main84310-60023iFJ4#,HJ45..LHD197109-197209

main84310-60024iFJ4#,55..LHD197209-197709

main84310-60031iFJ45..RHD196903-197006

sub84310-60032

main84310-60032iFJ45..RHD197006-197109

main84310-60033iFJ40,43,45,HJ45..RHD197109-197209

main84310-60041iFJ55196903-197209

main84310-60050iFJ55..RHD197109-197209

W/STEERING LOCK

sub84310-89104

main84310-60060iBJ4#,FJ4#,55,HJ45..RHD197402-198007

sub84310-60062

main84310-60070iBJ4#,HJ45..LHD197402-198007

sub84310-60072

84330SWITCH ASSY, HAZARD WARNING SIGNAL

main84330-60010iFJ4#..LHD196903-197109

main84330-60020iFJ4#,55,HJ45197109-197209

main84330-60030iFJ4#,55,HJ45197209-197309

main84332-60020iBJ4#..GEN197501-197709

FOR 24V

main84332-60021iFJ55..ARL,EUR197709-198007

main84332-60030iBJ4#,FJ4#,55,HJ45197309-197909

main84332-60030iBJ4#..GEN197501-197709

FOR 12V

main84332-60040iBJ4#,FJ4#,HJ45..EUR197909-198007

FOR RED INDICATOR

84331KNOB, HAZARD WARNING SIGNAL SWITCH

main84331-20031iFJ4#,55,HJ45..EUR,GEN197209-198007

main84331-20031iBJ4#..EUR197501-198007

FOR 12V

main84331-60010iFJ40,43,45,55,HJ45197109-197209

main84331-60020iBJ4#..GEN197501-198007

FOR 24V

84450SWITCH ASSY, IGNITION OR STARTER

main84450-12020iFJ55..RHD197109-197209

AUSTRALIA SPEC.

sub84450-12021

main84450-36011iFJ4#,55197209-197501

sub84450-60070

main84450-60050iFJ4#,55197709-198007

sub84450-60070

main84450-60060iFJ4#,55197501-197709

sub84450-60050

84650SWITCH ASSY, WINDSHIELD WIPER

main84650-60040iFJ55196903-197109

main84650-60050iFJ4#,55,HJ45196903-197209

main84650-60051iFJ4#,55,HJ45197209-197309

main84650-60061iFJ40,42,43..TP196903-197209

FOR HINGED WINDSHIELD

main84650-60062iFJ40,43..TP197209-197309

FOR HINGED WINDSHIELD

main84652-27010iBJ4#,FJ4#,55,HJ45197709-198007

main84652-60010iBJ4#,FJ4#,55,HJ45197309-197709

main84652-60020iFJ40,43..TP197309-197709

FOR HINGED WINDSHIELD

84651KNOB, WINDSHIELD WIPER SWITCH

main84651-20031iBJ4#,FJ4#,55,HJ45197209-198007

main84651-60021iFJ4#,55,HJ45196903-197209

84730SWITCH ASSY, HEATER BLOWER

main84730-12010iFJ55196903-197309

FRONT

main84730-60020iFJ55196903-198007

REAR

main84732-60010iFJ55197309-198007

FRONT

main87290-60030iFJ4#196903-197209

FRONT & REAR

main87290-60031iFJ4#,HJ45197209-197309

FRONT

main87290-60040iFJ40..V197209-197309

REAR

main87290-60041iBJ4#,FJ4#,HJ45197309-198007

FRONT & REAR

84860SWITCH ASSY, TAIL GATE REMOTE CONTROL

main84860-60010iFJ55..VTG196903-197709

main84860-60011iFJ55..VTG197709-198007

84967BRACKET, HAZARD WARNING SIGNAL SWITCH

main84967-60020iFJ40,43,45,HJ45..RHD197109-197209

85500LIGHTER ASSY, CIGARETTE

main85500-20042iBJ4#,FJ4#,55,HJ45197209-198007

main85500-60010iFJ4#,55196903-197103

sub85500-60011

main85500-60011iFJ4#,55,HJ45197103-197209

sub85500-20042

87298BRACKET OR PANEL, HEATER SWITCH

main55352-90351iFJ55197309-198007

main87295-60060iFJ40,43,45..RHD196903-197209

87298ACOVER, HOLE (FOR HEATER SWITCH PANEL)

main55405-20020iFJ4#196903-197209

9018303019

main90183-03019

9163140620

main91631-40620

9331614008

main93316-14008

9331913012

main93319-13012

9331914010

main93319-14010

9331914025

main93319-14025

9331915012

main93319-15012

9411040600

main94110-40600

9451200600

main94512-00600

9461310600

main94613-10600

29 parts on this diagram · 10 diagrams in section
