INDICATOR

0001 1 0002 1

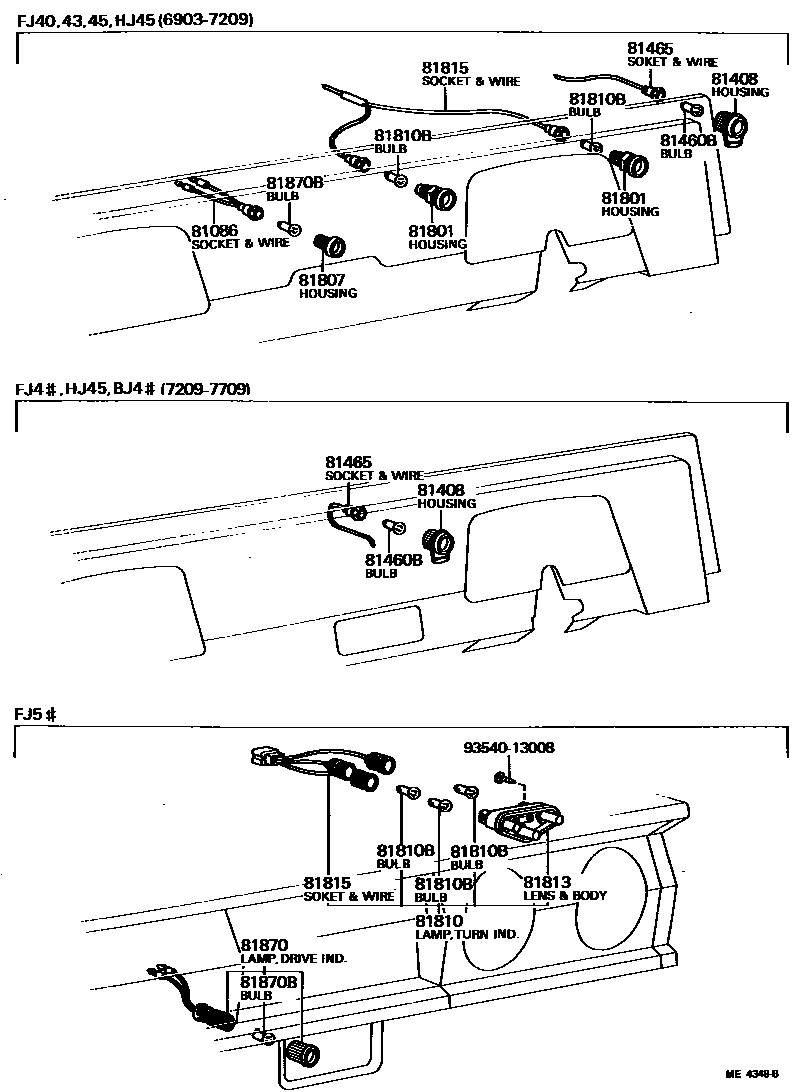

81086SOCKET AND WIRING SUB-ASSY, FRONT DRIVE INDICATOR LAMP

main81086-60010iFJ40,43,45,HJ45196903-197209

81408HOUSING SUB-ASSY, BRAKE WARNING INDICATOR LAMP

main81408-60010iFJ40197101-197709

81460BBULB, BRAKE WARNING INDICATOR LAMP

main99132-11034iFJ40..LHD197101-197109

12V 3.4W

main99132-13030iBJ4#,FJ4#,HJ45197109-197709

12V 3W

sub99132-11034

main99134-11030iBJ4#197402-197709

24V 3W

81465SOCKET AND WIRE, BRAKE WARNING INDICATOR LAMP

main81086-60010iFJ40..LHD197101-197501

main81086-60011iBJ4#,FJ4#,HJ45197501-197709

81801HOUSING SUB-ASSY, TURN SIGNAL INDICATOR LAMP

main81801-55010iFJ4#196903-197005

main81801-60010iFJ4#,HJ45197005-197209

81807HOUSING SUB-ASSY, FRONT DRIVE INDICATOR LAMP

main81806-60010iFJ40,43,45,HJ45196903-197209

81810LAMP ASSY, TURN SIGNAL INDICATOR

main81810-60041iFJ55196903-197709

main81810-60042iFJ55197709-198007

81810BBULB, TURN SIGNAL INDICATOR LAMP

main99132-11034iFJ55196908-198007

12V 3.4W

main99132-13030iFJ4#,55196903-196908

12V 3W

sub99132-11034

81813LENS AND BODY, TURN SIGNAL INDICATOR LAMP

main81811-60040iFJ55196903-197709

81815SOCKET AND WIRE, TURN SIGNAL INDICATOR LAMP

main81081-60010iFJ4#196903-197109

main81086-60010iFJ4#,HJ45197109-197209

main81815-60040iFJ55196903-197709

81870LAMP ASSY, FRONT DRIVE INDICATOR

main81860-60031iFJ55196903-197209

81870BBULB, FRONT DRIVE INDICATOR LAMP

main99132-11017iFJ40,43,45,HJ45196910-197209

12V 1.7W,12V 1.7W

main99132-11034iFJ55196908-197209

12V 3.4W,12V 3,4W

main99132-13015iFJ40,43,45196903-196910

12V 1.5W

sub99132-11017

main99132-13030iFJ55196903-196908

12V 3W

sub99132-11034

9354013008

main93540-13008

13 parts on this diagram · 2 diagrams in section
