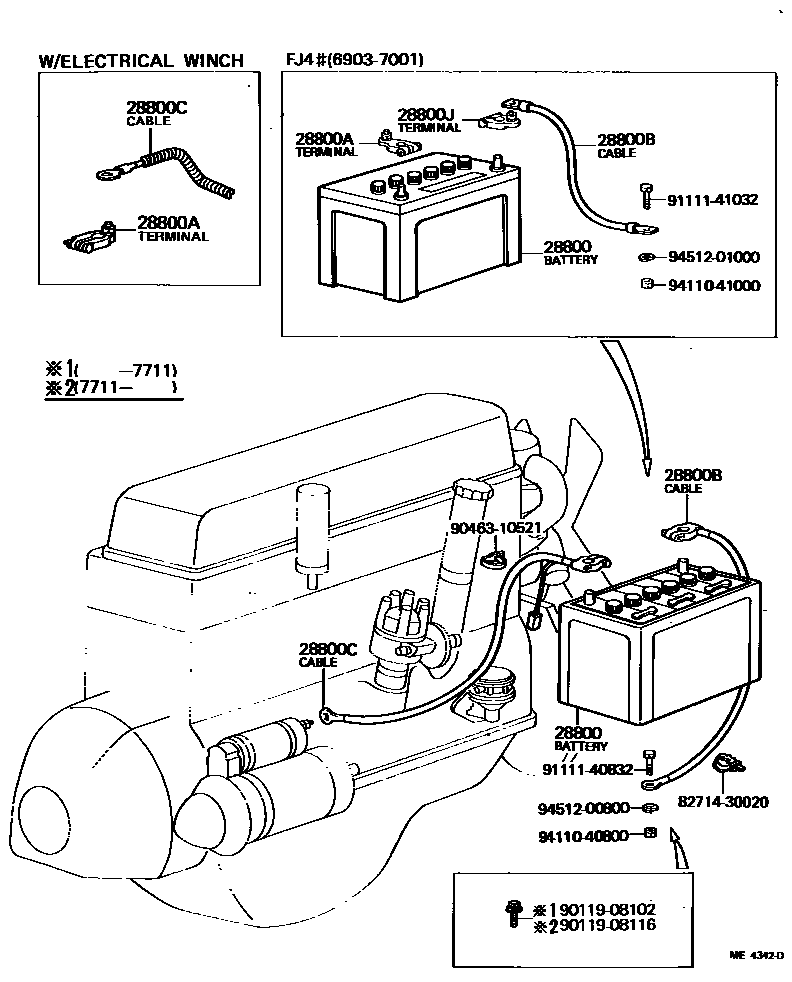

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-30081iF..FJ4#,55196903-197006

N50,N50

sub28800-30082

main28800-30082iF,2F..FJ4#,55197006-198007

48D26R,N50

sub28800-30061

main28800-30131iH..HJ45..EUR197901-198007

55D26R,N50ZL

sub28800-73010

main28800-33111iB..BJ4#197402-198007

55D26R,N50Z

sub28800-33120

main28800-42010iH..HJ45..EUR197901-198007

75D31L,N70ZL

sub28800-42020

main28800-42010i2F..FJ40..RHD..V197901-198007

75D31L,N70ZL,W/COOLER

sub28800-42020

main28800-46011iB..BJ4#196903-197904

75D31R,N70Z

sub28800-46012

main28800-46012iB..BJ4#..ARL,GEN;H..HJ45..VKC..GEN;H..HJ45..PIC..(ARL,GEN)197901-198007

75D31R,N70Z

sub28800-46050

main28800-56040i2F..FJ40..RHD..V197901-198007

48D26L,N50L,W/COOLER

sub28800-73010

28800ATERMINAL, BATTERY POSITIVE

main90982-05001iF..FJ4#196903-197001

main99142-87175iB,H,2F..BJ4#,FJ4#,HJ45197910-198007

FOR ELECTRICAL WINCH

sub82675-30020

main99142-87175iH..HJ45197204-197901

sub82675-30020

28800BCABLE, BATTERY TO GROUND

main88899-60020i2F..FJ40,45..WORB..ARL197906-198007

W/COOLER

main90982-02006iF,2F..FJ55196903-198007

main90982-02014iF..FJ4#196903-197001

sub90982-02065

main90982-02065iF,H,2F..FJ4#,HJ45197001-197901

sub90982-02103

main90982-02065i2F..FJ4#197901-198007

FOR 12V

sub90982-02103

main90982-02103iB..BJ4#197402-198007

FOR 24V

main90982-02116iB..BJ4#..ARL,GEN197507-198007

FOR 12V

main90982-02174iH..HJ45..EUR197901-198007

W/COOLER;FOR 24V

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82046-90301iH..HJ45197910-198007

FOR ELECTRICAL WINCH

main82046-90302i2F..FJ4#197910-198007

FOR ELECTRICAL WINCH

main88899-60010i2F..FJ40,45..WORB..ARL197906-198007

W/COOLER

main90982-01012iF..FJ4#196903-197001

sub90982-01097

main90982-01038iF..FJ55196903-197001

main90982-01097iF..FJ4#,55197001-197109

main90982-01128iF,2F..FJ4#197109-198007

sub90982-01292

main90982-01129iF,2F..FJ55197109-198007

main90982-01154iH..HJ45197204-197901

main90982-01168iB..BJ4#197402-197901

main90982-01291i2F..FJ4#197901-198007

W/COOLER

sub82046-90803

main90982-01293iH..HJ45..VKC..GEN;H..HJ45..PIC..(ARL,GEN)197901-198007

FOR 12V

sub90982-01294

main90982-01294iH..HJ45..EUR197901-198007

FOR 24V

main90982-01309iB..BJ4#197901-198007

main90982-01342iB..BJ4#197910-198007

FOR ELECTRICAL WINCH

28800JTERMINAL, BATTERY NEGATIVE

main90982-06001iF..FJ4#196903-197001

8271430020

main82714-30020

9011908102

main90119-08102

9011908116

main90119-08116

9046310521

main90463-10521

9111140832

main91111-40832

9111141032

main91111-41032

9411040800

main94110-40800

9411041000

main94110-41000

9451200800

main94512-00800

9451201000

main94512-01000

15 parts on this diagram · 2 diagrams in section
