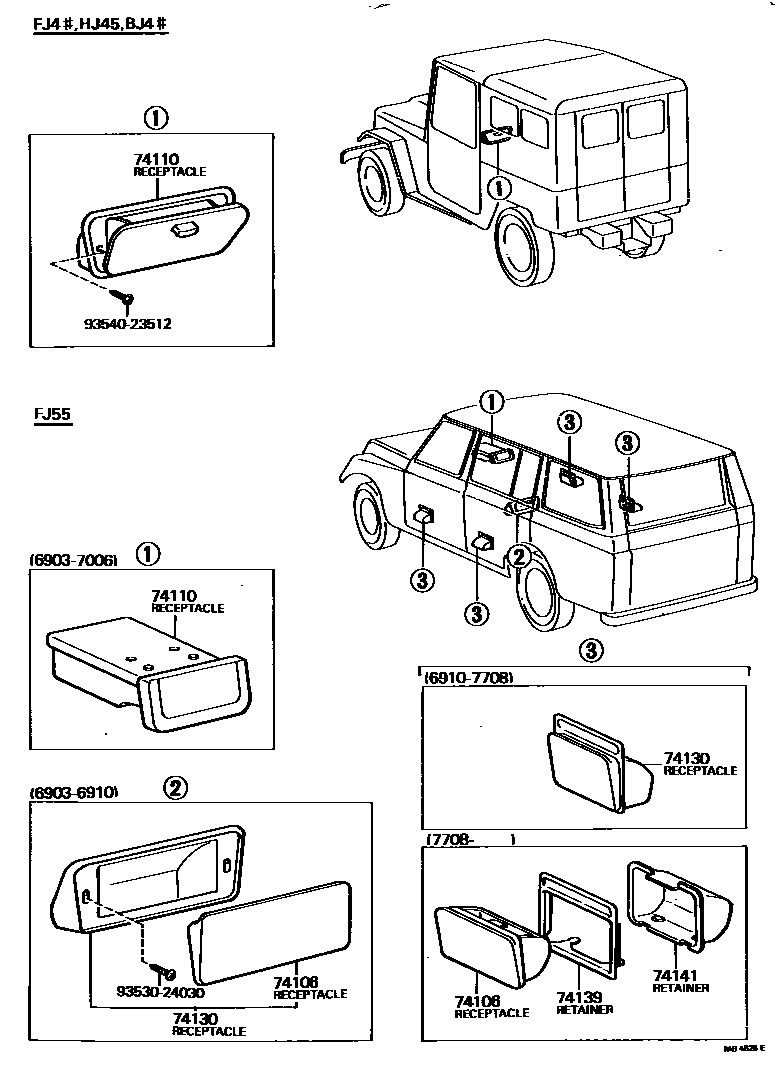

ASH RECEPTACLE

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74105-10010-01iFJ55197708-198007

BLACK

sub74105-10010

main74106-30050iFJ55196903-196910

sub74106-20010

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74110-60010iBJ4#,FJ4#,HJ45196903-198007

main74120-90351iFJ55196903-197006

main74120-90352iFJ55..LHD196910-197006

FOR W/COOLER

74130RECEPTACLE ASSY, REAR ASH

main74130-10040iFJ55197508-197708

sub74105-10010

sub74135-10030

sub74137-10030

main74130-30040iFJ55196910-197508

main74130-30050iFJ55196903-196910

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-10030iFJ55197708-198007

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030iFJ55197708-198007

9353024030

main93530-24030

9354023512

main93540-23512

7 parts on this diagram · 1 diagram in section
